－ 5 －
① Clock, Room name display
Displays the current time (☞page35) and the room
name (☞page 60).
② Icon display
Each icon is displayed when one of following settings is
going on.
When the demand
control is effective.
When setting is made
from the sub R/C.
(☞page 19)
When the
central control (Optional) is
running.
When the periodical
inspection is necessary.
(☞page 71)
During the ventilation
operation.
(☞page 34)
When ”lter sign” is up.
(☞ page 68)
When the Permission/
Prohibition setting is made.
(☞page 54)
When the peak-cut
timer is set.
(☞page 23)
When the weekly
timer is set.
(☞page 44)
③ Menu button
When setting or changing other than the following ④-⑧,
tap the menu button. Then menu items are displayed, select
one and set.
④ Change operation mode button (☞page 9)
Displays the operation mode which is selected currently.
Tap this button to change the operation mode.
⑤ Change set temp button (☞page 9)
Displays the temperature which is set currently. Tap this
button to change the set temperature.
⑥ Change flap direction button (☞page 10)
Displays the ap direction which is selected currently.
When the 3D auto ow operation is enabled, 3D auto
display will appear. Tap this button to change the ap
direction.
⑦ Change the fan speed button (☞page 13)
Displays the fan speed which is selected currently. Tap this
button to change the fan speed.
⑧ Timer button (☞page 39)
Displays simplied contents of the timer which is set
currently.
(When two or more timers are set, contents of the timer
which will be operated immediately after is displayed.)
Tap this button to set the timer.
⑨ Select the language button
Select a language to be displayed on the R/C.
⑩ Message display
Status of air conditioner operation and messages of the
R/C operations etc. are displayed.
⑪
F1
，
F2
switch function Display
Displays the function that is set for each
F1
，
F2
switch.
The function for these switches can be changed in F1/F2
function setting
(☞page 65)
＊All icons are shown for the sake of explanation.

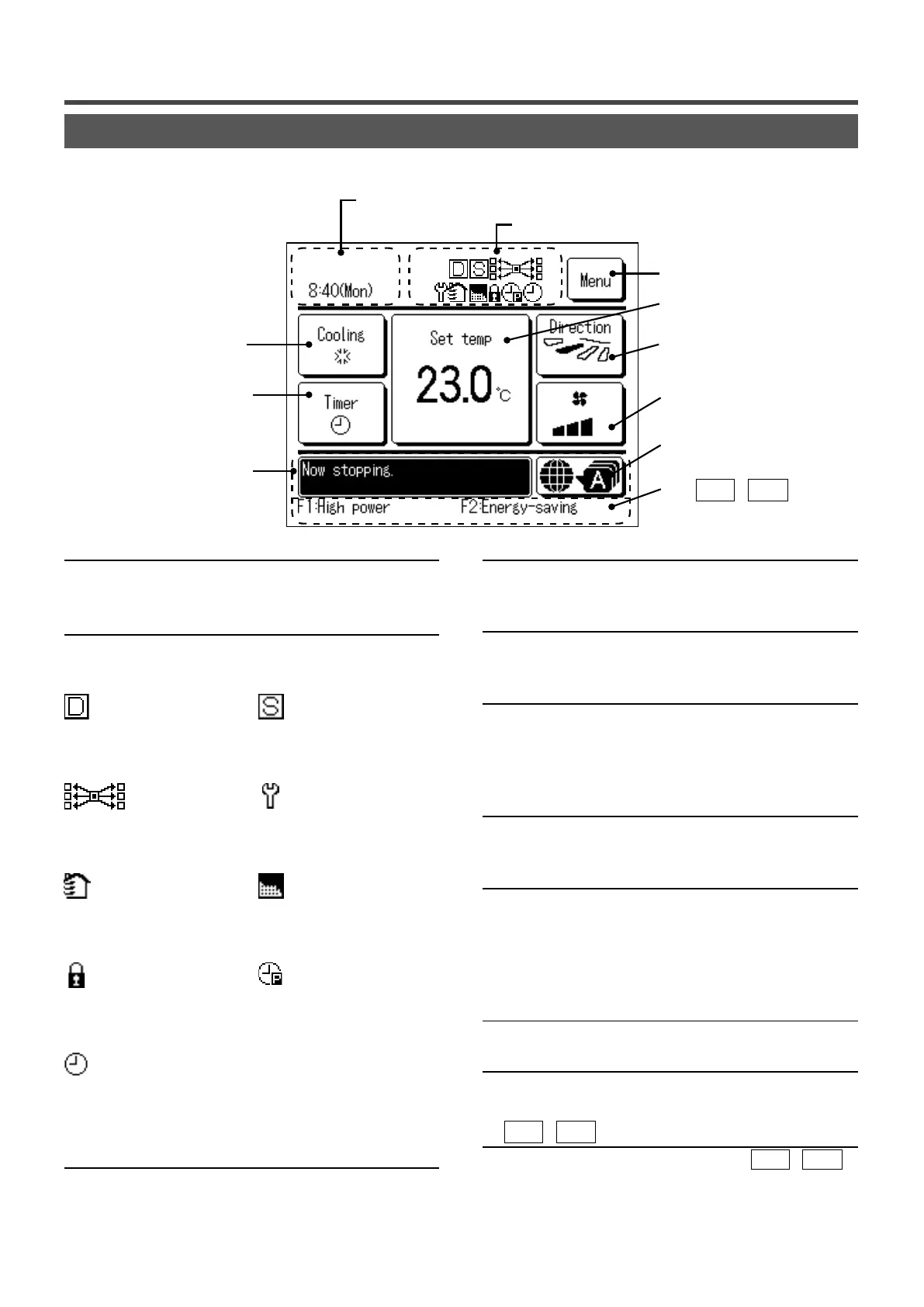

Names and functions of sections on the R/C (Display)
⑪
F1
， F2 switch
function display
① Clock, Room name display
④ Change operation
mode button
TOP screen
⑧ Timer button
② Icon display
③ Menu button
⑤ Change set temp
button
⑥ Change flap
direction button
⑦ Change the fan
speed button
⑨ Select the
language button
⑩ Message display
