4G9 ENGINE (E–W) – Alternator and Ignition System
11A-3-3
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation

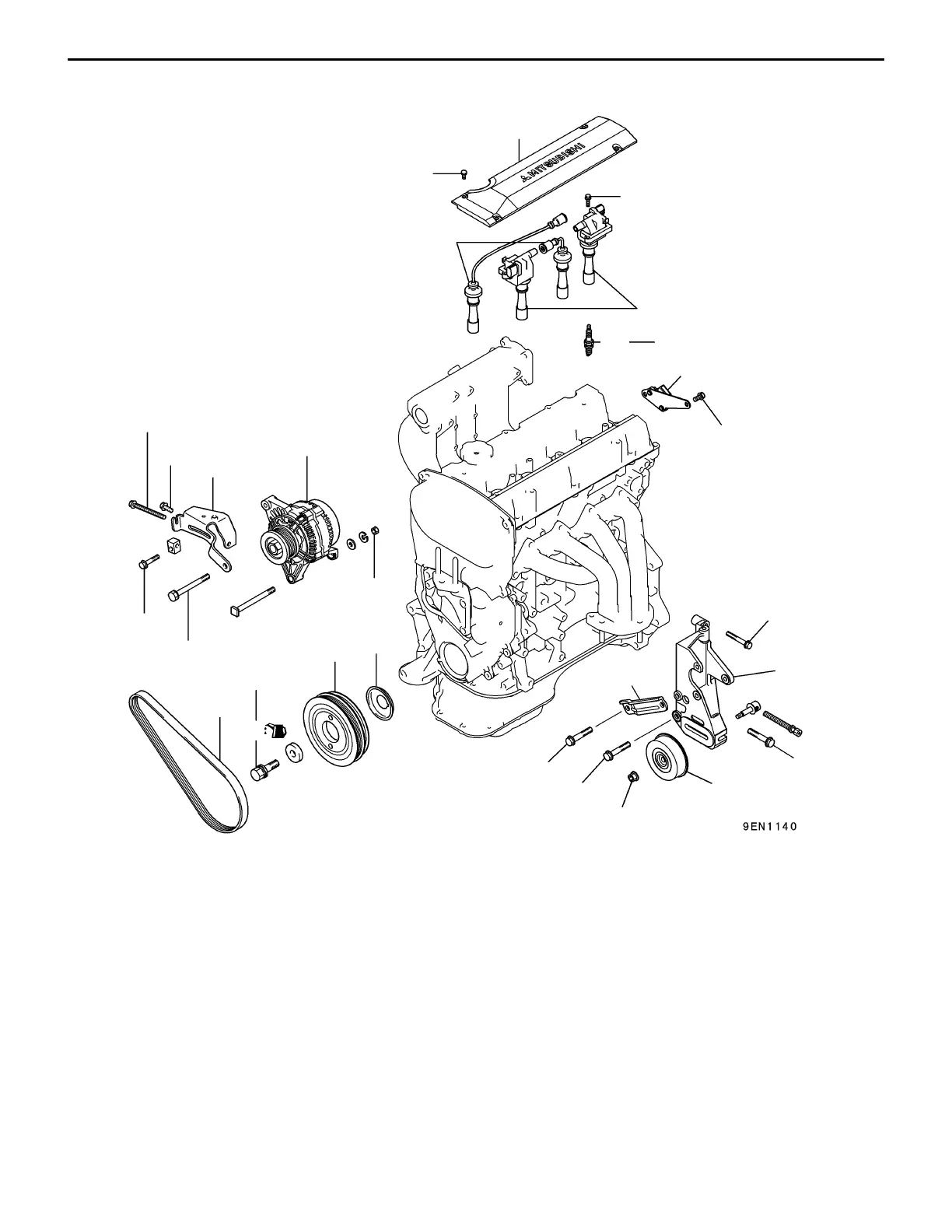

REMOVAL AND INSTALLATION <DOHC>
10 Nm
25 Nm
23 Nm
29 Nm
182 ± 4 Nm
3
2
7
8
4
1
5
6
9
3 Nm
11
23 Nm
5 Nm
23 Nm
44 Nm
10
21 Nm
12
25 Nm
13
14
44 Nm
49 Nm
44 Nm
Removal steps
1. Drive belt*
2. Alternator
3. Alternator brace
AA""BA 4. Crankshaft bolt
"BA 5. Crankshaft pulley
"BA 6. Front flange
7. Center cover
8. Ignition coil
9. Spark plug cable
10. Spark plug
11. Ignition failure sensor
12. Power steering pump pulley
13. Power steering pump bracket stay
14. Power steering pump bracket
NOTE:
*: For details of adjustment, refer to the relevant model’s
chassis workshop manual.
PWEE9502-J
E
Apr. 2002Mitsubishi Motors Corporation Revised
