Mitsubishi Lancer Evolution VI User Manual

ENGINE – Exhaust Manifold
11-32

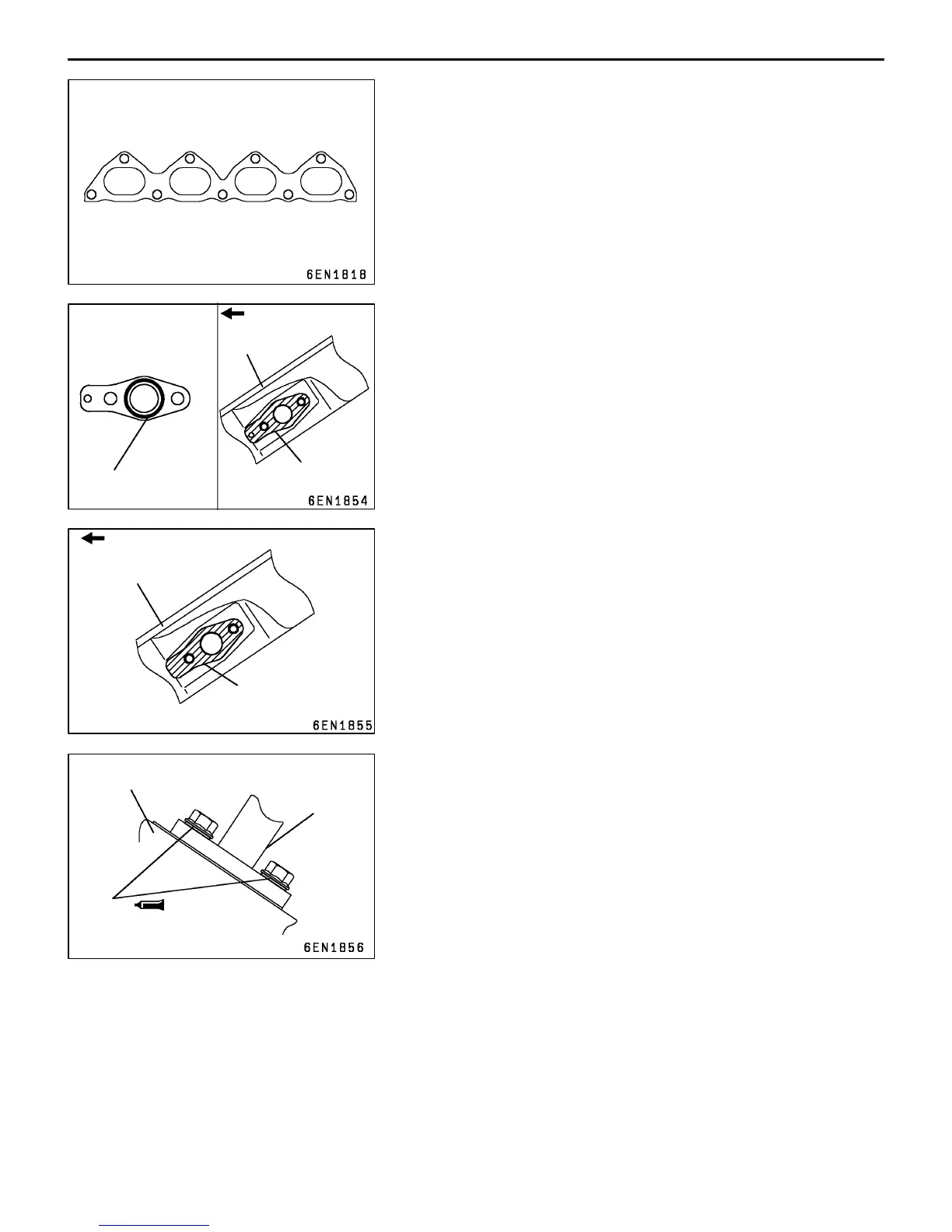

INSTALLATION SERVICE POINTS
"AA EXHAUST MANIFOLD INSTALLATION
Tighten the exhaust manifold mounting nuts to the specified
torque in the sequence given in the illustration.
"BA GASKET / OIL RETURN GASKET INSTALLATION
EVOLUTION IV AND V
Install the gasket with the silicon-printed side toward the oil
pan and with the tabbed end directed as shown.
EVOLUTION VI
(1) Install the gasket with the tabbed end directed as shown.
(2) Apply sealant to both sides of the oil return pipe gasket
and leave it for 20 minutes to dry before installing. Tighten
the mounting bolts to the specified torque.
Specified sealant:
3M
TM
AAD Part No. 8731 or equivalent
NOTE
If mounting bolts with head mark 7 have been used,
be sure to replace them with bolts having head mark
10.
12
345 6
789
Timing belt side
Oil pan
Oil return
pipe gasket
Silicon print
Timing belt side
Oil pan
Oil return
pipe gasket
Oil pan
Oil return
pipe
Gasket
