MECHANICAL STRUCTURE

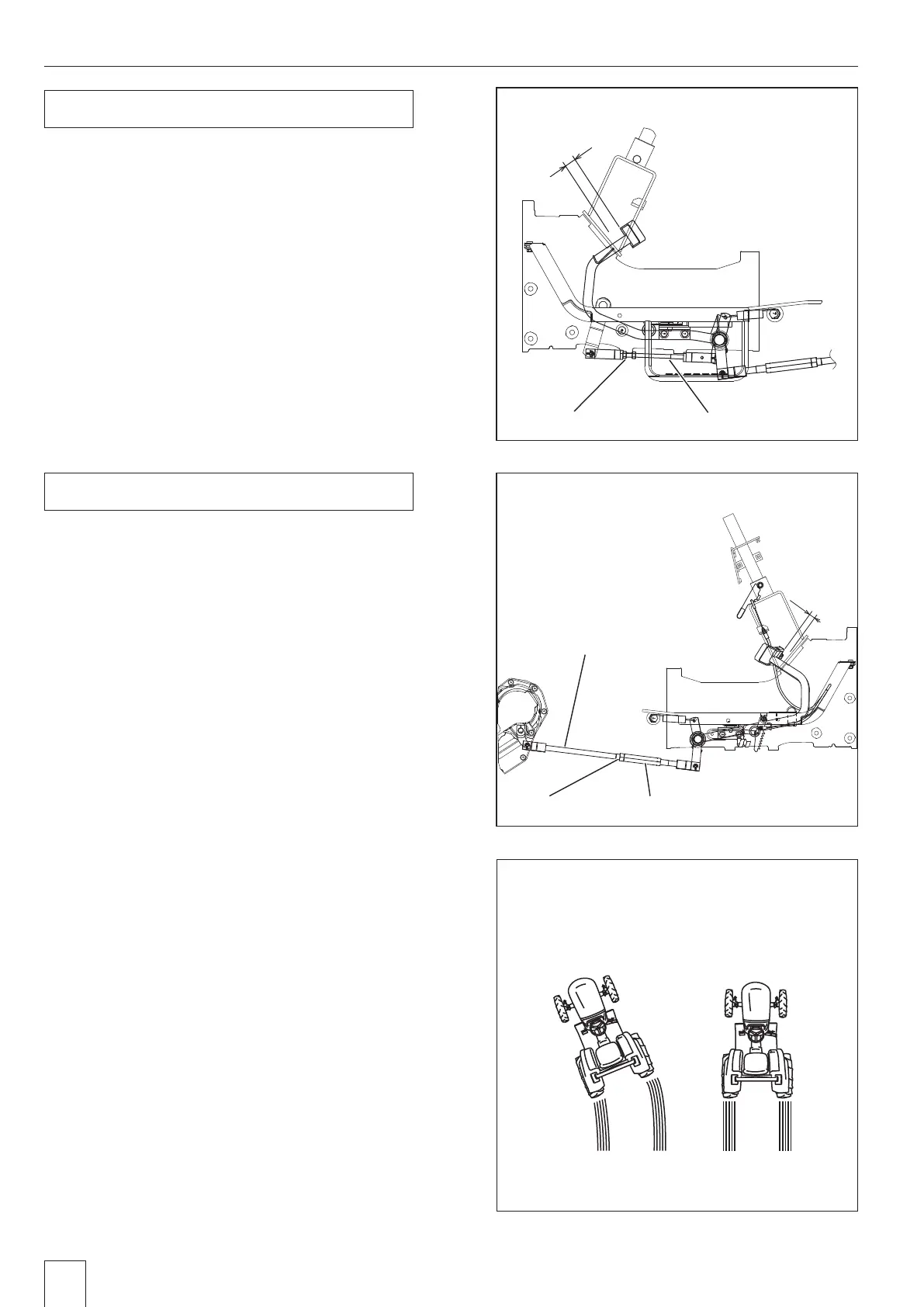

2. Clutch Adjustment
1) Amount of clutch pedal play (A) should be
adjusted 20-30mm by clutch rod.
After adjusted it, make sure to tight lock nut.
3. Brake adjustment
1) Amount of brake pedal play (A) should be
adjusted 35-45mm by joint (B).
Then tighten nut (C) ¿ rmly.
Both side of brake should be adjusted same
manner and height of pedal must be equal.
2) After proceed 1), try actual running test to make
sure both side of brake perform same level.
And if not, adjust again.
(A
)
(
A
)
[One Side Braking] [Normal]
Clutch Rod
Lock Nut
Brake Rod
Nut (C)
Joint (B)
