Mitsubishi MELDAS HS Series User Manual

Chapter 4 Option and Peripheral Devices
4–13

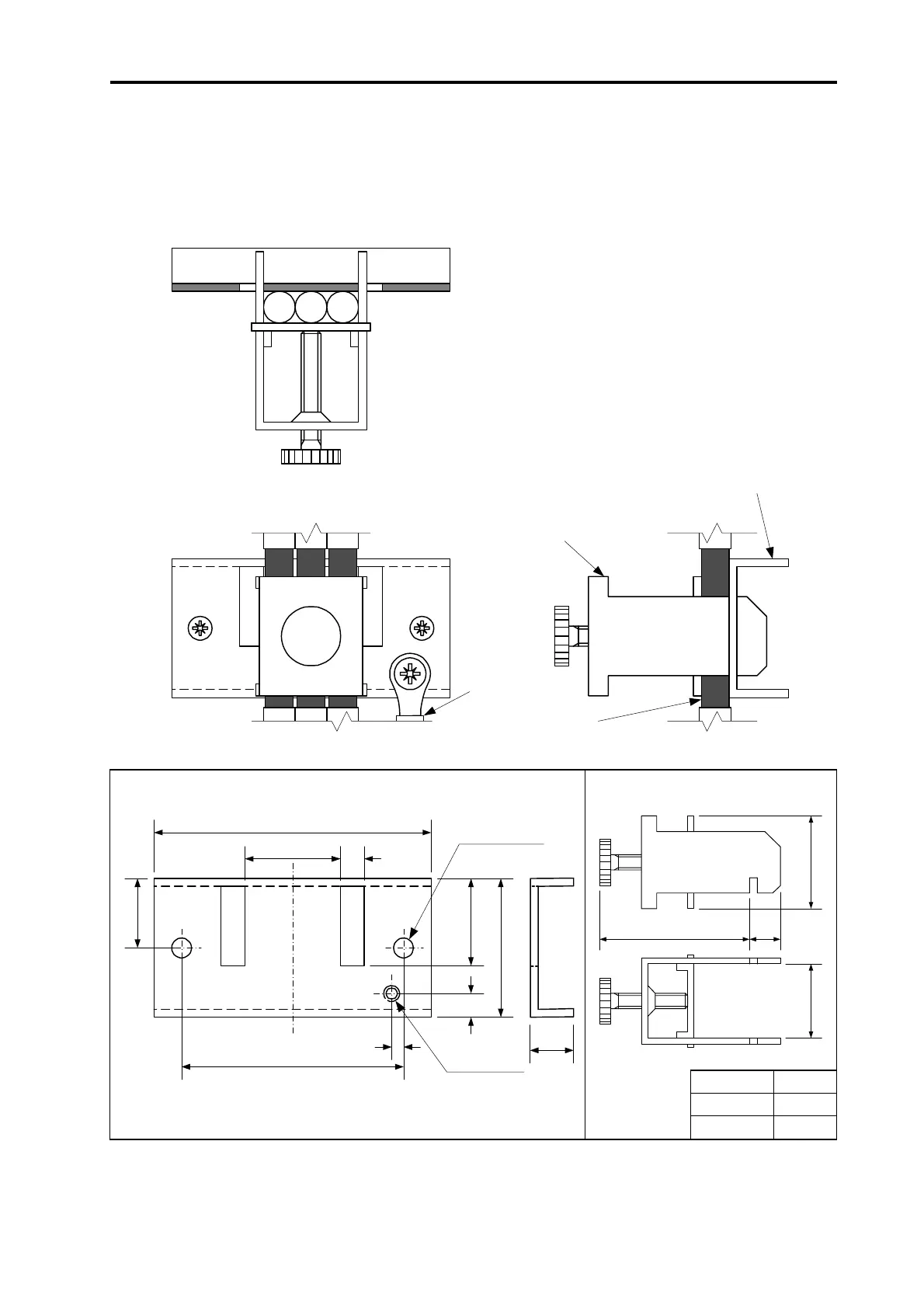

4-1-4 Cable clamp fitting
Use the following types of grounding plate and cable clamp fitting to strengthen the noise resistance
of the communication cable. The grounding plate can be installed onto the terminal block cover of the
I/F unit (HS-IF-6). Peel part of the cable sheath as shown in the drawing to expose the shield sheath,
and press that section against the grounding plate with the cable clamp fitting.
Shield sheath
Cable clamp
fitting A, B
Grounding plate
Grounding bar
Cable clamp fitting outline
30
10MAX L
24
L
Fitting A 70
Grounding plate (E) outline
70
24
56
6
3
35
6 22
17.5
M4 screw *
2-φ5 hole
Installation hole
11
* Always wire the grounding wire from the grounding plate to the
cabinet grounding plate.
Fitting B 45
