2 - 2
MELSEC-Q
2 SYSTEM CONFIGURATION
2.1 General image of system

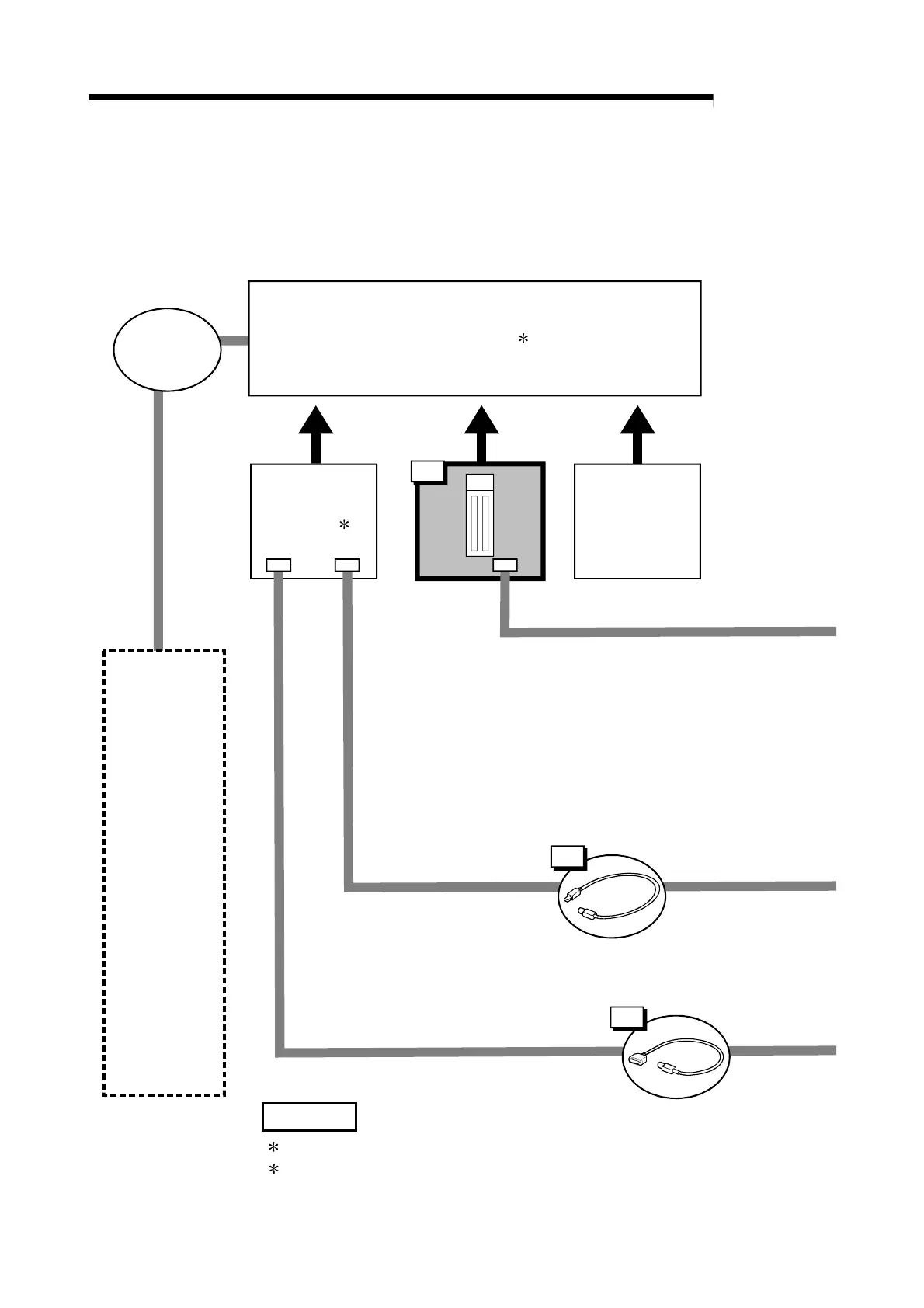

The general image of the system, including the QD75, CPU module and peripheral
devices is shown below.
(The Nos. in the illustration refer to the "No." in Section 2.2 "Component list".
CPU
module 1
Positioning
module
I/O
module
Extension
system
RS-232 cable
1
4
USB cable
5
Extension
cable
Main base unit 2
REMARK
1 Refer to Section 2.3 "Applicable system" for the CPU modules that can be used.
2 Refer to the CPU module User's Manual for the base units that can be used.
