Connecting a Component Video source device
Examine your Video source device to determine if it has a set of unused Component Video output sockets available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
To connect the projector to a Component Video source device:
1. Take a Component Video to VGA (D-Sub) adaptor cable and connect the end with 3 RCA type connectors to the
Component Video output sockets of the Video source device. Match the color of the plugs to the color of the
sockets; green to green, blue to blue, and red to red.
2. Connect the other end of the Component Video to VGA (D-Sub) adaptor cable (with a D-Sub type connector) to
the D-SUB/COMP. IN socket on the projector.

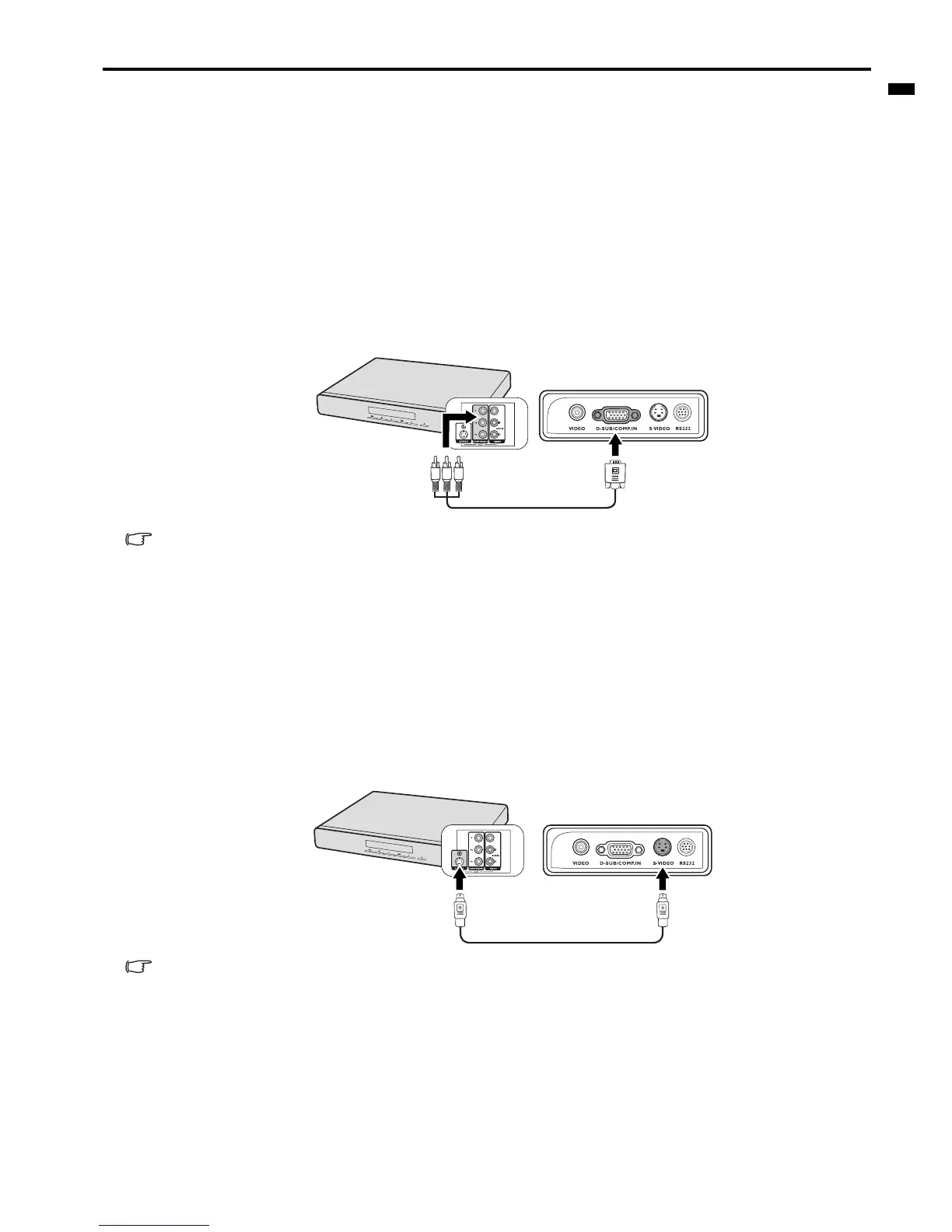

The final connection path should be like that shown in the following diagram:
If the selected video image is not displayed after the projector is turned on and the correct video source has been selected,
check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected
correctly.
Connecting an S-Video source device
Examine your Video source device to determine if it has an unused S-Video output socket available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
To connect the projector to an S-Video source device:
1. Take an S-Video cable and connect one end to the S-Video output socket of the Video source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.
The final connection path should be like that shown in the following diagram:
• If the selected video image is not displayed after the projector is turned on and the correct video source has been
selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have
been connected correctly.
• If you have already made a Component Video connection between the projector and this S-Video source device, you need
not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer
picture quality. See "Connecting Video source devices" on page 14 for details.
