Diagnostics B
High-Definition DVR DCX3510-M • Installation Manual 54
365-095-17066-x.1

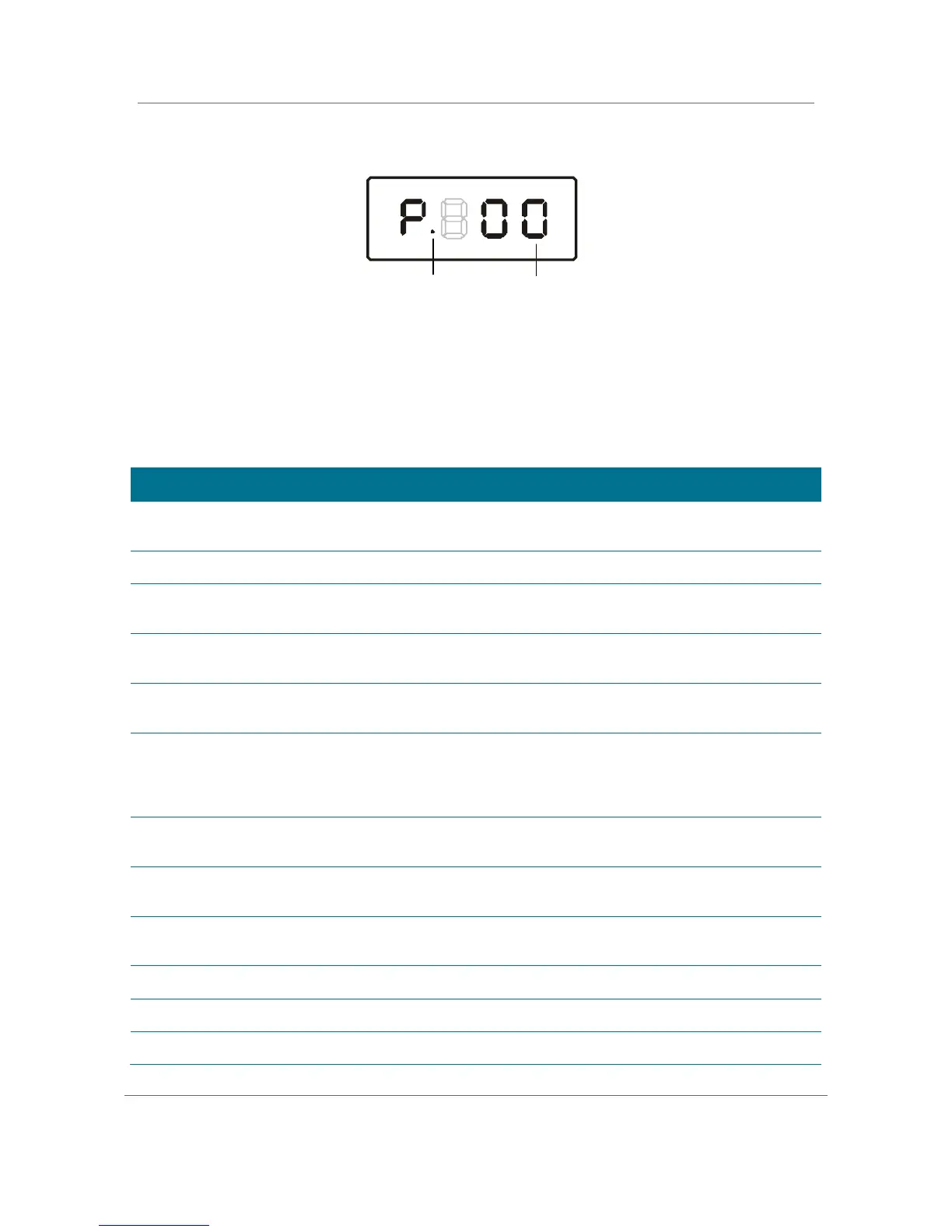

Figure 24: Front panel display for Purchase Status diagnostic
Table 11: Purchase Status Diagnostic Field Descriptions
Field Description
Unsent
The number of purchases in the DCX3510-M remaining to be polled. It can be an integer
from 0 to 63.
Unack
The number of reports that have not been acknowledged by the controller. It is an integer.
Last Seq
Num
The last acknowledged sequence number of a purchase sent by the controller. It is a 16-
bit, unsigned hexadecimal number.
Last RB Time
The last time the DCX3510-M attempted to report back purchases to the controller, in
GPS seconds.
IPPV Status
If IPPV is enabled, the IPPV status indicator is on. If IPPV is disabled, the IPPV status
indicator is off.
“Last Prepare for Poll Command” sequence number and time of the last prepare for poll
request command that was sent by the controller. Note that each requesting process
maintains an independent sequence of poll requests to uniquely identify the poll
responses.
Prep ACK
“Last Prepare for Poll Acknowledge” sequence number and time of the last Report
Purchase request sent by the controller.
Poll Request
Sequence number and time of the last send poll buffer command that was sent by the
controller.
Poll
Acknowledge
Sequence number and time of the last Poll Acknowledge message sent by the controller.
Stack Unit
Unit used in purchase processing.
Show Count
Count used in purchase processing.
Credit Total
Credit used for purchase processing.
On when IPPV is
Number of
unsent purchases
