Diagnostics B
High-Definition DVR DCX3510-M • Installation Manual 80
365-095-17066-x.1
employed on the 1394 interface
• Copy Control - level of copy control in the 1394 content. Valid values include:
‘Copy Free’, ‘Copy Once’, ‘No Copies’, ‘Copy Never’.
• Nodes - indicates if the set-top terminal is the cycle master node, the IRM node,
and/or the root node on the 1394 bus.
• Loop Detected - indicates if a loop exists on the 1394 bus.
• EUI – device identifier
• Number of connected devices and associated device Identifier
• MPEG4 Passthrough – indicated if MPEG4 content is passed through to the 1394
device. The user can enable or disable MPEG4 Passthrough by pressing the
MENU key while on the 1394 Status OSD diagnostics screen (selection mode is
indicated by ‘>>>’), then pressing SELECT key to toggle between Enable and
Disable.
DVR/Hard Drive Status
This three-page diagnostic displays the DVR and hard-drive status.

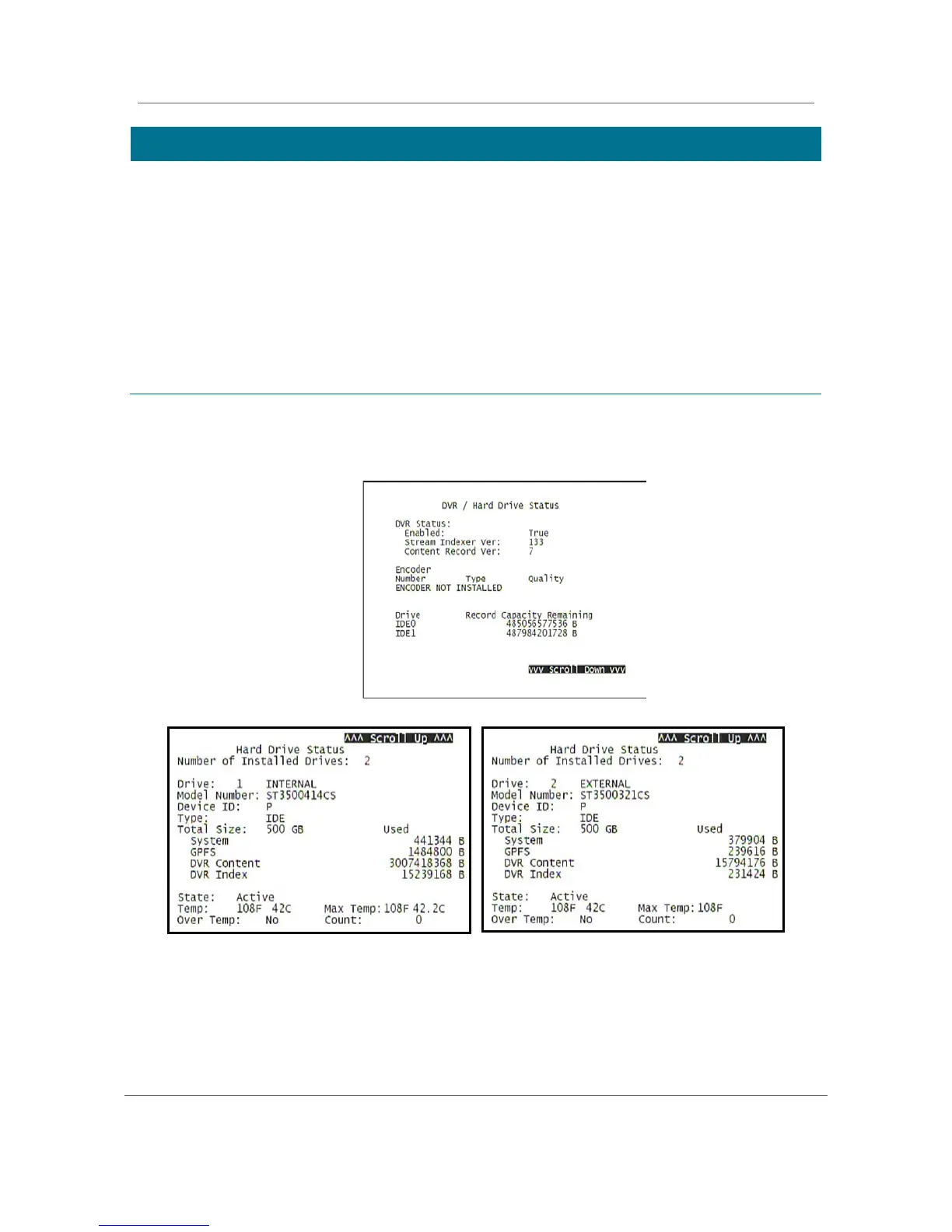

Figure 41: DVR/Hard Drive Status Diagnostic Screens
