4 Product description

Maschinenfabrik Reinhausen GmbH 2020 314453918/14 EN ETOS

Cable duct for digital inputs and outputs

If you would like to connect digital inputs and outputs of the DIO assembly, a

cable duct is available in the control cabinet to route the cable harness.

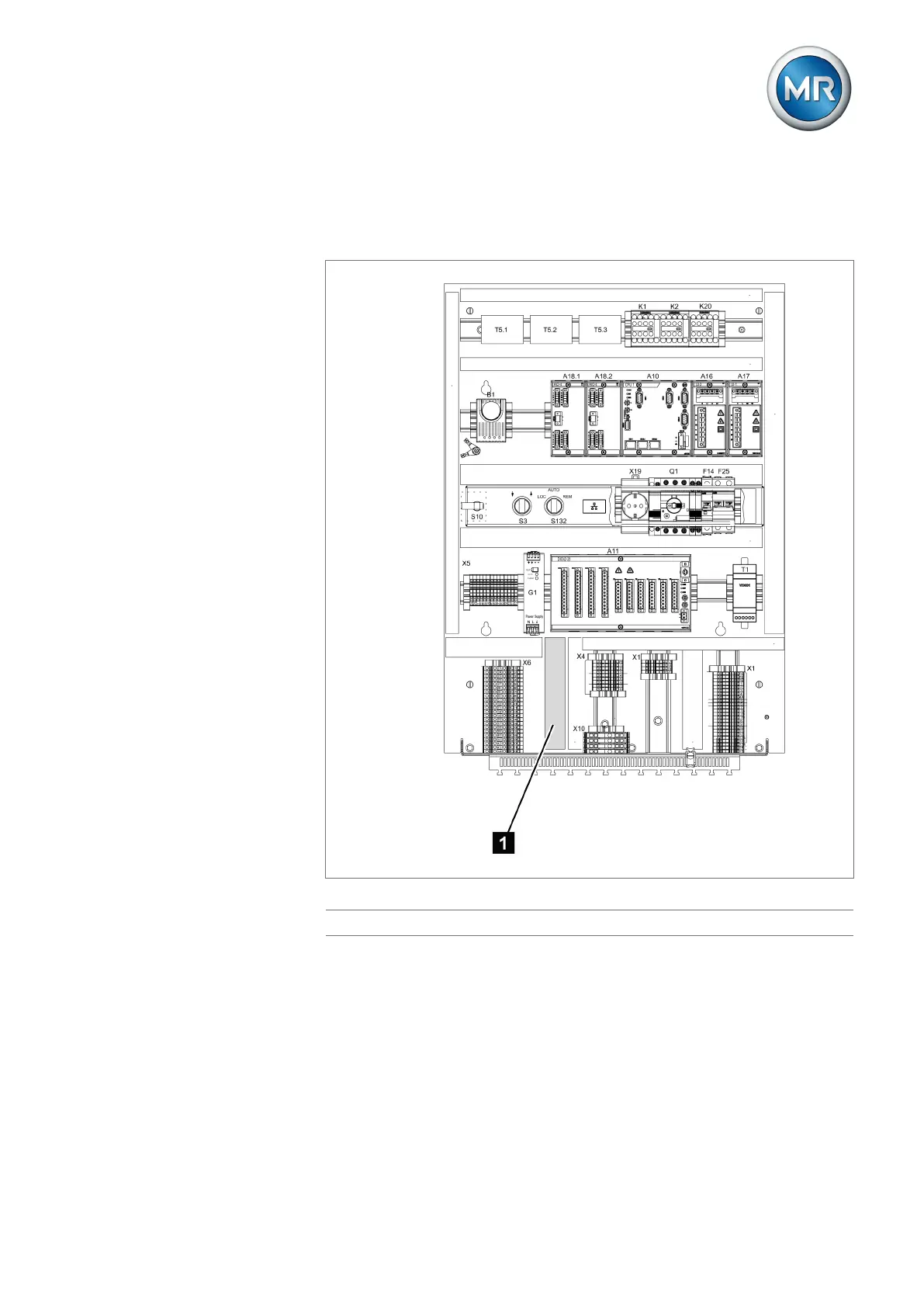

Figure9: Cable duct for digital inputs and outputs (example of control cabinet structure)

1 Cable duct in the control cabinet

4.5.4 ISM® assemblies

4.5.4.1 CPU (central processing unit) I

The CPU I assembly is the central processing unit for the device. It contains

the following interfaces:

▪ Internal system interface RS232 (COM1)

▪ Serial interface RS232/485 (COM2)

Questions and Answers:
