MR ETOS TD User Manual

15 Technical data
Maschinenfabrik Reinhausen GmbH 2020338 4453918/14 ENETOS
®
TD
15.3.3 Digital inputs and outputs
DIO 28-15 DIO 42-20 DIO 42-20 HL
Inputs (plug-based
electrical isolation)
Quantity 28 42
Logical0 0...10V AC (RMS)
0 to 10VDC
0...40V AC (RMS)
0 to 40VDC
Logical1 18...260V AC (RMS)
18 to 260VDC
170...260V AC (RMS)
170 to 260VDC
Input current Typ. 1.3mA (regardless of U)
Simultaneity factor At 70°C and U ≥ 230V: max. 50%
Outputs (floating re-
lay outputs)
Number (number of
change-over contacts in
parentheses)
15(9) 20(12)
Contact load capacity Min.: 5V, 10mA
Max. AC: 230VAC; 5A
Max. DC: See diagram
Simultaneity factor Up to 60°C: 100%, > 60°C: -5%/K
Table133: Technical data for the DIO 28-15 and DIO 42-20 assemblies
10
20
30
40
50
100
V
300
0.1 0.2 0.5 1 2 5 10 20A
U
I

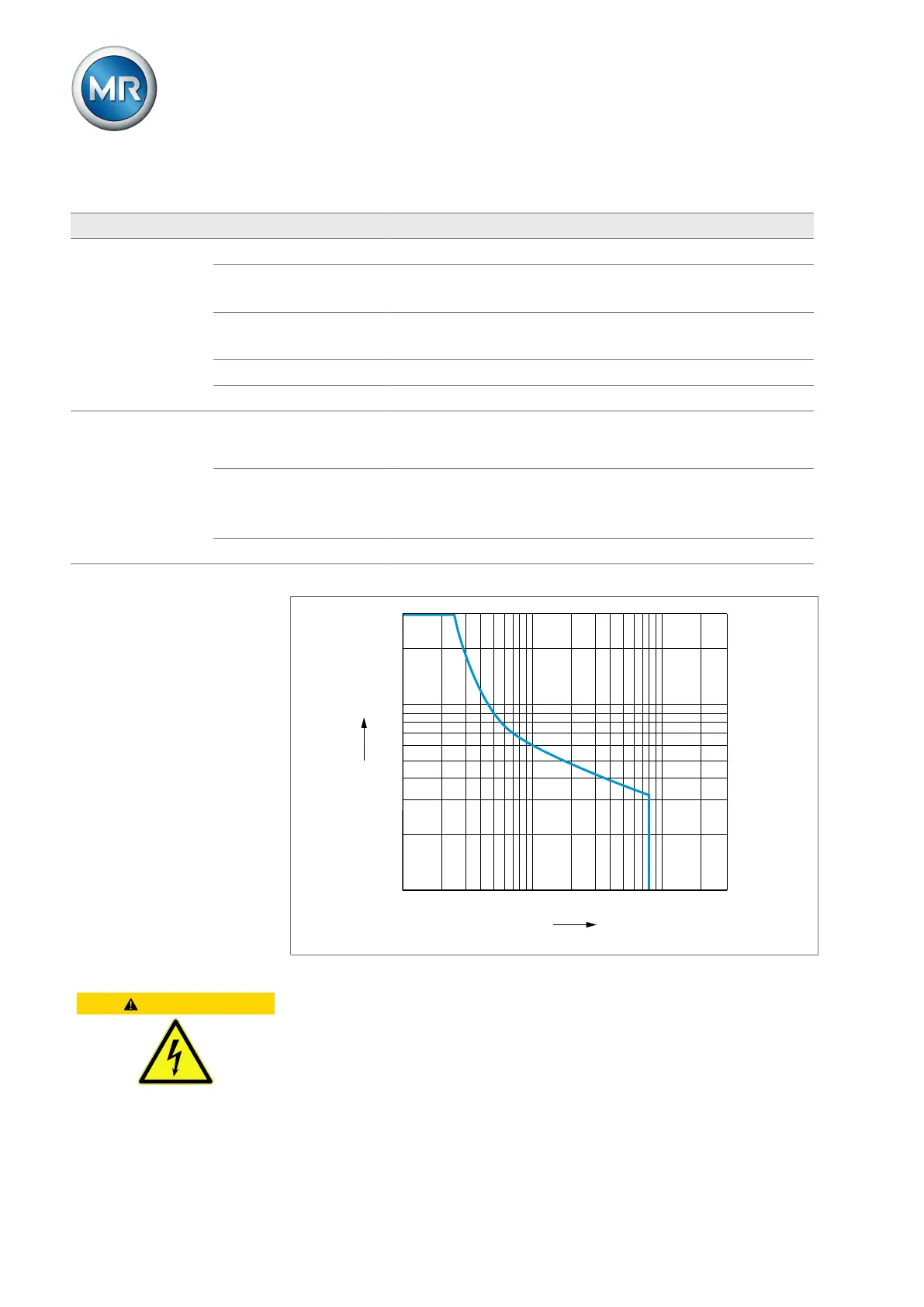

Figure233: Contact load capacity of digital outputs with resistive load
CAUTION
Electric shock!
The inputs of the DIO assembly have plug-based electrical isolation. A mix-
ture of voltage ranges (e.g. extra low voltage and low voltage) or various
phases within a plug can lower the protection against electric shock.
► Use the same voltage ranges within a plug.
► Use the same phase within a plug.
