Ru-4
MS-7576 Системная плата
RE SET
CM OS
Cl r
SO C KET A M3

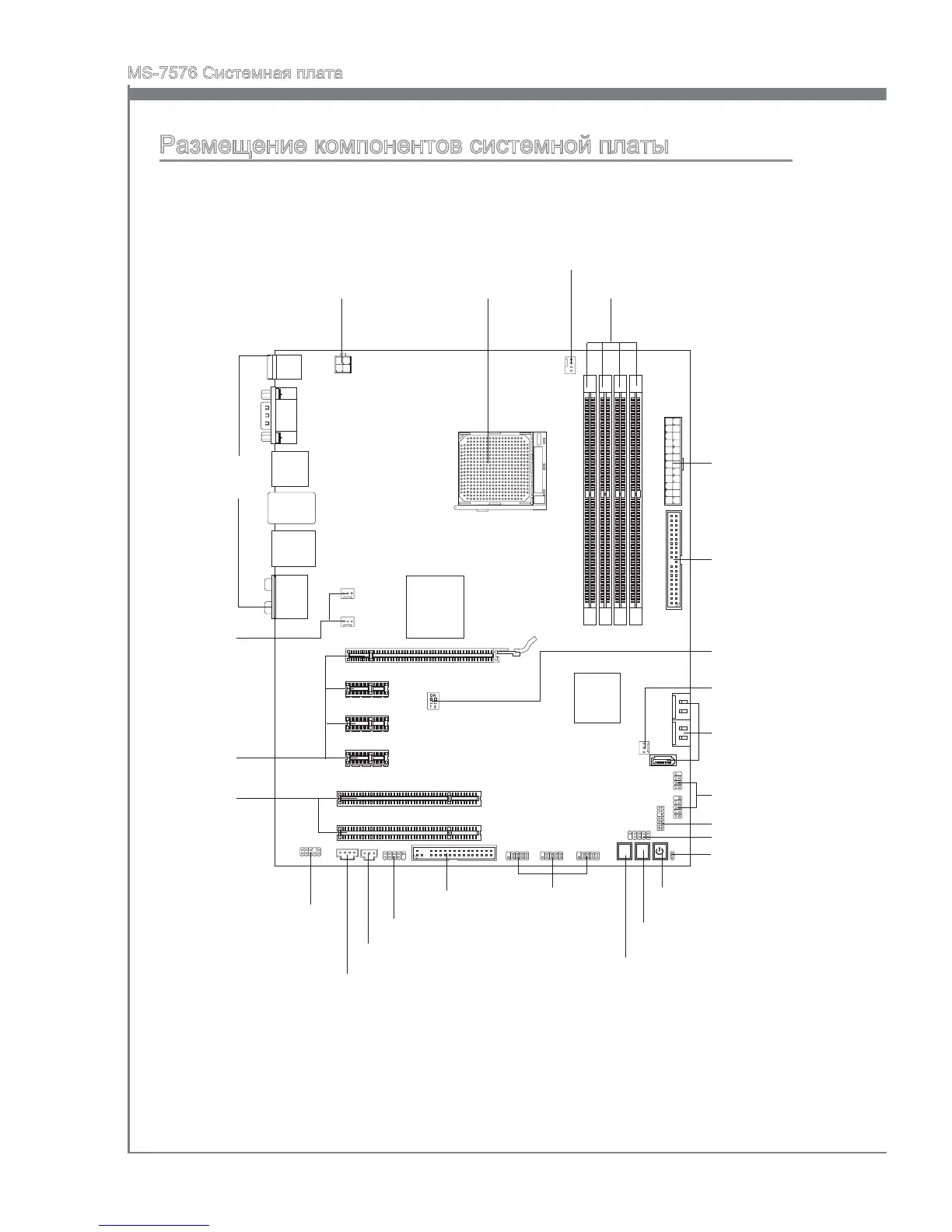

Размещение компонентов системной платы
Задняя
панель,
Ru-12
CPU, Ru-6
DDR3, Ru-9
JPWR1, Ru-11
PWR1, Ru-11
FDD1, Ru-14
IDE1, Ru-14
EZ OC Switch, Ru-21
CPUFAN1, Ru-16
SYSFAN3, Ru-16
SYSFAN1/2,
Ru-16
PCIE, Ru-22
PCI, Ru-24
JAUD1, Ru-18
JCD1, Ru-15
JSP1, Ru-16
J1394_1, Ru-17
JUSB1~3, Ru-18
SATA1~5, Ru-15
JFP1, JFP2, Ru-17
JTPM1, Ru-19
JCOM1, Ru-19
POWER1, Ru-20
CLR_CMOS1, Ru-20
RESET1, Ru-20
JCI1, Ru-15
