MSI B150M NIGHT ELF User Manual

22
Rear I/O Panel

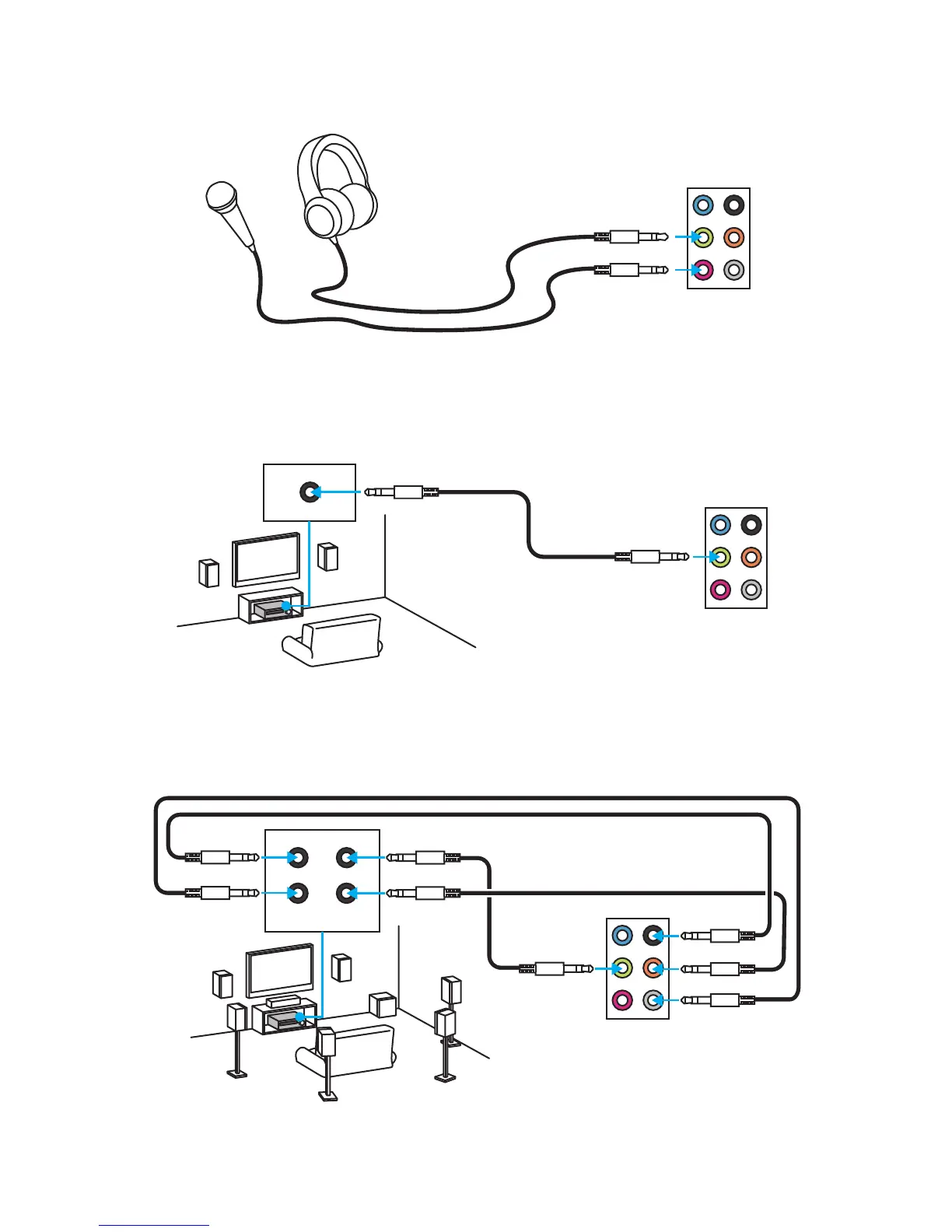

Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
Audio jacks to 7.1-channel speakers diagram
AUDIO INPUT
AUDIO INPUT
Rear Front
Side Center/
Subwoofer

MSI B150M NIGHT ELF Specifications

General

Socket	LGA 1151
Chipset	Intel B150
Form Factor	Micro ATX
Memory Slots	4 x DIMM
Maximum Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
SATA 6Gb/s	6
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892
LAN	Realtek RTL8111H Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Memory Speed	2133 MHz
M.2	1 x M.2 slot
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
