MS-7636 Manboard ▍
Manboard
Hook
Important
Read the CPU status n BIOS.
Whenever CPU s not nstalled, always protect your CPU socket pn wth the plastc
cap covered (shown n Fgure 1) to avod damagng.
Manboard photos shown n ths secton are for demonstraton of the CPU/ cooler n
-
stallaton only. The appearance of your manboard may vary dependng on the model
you purchase.
Please refer to the documentaton n the CPU fan package for more detals about the
CPU fan nstallaton.
•
•
•
•

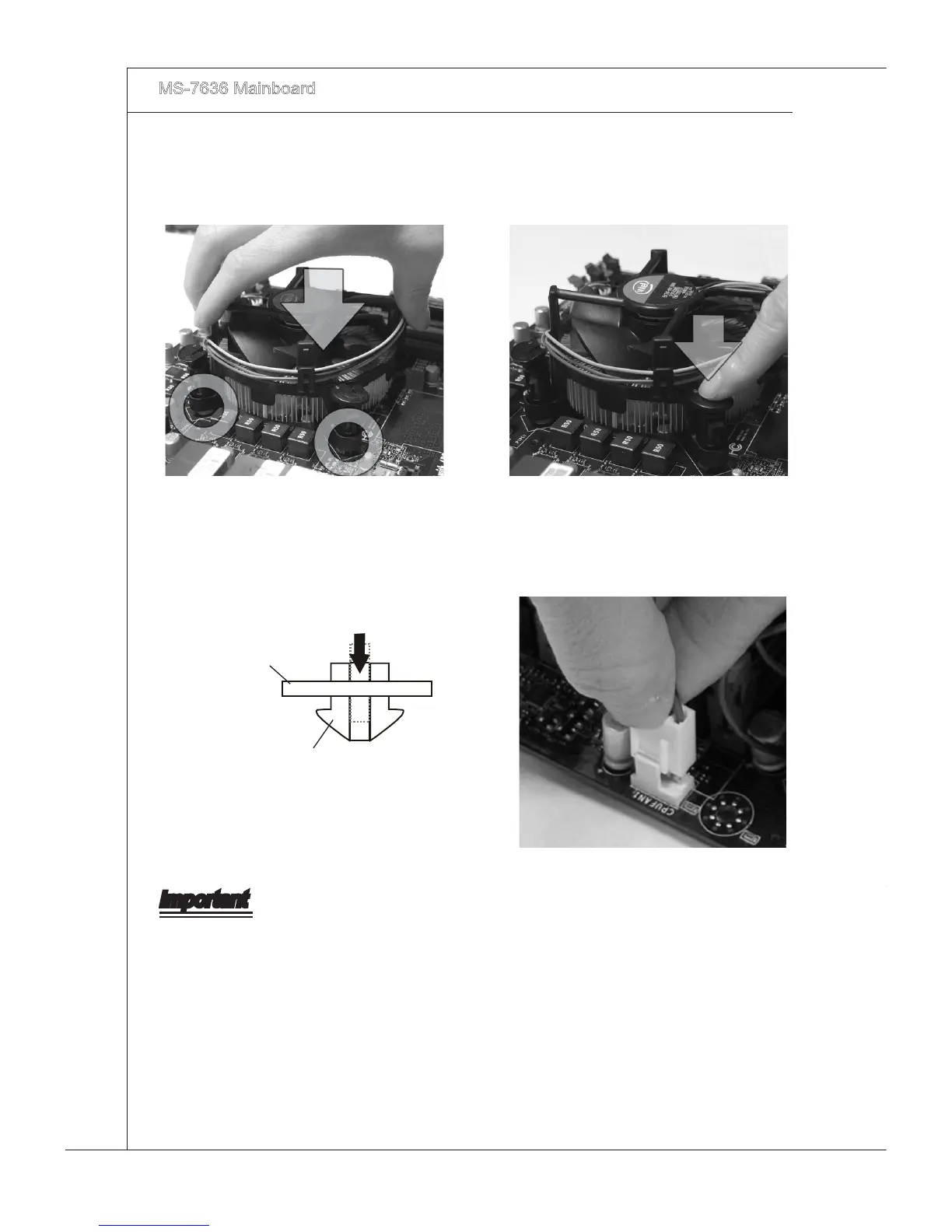

Algn the holes on the manboard wth
the heatsnk. Push down the cooler
untl ts four clps get wedged nto the
holes of the manboard.
9. Press the four hooks down to fasten
the cooler.
10.
Turn over the manboard to con󰘰rm
that the clp-ends are correctly n
-
serted.
11. Fnally, attach the CPU Fan cable to
the CPU fan connector on the man-
board.
12.
