9

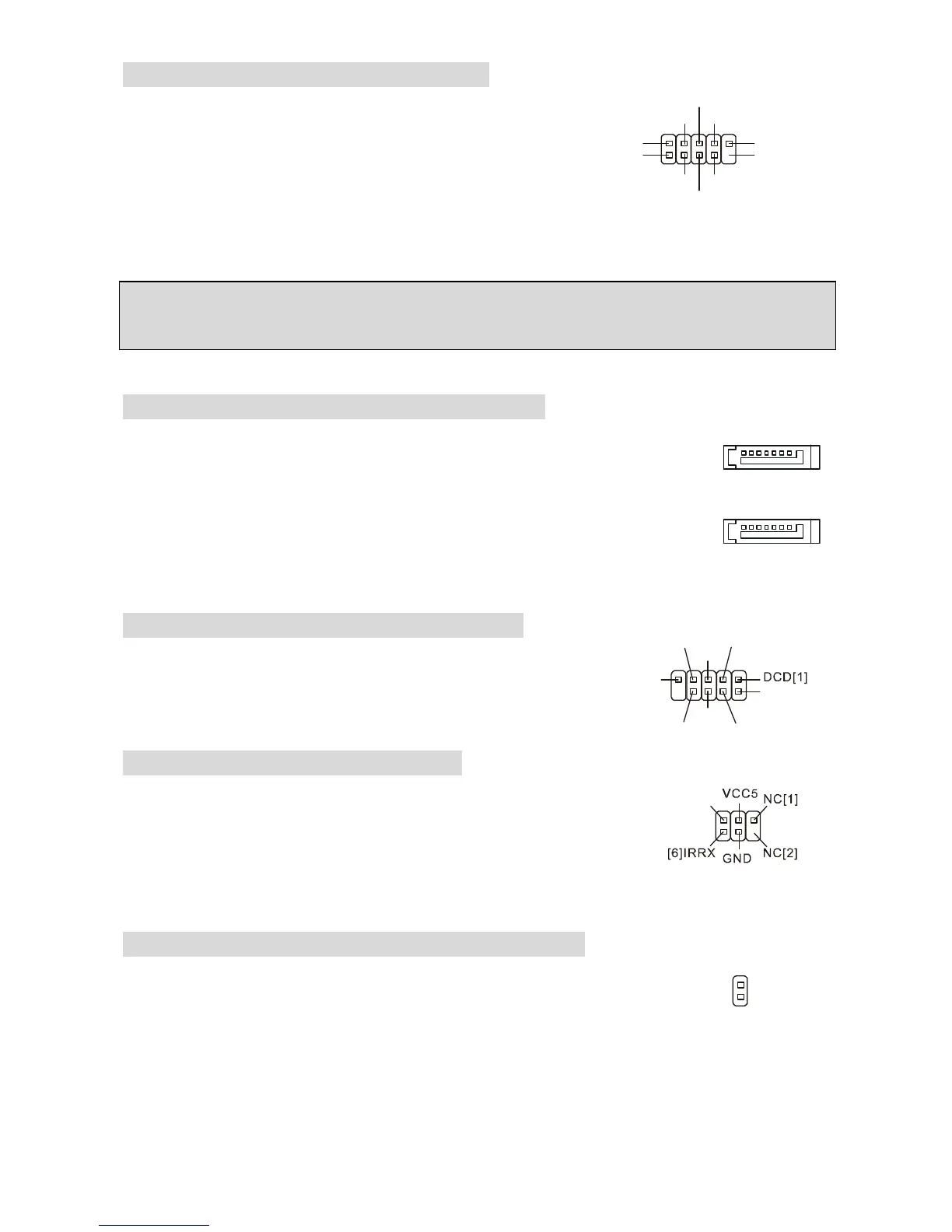

Front USB Connector: JUSB1/JUSB2
The mainboard provides two standard USB 2.0 pin headers
JUSB1&JUSB2. USB2.0 technology increases data transfer
rate up to a maximum throughput of 480Mbps, which is 40
times faster than USB 1.1, and is ideal for connecting high-speed USB interface peripherals such
as USB HDD, digital cameras, MP3 players, printers, modems and the like.
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly, or it may cause some damage.
Serial ATA HDD Connectors: SATA1/SATA2
The mainboard provides dual high-speed Serial ATA interface ports. The ports
support 1
st
generation Serial ATA data rates of 150 MB/s and are fully compliant
with Serial ATA 1.0 specifications. Each Serial ATA connector can connect to 1
hard disk drive.
Serial Port Connector: JCOM1 (optional)
The mainboard provides one serial port header for you to connect
secondary serial devices.
IrDA Infrared Module Header: JIR1
The connector allows you to connect to IrDA Infrared module. You must
configure the setting through the BIOS setup to use the IR function.
JIR1 is compliant with Intel?Front Panel I/O Connectivity Design Guide.
Chassis Intrusion Switch Connector: JCASE1
This connector is connected to 2-pin connector chassis switch. If the Chassis is
open, the switch will be short. The system will record this status. To clear the
warning, you must enter the BIOS setting and clear the status.
(2)VCC
USB1- GND
GND
USB0-
