Hardware Setup

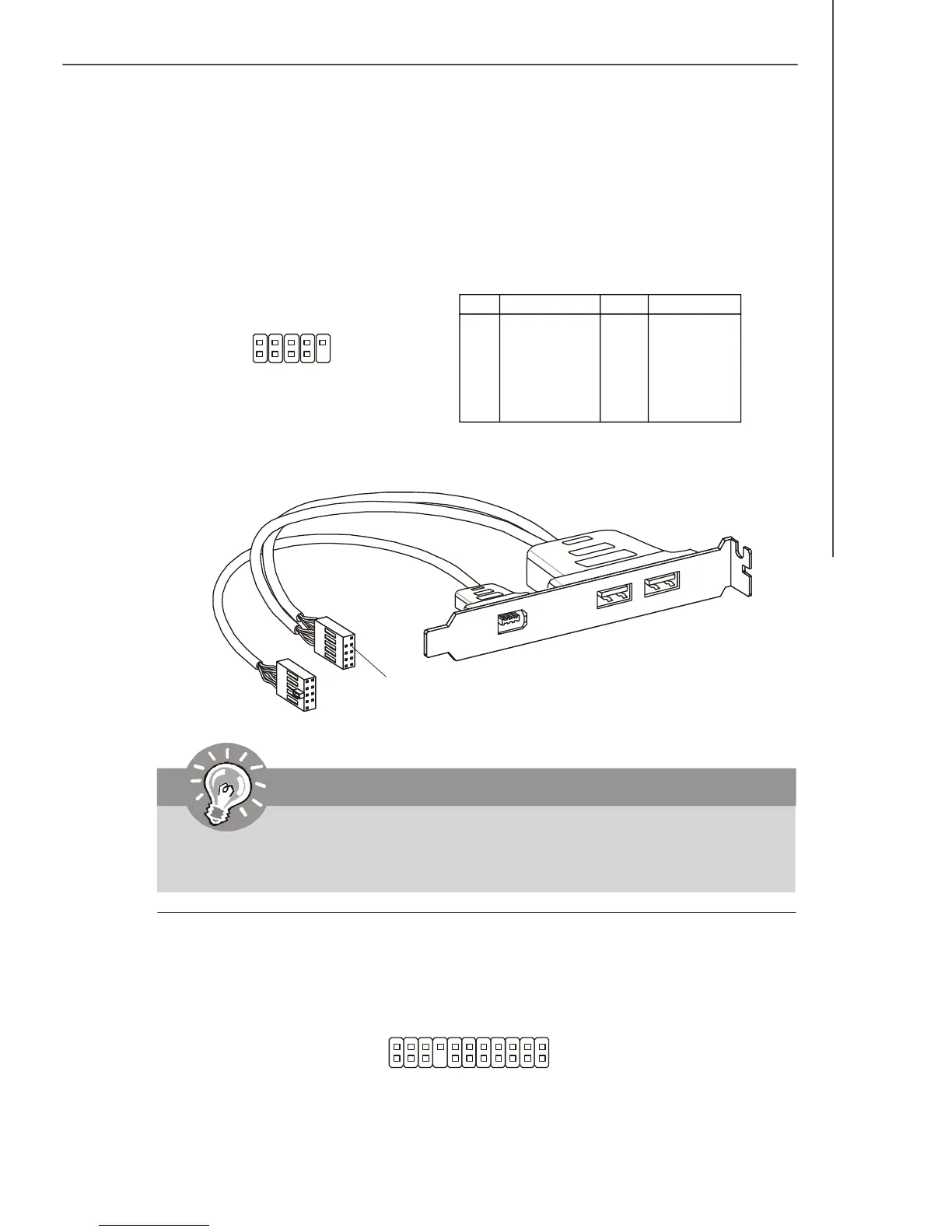

Front USB Connector: JUSB1 / JUSB2 / JUSB3
This connector, compliant with Intel
®
I/O Connectivity Design Guide, is ideal for con-
necting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC
Pin Definition
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.
1394+USB Bracket
(Optional)
1
2
9
10
JUSB1/2/3
VoIP Card Connector: JSLIC1 (optional, for ALC888T only)
This connector connects to the VoIP card. Please refer to the instruction of the VoIP
card.
JSLIC1
1
2
21
22
connect the YELLOW connector to JUSB1/2/3
