MSI MEG X570 ACE User Manual

47
BIOS Setup

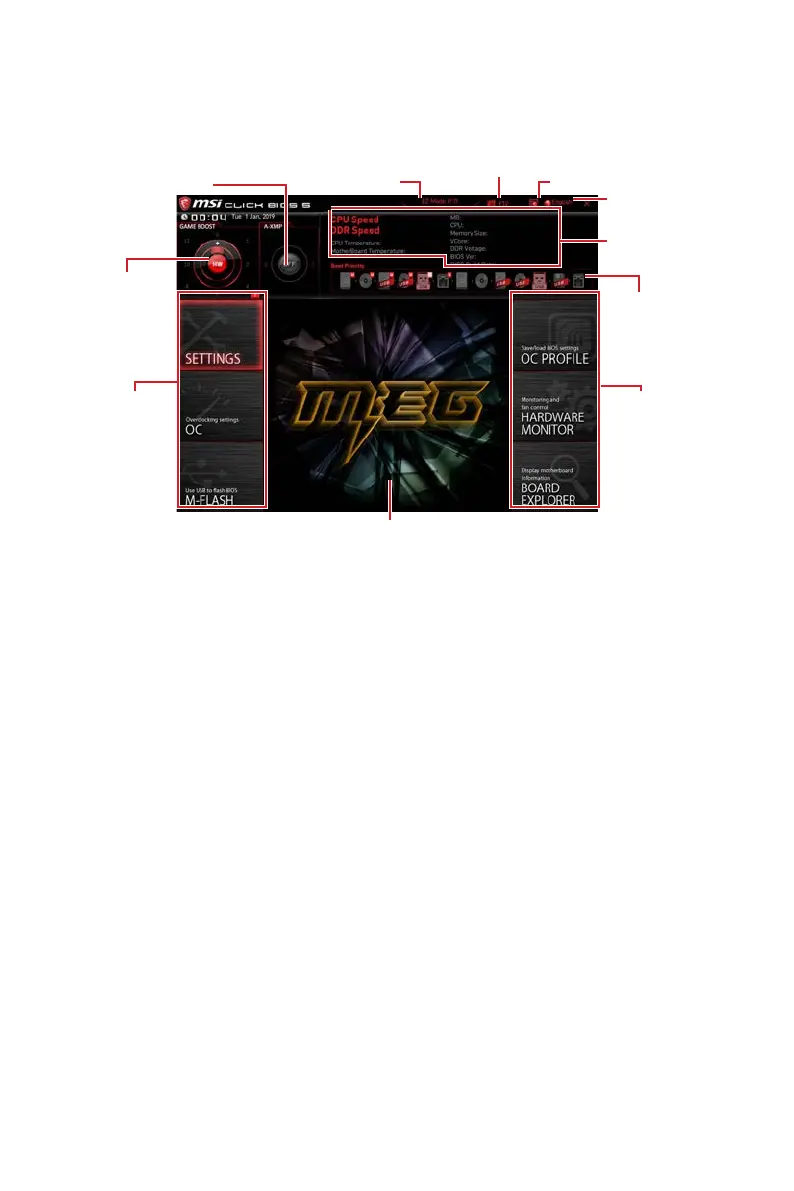

Advanced Mode
Press Setup Mode switch or F7 function key can switch between EZ Mode and
Advanced Mode in BIOS setup.
A-XMP switch
GAME BOOST
switch
System
information
Boot device
priority bar
BIOS menu
selection
Language
Search
Screenshot
Setup Mode switch
Menu display
BIOS menu
selection
y BIOS menu selection - the following options are available:
 SETTINGS - allows you to specify the parameters for chipset and boot devices.
 OC - allows you to adjust the frequency and voltage. Increasing the frequency may
get better performance.
 M-FLASH - provides the way to update BIOS with a USB flash drive.
 OC PROFILE - allows you to manage overclocking profiles.
 HARDWARE MONITOR - allows you to set the speeds of fans and monitor voltages
of system.
 BOARD EXPLORER - provides the information of installed devices on this
motherboard.
y Menu display - provides BIOS setting items and information to be configured.

MSI MEG X570 ACE Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10 Pro x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3466, 3733, 3866, 4000, 4133, 4400, 4600 MHz
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA III
DirectX version	12.0
Parallel processing technology support	2-Way CrossFireX, 3-Way CrossFireX
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of M.2 (M) slots	3
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel WGI211AT, Realtek RTL8125
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
