MSI MEG Z390 GODLIKE User Manual

34
Overview of Components

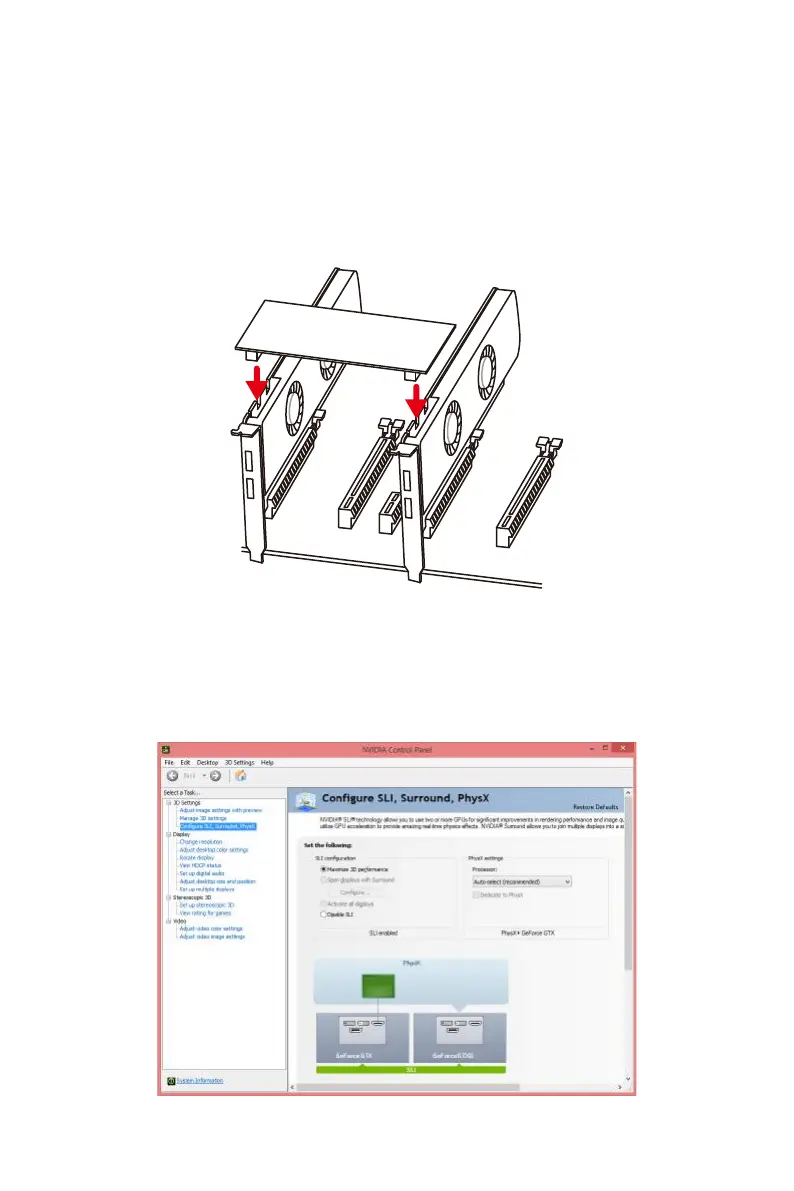

Installing SLI graphics cards
For power supply recommendations for SLI configurations, please refer to the user
guide of your graphics card to make sure you meet all the system requirements.
To install SLI graphics cards:
1. Turn off your computer and disconnect the power cord, install two graphics cards
into the PCI_E1 and PCI_E4 slots.
2. Connect the two cards together using the SLI Bridge Connector.
3. Connect all PCIe power connectors of the graphics cards.
4. Reconnect the power cord, power up the computer and install the drivers and
software included in your graphics card package.
5. Right-click the Windows desktop and select NVIDIA Control Panel from the menu,
click on Configure SLI, Surround, PhysX in the left task pane and select Maximize
3D performance in the SLI configuration menu, and then click Apply.

MSI MEG Z390 GODLIKE Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Audio chip	Realtek ALC1220
Component for	PC
Motherboard chipset	Intel Z390
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Number of mounting holes	9
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4500, 4600 MHz
Number of M.2 (M) slots	3
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	2-Way SLI, 4-Way CrossFireX
BIOS type	UEFI AMI
ACPI version	6.1
BIOS memory size	128 Mbit
USB 2.0 connectors	2
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Killer E2500
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Ethernet interface type	Gigabit Ethernet
Cables included	SATA

Weight and Dimensions

Depth	272 mm
Width	305 mm
