MSI MS-7357 User Manual

En-11
English

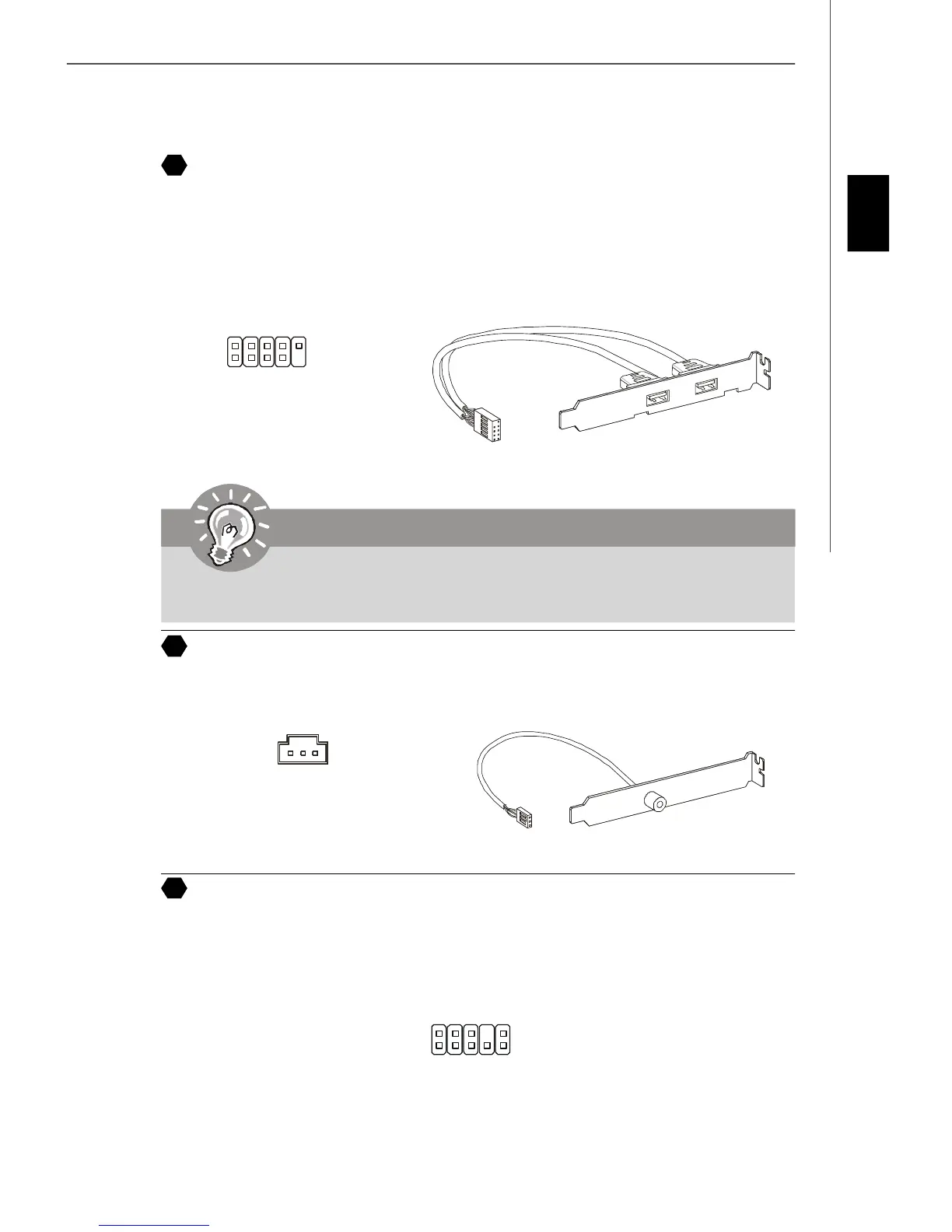

Front USB Connector (Yellow)
This connector, compliant with Intel
®
I/O Connectivity Design Guide, is ideal for con-
necting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.
Important
Note that the pins of VCC and GND must be connected correctly to avoid possible
damage.
10
Front Panel Audio Connector (Azalia Spec)
This connector allows you to connect the front panel audio and is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
12
USB 2.0 Bracket
(Optional)
S/PDIF-Out Connector Connector
This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format)
interface for digital audio transmission.
SPDIF Bracket (Optional)
11
VCC USB1- USB1+ GND USBOC
VCC
USB0-
USB0+
GND
Key (no pin)
2
1
10
9
VCC
SPDIF_out
GND
LINE out_JD
MIC_JD
Front_JD
MIC _L
MIC _R
LINE out_R
LINE out_L
Ground Presence#
NC(No pin)
2
1
10
9
