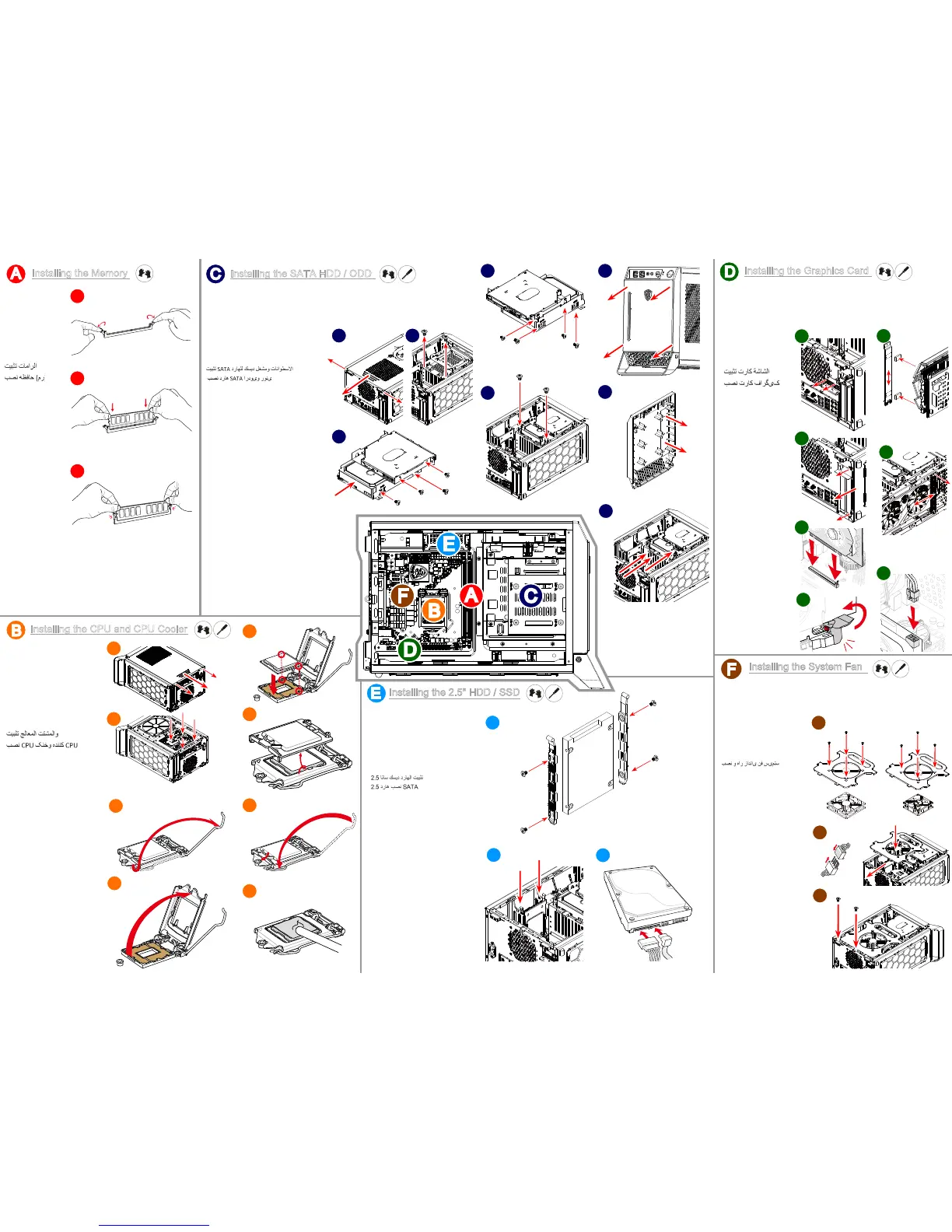

MSI Nightblade X2 User Manual

A
Installing the Memory
A-1
A-2
A-3
Installing the SATA HDD / ODD
M2
M2
#6-32 Flat
#6-32 Flat
Remove the ODD mylar from the front cover.
C
#6-32 Flat
#6-32 Flat
Connect the SATA and power cables.
M2
M2
#6-32 Flat
#6-32 Flat
C-1 C-2
C-3
C-4
C-5
C-6
C-7
C-8
Installing the System Fan
F
T5
120mm or 92mm
T5 T5
T5
T5
T5
F-1
F-2
#6-32 Flat
#6-32 Flat
F-3
This PC provides an optional system fan for better heat
dissipation, especially when your graphics card power
consumption is over 280W. Either 92mm or 120mm system
fan is available.
A
C
D
B
E
F
Installing the Graphics Card
D
Adjust the supporter when
installing a long graphics card.
D-1
D-2
D-3
D-4
D-5
D-7
Adjust the sponge to avoid
the viberation caused by the
supporter and graphics card.
D-6
安裝記憶體
安装内存
メモリの装着
메모리 설치
Memasang Memori
Gắn Bộ nhớ vào
ติดตั้งหน่วยความจำา
Instalar la memoria
Installer les mémoires
Speicher installieren
Установка памяти
Installare la Memoria
Hafızayı Takma
Instalace pamětí
Memória teleptése
Instalowanie pamięci
Instalando memória
Het geheugen installeren
Inštalácia pamätí
Instalarea memoriei
Instaliranje memorije
Installera Minnet
Installation af hukommelsen
Muistin asentaminen
Installere minne
Mälu paigaldamine
Atmiņas uzstādīšana
Diegimas Atmintis
安裝SATA硬碟/ 光碟機
安装SATA硬盘/ 光驱
SATA HDD / ODDの装着
SATA HDD / ODD 설치
Memasang HDD SATA / ODD
Gắn Ổ đĩa cứng SATA và ổ đĩa quang vào.
ติดตั้งสาย SATA สำาหรับ Harddisk และ Optical Drive
Instalar unidades SATA HDD/ODD
Installation du disque dur Sata et du lecteur de disque optique
Festplatte und ODD installieren
Установка SATA HDD / ODD
Installare l' HDD / Unità Ottica SATA
SATA Sabitdisk / Optik Sürücüyü Takma
Instalace SATA disku/mechaniky
SATA HDD / ODD telepítése
Instalowanie dysków SATA HDD / ODD
Instalando SATA HDD / ODD
De SATA HDD/ODD installeren
Inštalácia SATA disku/mechaniky
Instalarea hard disk-ului / unitatii optice
Instaliranje SATA HDD / ODD
Installera SATA HDD/ODD
Installation af SATA HDD / ODD
SATA-kiintolevyn/optisen aseman asentaminen
Installere SATA HDD / ODD
SATA HDD / ODD paigaldamine
SATA HDD/ODD uzstādīšana
Diegimas SATA HDD / ODD
安裝顯示卡
安装显示适配器
グラフィックスカードの挿入
외장 그래픽카드 설치
Memasang Graphics Card
Gắn card đồ họa vào
ติดตั้งกราฟฟิกการ์ด
Instalar la Tarjeta Grá󰘰ca
Installation de la carte graphique
Gra󰘰kkarte installieren
Установка видеокарты
Installare la Scheda Gra󰘰ca
Ekran Kartını Takma
Instalace gra󰘰cké karty
Gra󰘰kus kártya telepítése
Instalowanie karty gra󰘰cznej
Instalando Placa de vídeo
De gra󰘰sche kaart installeren
Inštalácia gra󰘰ckej karty
Instalarea placii gra󰘰ce
Instaliranje Gra󰘰čke kartice
Installera Gra󰘰kkortet
Installation af gra󰘰kkortet
Näytönohjaimen asentaminen
Installere gra󰘰kkort
Graa󰘰kakaardi paigaldamine
Gra󰘰skās kartes uzstādīšana
Diegimas gra󰘰kos plokštę
安裝系統風扇
安装系统风扇
システムファンの装着
시스템 팬 설치
Memasang Kipas Sistem
Gắn quạt tản nhiệt thùng máy vào
ติดตั้งพัดลมระบายความร้อนในตัวเครื่อง
Instalar el ventilador
Installation du système de ventillation
Systemkühler installieren
Установка системного вентилятора
Installare il Sistema di Ventilazione
Sistem Fanını Takma
Instalace ventilátoru
Rendszerhűtő telepíítése
Instalowanie dodatkowego chłodzenia
Instalando Ventoinha
De systeemventilator installeren
Inštalácia ventilátora
Instalarea ventilatorului
Instaliranje sistemskog ventilatora
Installera system󰘱äkten
Installation af systemblæseren
Kotelon tuulettimen asentaminen
Installere systemviften
Süsteemi ventilaatori paigaldamine
Sistēmas ventilatora uzstādīšana
Diegimas sistemos ventiliatorius
Remove the cooler back pad sticker 󰘰lm 󰘰rst.
B
Installing the CPU and CPU Cooler
B-1
B-2
B-3
B-4
B-5
B-6
B-7
B-8
安裝CPU及CPU風扇
安装CPU及CPU风扇
CPU及びCPUクーラーの装着
CPU와 CPU 쿨러 설치
Memasang Prosesor dan pendingin Prosesor
Gắn CPU và bộ tản nhiệt CPU vào
ติดตั้งตัวประมวลผลพร้อมตัวระบายความร้อน
Instalar el Procesador y Disipador
Installation du processeur et refroiddisseur
CPU und CPU-Kühler installieren
Установка процессора и кулера
Installare CPU e il Dissipatore
İşlemci ve Soğutucuyu Takma
Instalace procesoru a chladiče
CPU és CPU hűtő telepítése
Instalowanie procesora i chłodzenia
Instalando CPU e cooler do CPU
De CPU en CPU koeler installeren
Inštalácia procesora a chladiča
Instalarea procesorului si a coolerului de procesor
Instaliranje CPU-a i CPU kulera
Installera CPU och CPU-kylare
Installation af CPU og CPU-køler
Suorittimen ja suorittimen jäähdyttimen asentaminen
Installere CPU og CPU-kjøler
Installing the 2.5" HDD / SSD
Connect the SATA and power cables.
E
E-1
E-2
E-3
M3
M3
M3
M3
安裝2.5” SATA硬碟
安装2.5” SATA硬盘
2.5インチSATA HDDの装着
2.5” SATA HDD 설치
Memasang SATA HDD 2,5”
Gắn Ổ đĩa cứng SATA 2.5” vào
ติดตั้ง Hard disk ขนาด 2.5” แบบ SATA
Instalar la Unidad de Disco Duro SATA de 2,5”
Installation du disque dur SATA 2.5”
2,5” SATA HDD installieren
Установка 2.5” SATA HDD
Installazione del disco rigido SATA 2,5” in corso
2,5” SATA sabit disk kurma
Instalování pevného disku 2,5” SATA HDD
2,5”-es SATA HDD beszerelése
Instalacja dysku twardego SATA 2,5”
Instalação da unidade de disco rígido SATA de 2,5”
De 2.5” SATA HDD installeren
Inštalácia 2,5” pevného disku SATA
Instalare HDD SATA 2,5”
Instaliranje 2,5” SATA HDD-a
Installera din 2,5” SATA –hårddisk
Installation af 2,5” SATA HDD
2,5-tuumaisen SATA-kiintolevyn asentaminen
Installere 2,5-tommers SATA HDD

MSI Nightblade X2 Specifications

General

Tcase	64 °C
Bus type	DMI2
Stepping	R0
Processor cache	8 MB
Processor cores	4
Processor model	i7-6700K
System bus rate	8 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-6700 Desktop series
Processor socket	LGA 1151 (Socket H4)
Processor threads	8
Processor codename	Skylake
Number of QPI links	0
Processor frequency	4 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	4.2 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	91 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory clock speeds supported by processor	1600, 2133 MHz
Memory bandwidth supported by processor (max)	34.2 GB/s
Maximum internal memory supported by processor	64 GB
Scalability	1S
Processor ARK ID	88195
Processor package size	37.5 x 37.5 mm
Conflict-Free processor	Yes
Intel Enhanced Halt State	-
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2015D
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Memory slots	2x DIMM
Internal memory	16 GB
Memory channels	Dual-channel
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
HDD size	2.5/3.5 \
HDD capacity	2000 GB
SSD capacity	128 GB
HDD interface	SATA III
SSD interface	M.2
Storage media	HDD+SSD
Optical drive type	DVD Super Multi
Total storage capacity	2128 GB
Number of storage drives installed	2
On-board graphics card ID	1912
Discrete graphics card model	NVIDIA® GeForce® GTX 1070
On-board graphics card model	Intel® HD Graphics 530
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
Operating system installed	Windows 10
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Chassis type	Desktop
Product color	Black, Red
Product type	PC
Market positioning	Gaming
Motherboard chipset	Intel® Z170
Audio output channels	7.1 channels
Power supply	500 W
Sustainability certificates	EPEAT Silver
Cables included	AC

Weight and Dimensions

Depth	373 mm
Width	175 mm
Height	287 mm
Weight	10000 g
