Overview of Components

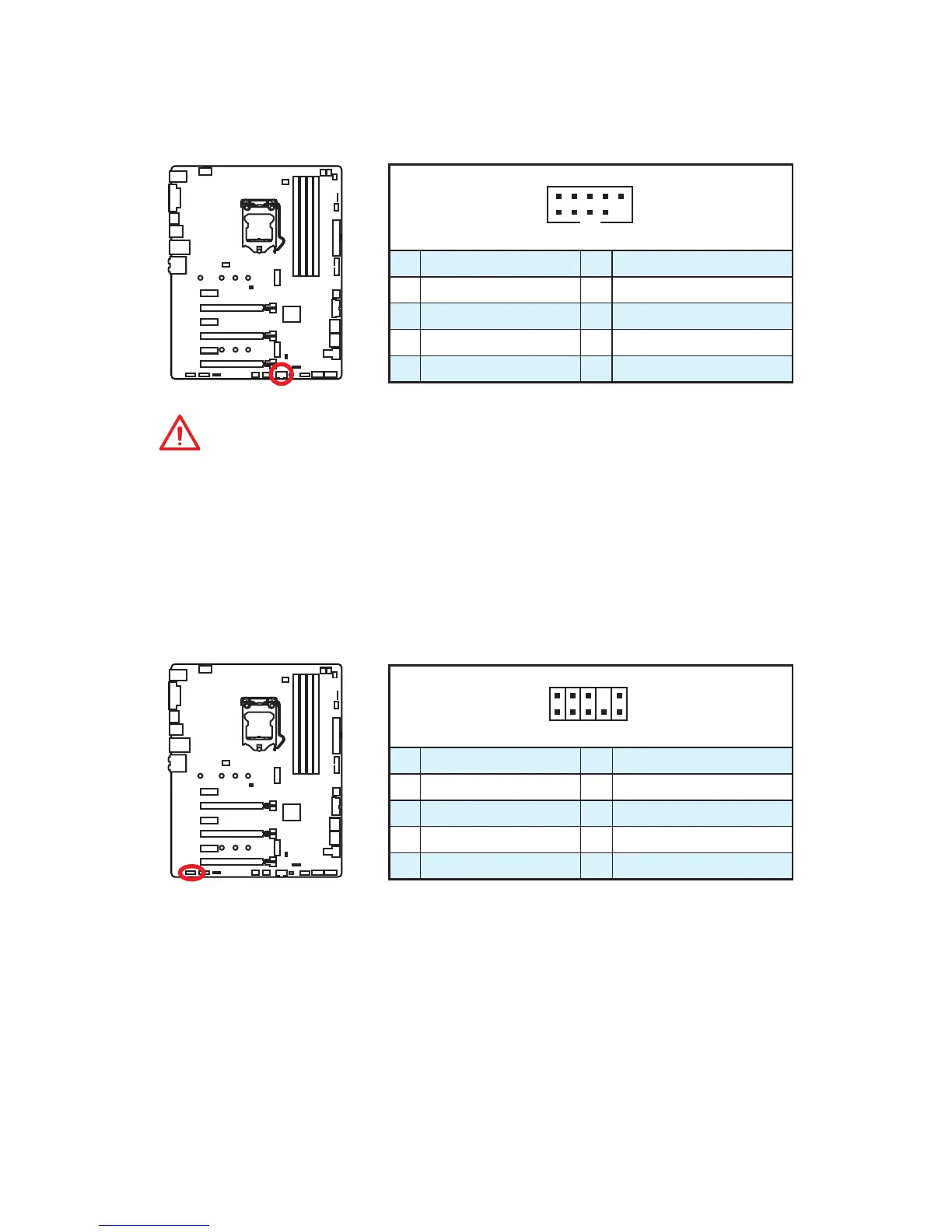

JUSB1: USB 2.0 Connector

This connector allows you to connect USB 2.0 ports on the front panel.

2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

Important

Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.

In order to recharge your iPad,iPhone and iPod through USB ports, please install

MSI

SUPER CHARGER utility.

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection

Questions and Answers:

Need help?

Do you have a question about the MSI Z170A MPOWER GAMING TITANIUM and is the answer not in the manual?

MSI Z170A MPOWER GAMING TITANIUM Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Max Memory	64 GB
Form Factor	ATX
USB 3.1 Gen1 (Rear)	4
USB 2.0 (Rear)	2
Audio	Realtek ALC1150
LAN	Intel I219-V Gigabit LAN
PCIe x16 Slots	3
PCIe x1 Slots	3
Memory Slots	4
Multi-GPU Support	AMD 3-Way CrossFireX, NVIDIA 2-Way SLI
SATA Ports	6
M.2 Slots	2
RAID Support	0, 1, 5, 10
Memory Speed	2133/2400/2600/2800/3000/3200 MHz (OC)
USB 3.1 Ports	1 (Type-C), 1 (Type-A)
