7
Zone 2 Zone 2
h
h
Zone 1
Zone 0
Zone 0
2.5 m
2.5 m
1.5 m 1.5 m2.0 m 2.0 m

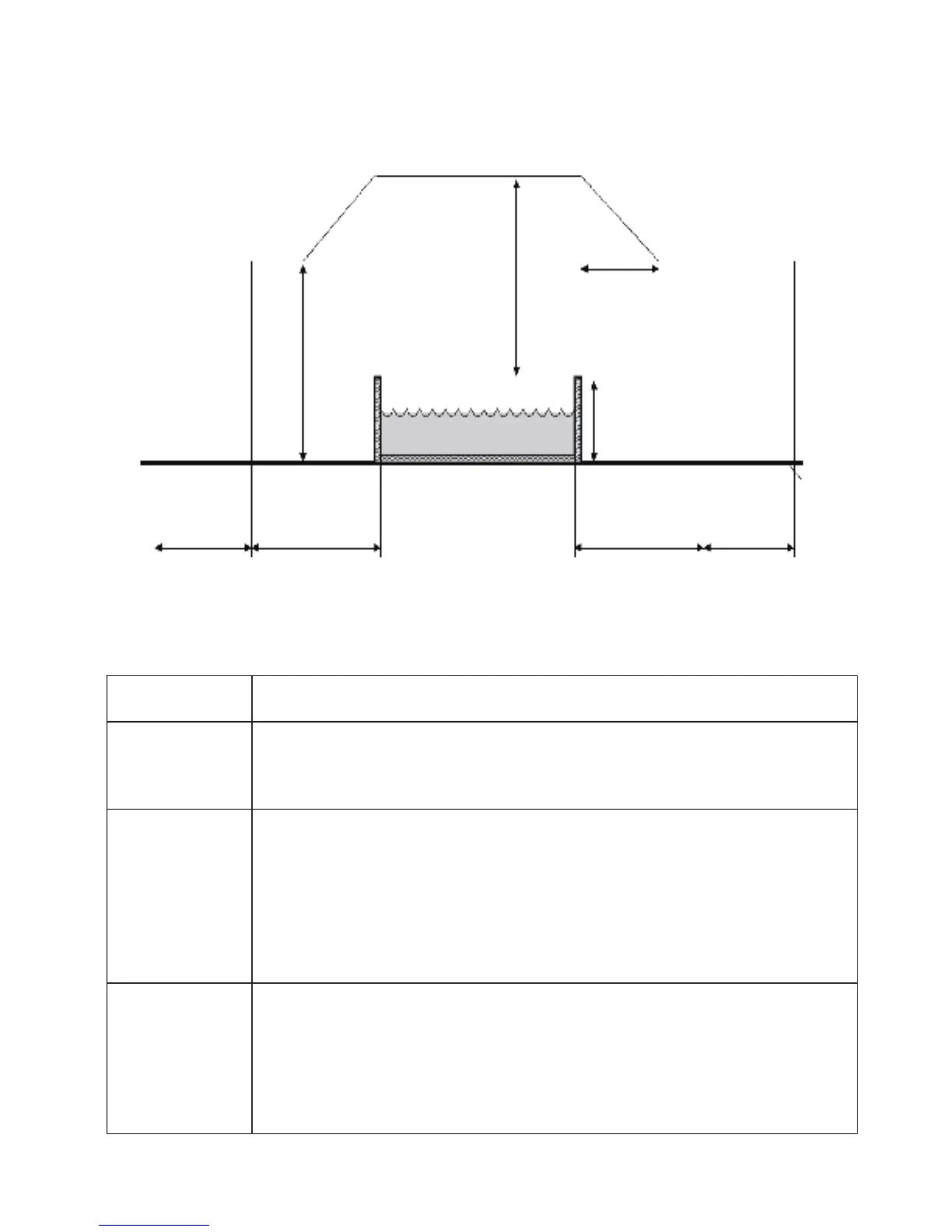

Warning: Water protection levels of appliance at different product zones are
different see the following scheme. ( Installation regulations comply to IEC
60364-7-702)
NOTE-The measured zone dimensions are limited by walls and fixed partitions.
Zones
Zone 0
Zone 1
Zone 2
Description of the zones
Zone 0 is the interion of the basin including any recesses in their
walls or floors.
Zone 1 is limited by
• Zone 0
• A vertical plane 2m from the rim of the basin.
• The floor or the surface expected th be occupied by persons
• The horizontal plane 2.5m above the floor or the surface
Zone 2 is limited by
• A vertical plane external th zone 1 and parallel plane 1.5m
from the former.
• By the floor or surface intended to be occupied by persons.
