6
Quick Start –continued

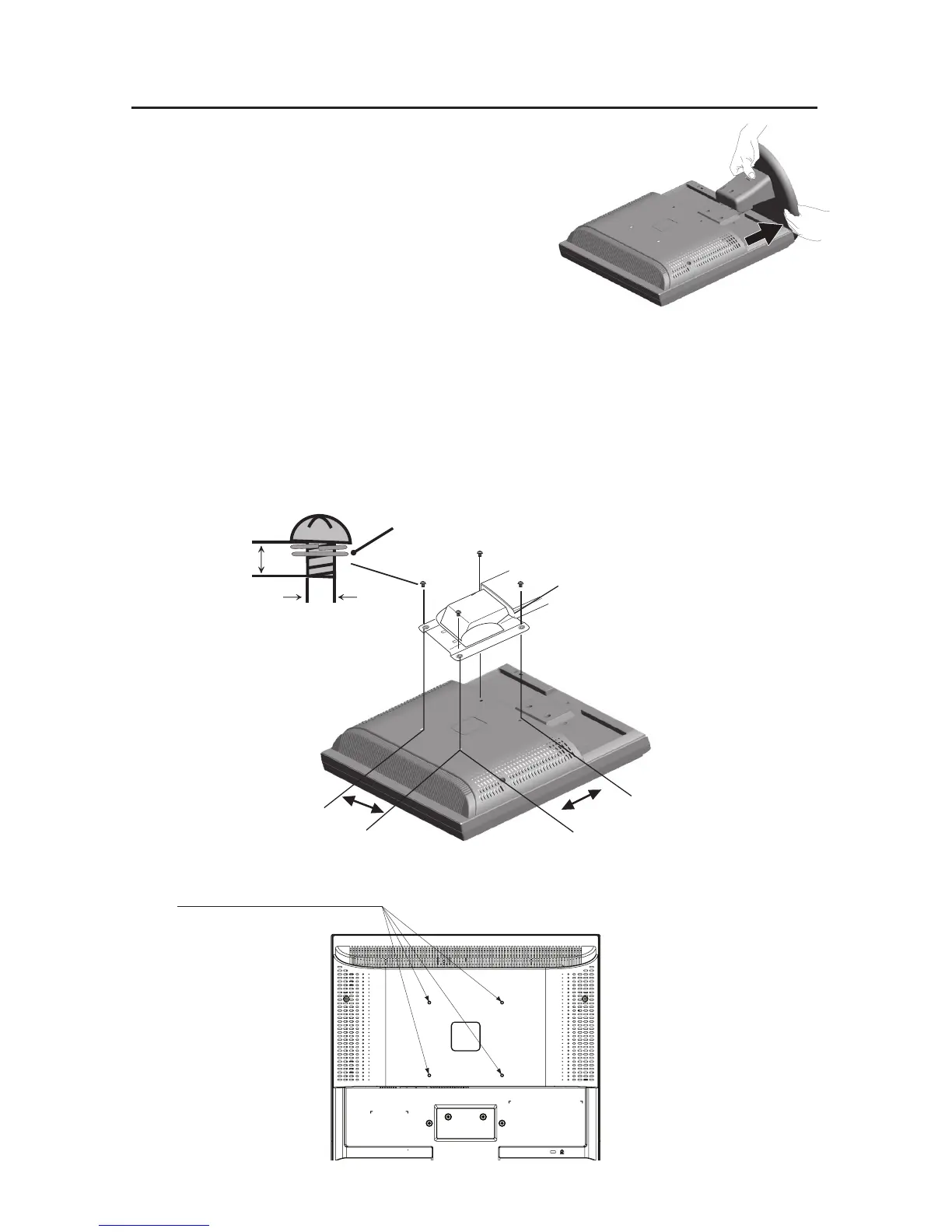

Removing the Base
Note: Always remove the Base when shipping the LCD.
1.
Place monitor face down on a non-abrasive
surface.
2. While using your thumbs, press the bottom tabs
upward to unlock.
3. Press the top tabs down to unlock and pull off the stand.
Connecting a Flexible Arm
This LCD monitor is designed for use with a fl exible arm. Please use the attached
screws (4pcs) as shown in the picture when installing.
To meet the safety requirements, the monitor must be mounted to an arm which
guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor should only be used with an approved arm (e.g. GS mark).
Specifi cations
4-SCREWS (M4)
(MAX depth: 8.5 mm)
Tighten all
screws.
Thickness of Bracket
(Arm) 2.0~3.2 mm
100 mm
100 mm
Weight of LCD assembly:
3.9kg - LCD73VX(MAX)
4.3kg - LCD93VX(MAX)
3.9kg - LCD73VXM(MAX)
4.3kg - LCD93VXM(MAX)
12 mm
M4
4 x 12 mm with lock washer and fl at washer
To Next Page
