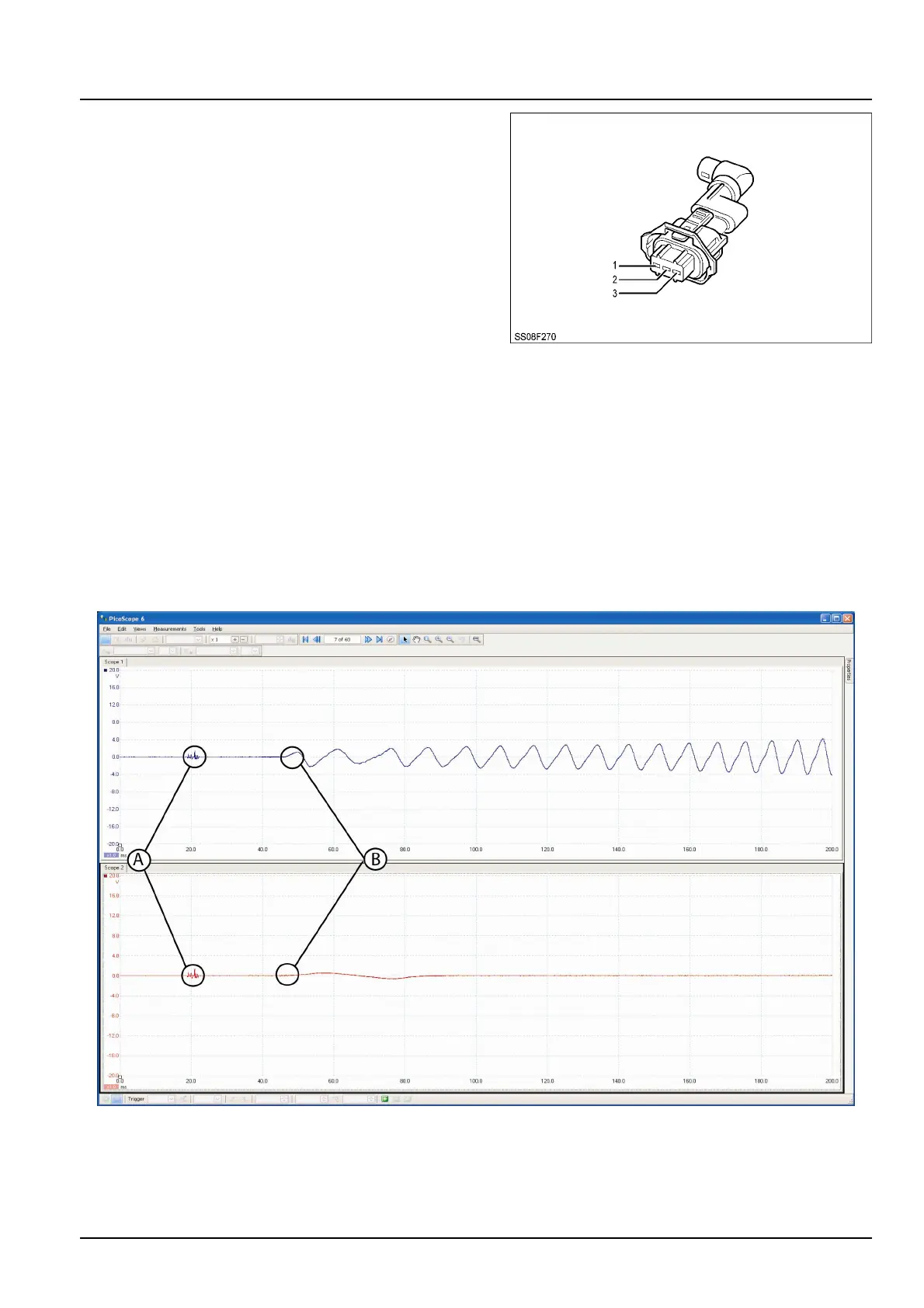

Engine-Engineandcrankcase
1.Pin1:Earth
2.Pin2:Signal
3.Pin3:Power
SS08F2704
3.Slidetheback-pindownintotheconnectorPIN2
signallinesothatthesignalcanbetested.
4.ConnecttheDATARScopeusingthetestleadsby
insertingtheredleadintotheback-pinandconnect-
ingtheblackleadontotheEarth.
theChannelA(Blue)totestthecrankto×1@±20
V
SettheChannelB(Red)totestthecamto×1@±
20V
Collectiontime=20msperdivision.
Results
BAIL11CVT088FMA5
Enginestartup
Figure5
(A)=Ignitionstartup(B)=Enginebeginstoturn
4752433118/04/2013
10.1[10.001]/5
