Chapter 3 Installation and Connection
15
Please
Read First
3.2.4
Connecting USB Peripheral Devices
There are two USB (H) connectors on the right side of DS-L3. You can connect USB devices such as a USB mouse, or
can connect a Nikon microscope and control its motorized equipment. USB memory sticks can be connected as image
storage media.
Connecting USB memory stick
For connection of USB memory sticks, refer to “4.3.3 Connecting a USB Memory”.
1 Confirm that the power of DS-L3 is off.
2 Connect your USB device.
When only one USB device is connected, connect the device to either one of the two USB (H) connectors on the
DS-L3.
When two devices are connected simultaneously, connect each of them to the USB (H) connector.
When three or more devices are connected simultaneously, use a USB hub.
Connecting USB Peripheral Devices
Connecting a USB device
• Only one tier of USB hubs can be connected to this product. Do not connect USB devices on the second tire or
further because they are not recognized.
• For Nikon microscopes that can be connected to DS-L3, refer to “21.1 DS Camera Control Unit DS-L3”.
Mouse speed
The mouse pointer speed of the connected USB mouse can be specified by the setup menu. Refer to “13.5.5
Configuring Other Settings” for details.

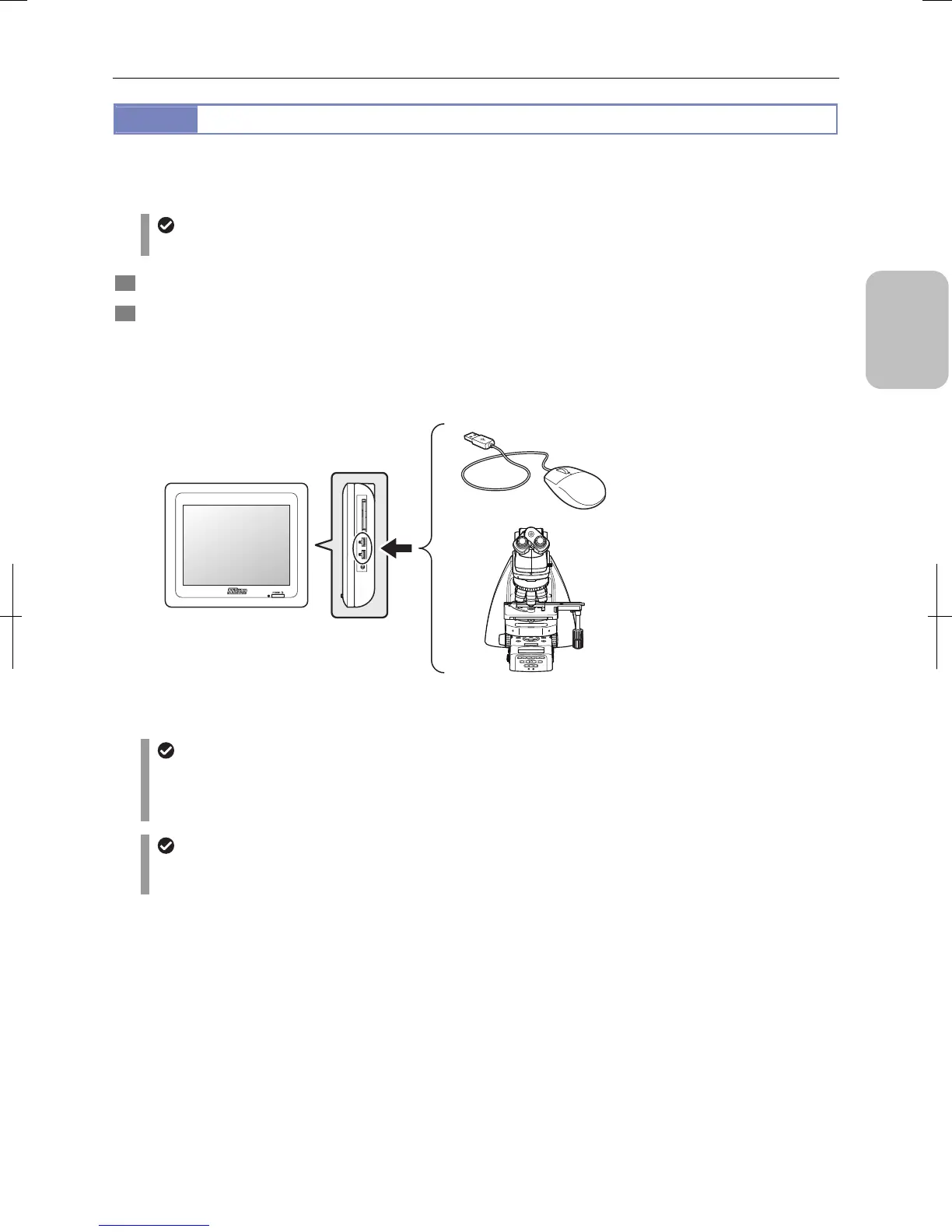

DS-L3
Nikon microscope
Use a commercially available USB
cable (for USB 2.0) to connect it.
Right side
USB mouse
To Next Page
