Chapter 4 Preparing for Use
29
Please
Read First
4.4
Adjusting Image Quality of External Monitor
When you output video signals from the DS-L3 to an external monitor, adjust the image quality (brightness, contrast, etc.) of
the external monitor so that images are displayed properly. For how you adjust the image quality, refer to the manual of the
external monitor.

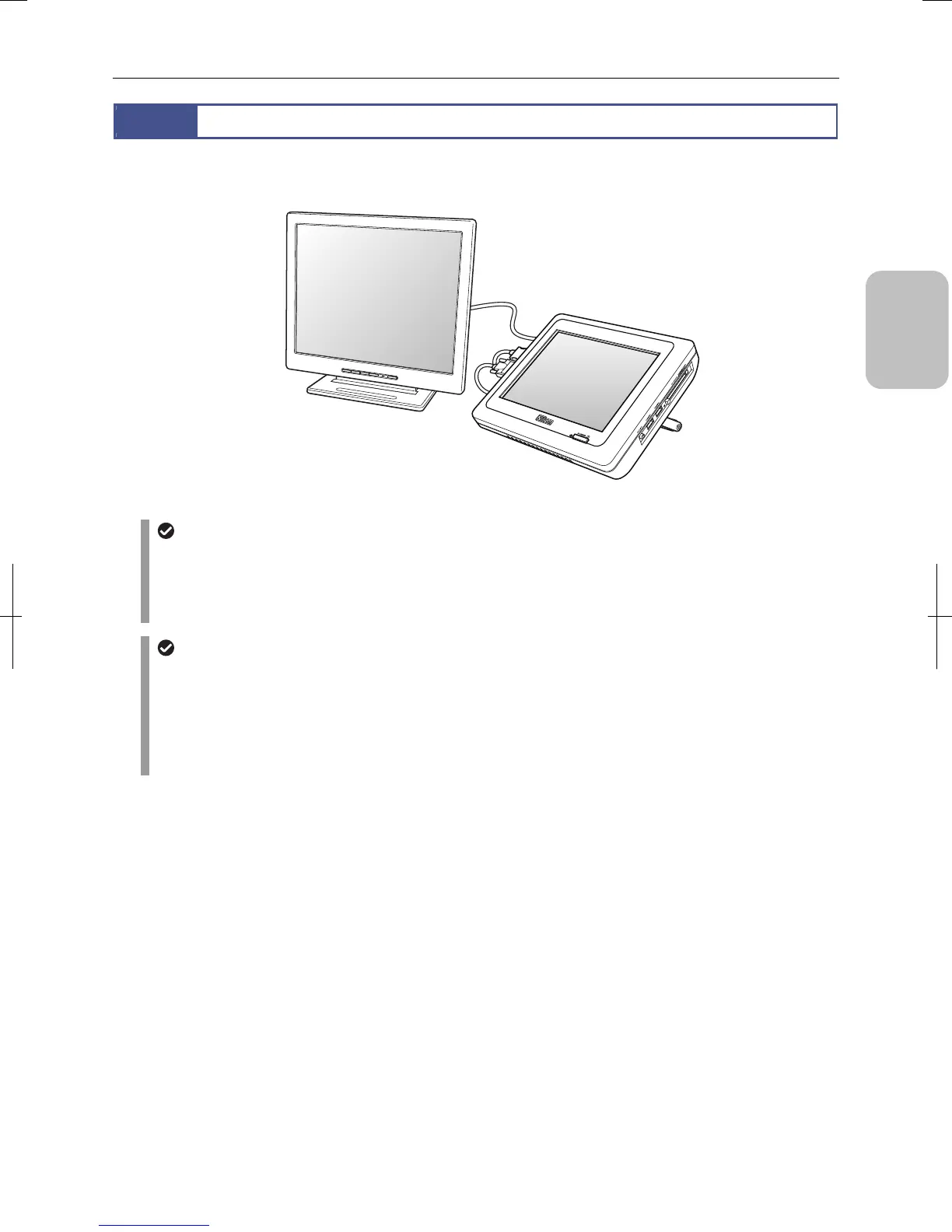

Example of connecting an external monitor
Adjustment of DS-L3 output signal
By operation on the [SETUP MENU: MAIN] screen, you can set the following items, which have bearings on the
quality of external monitors. Refer to “13.2.2 Configuring Monitor” for details.
• Display mode selection (SXGA, XGA)
• Color balance adjustment of output signal
Adjustment of an external monitor using test charts
If the screen on the external monitor blurs, we suggest that you adjust the clock phase and the clock pitch on the
external monitor.
DS-L3 has the capability to output “test charts” suitable for this adjustment. Press the [LCD CHART] button in the
[OTHER] area on the [SETUP MENU: ADDITIONAL] screen, and an image with vertical lines are shown on the
display. Adjust the external monitor so that this image is shown clearly.
Press the [x] button at the top right corner of the screen to close the test chart.
To Next Page
