Nikon N Series/K Series Total Station Instruction Manual 81
Applications 4

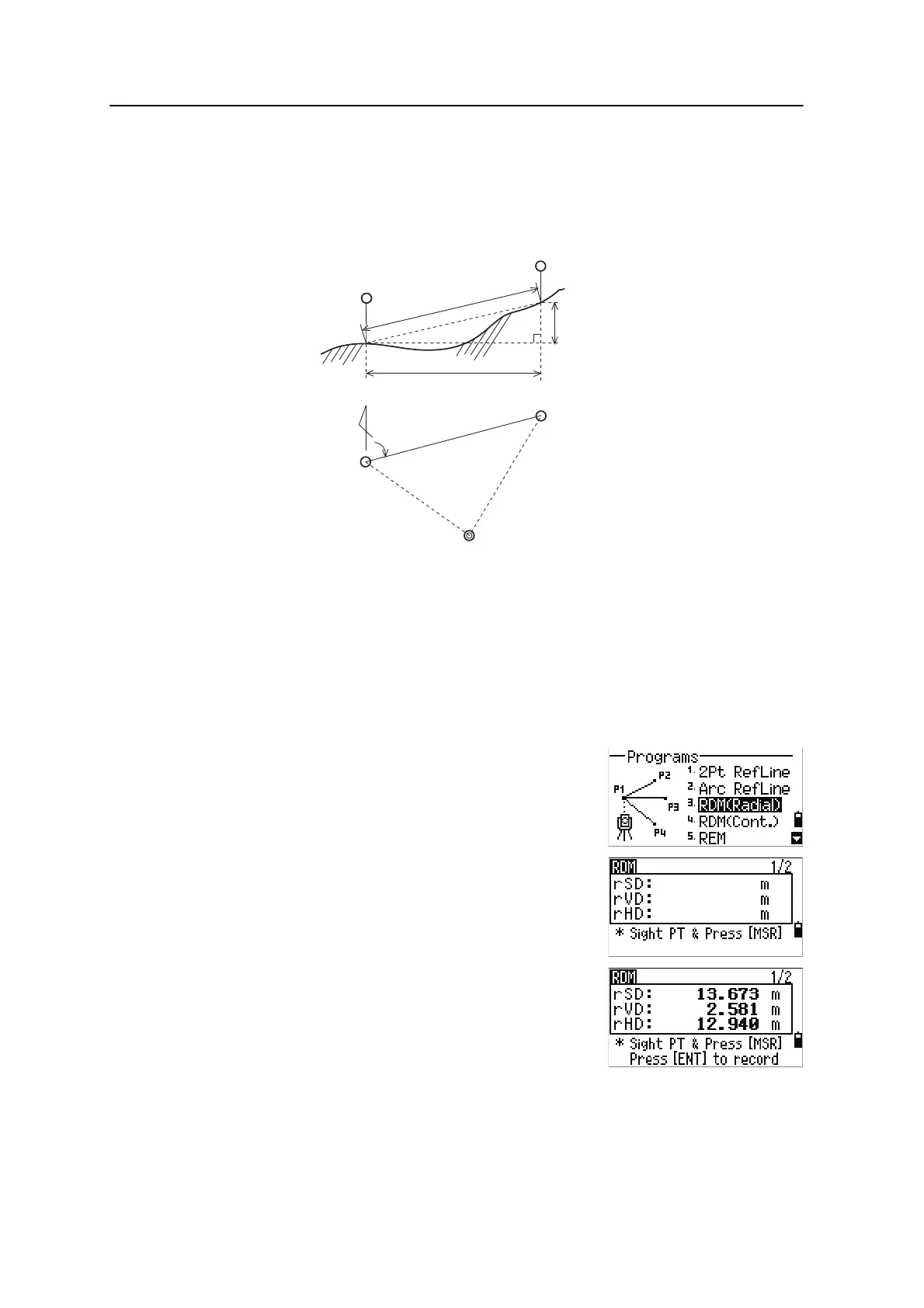

Remote distance measurement
This function measures the horizontal distance, vertical distance, and slope distance
between two points.
Measuring between the current and the first point measured
1. To enter the RDM (Radial) function, press
[3] or
select
RDM(Radial) in the Programs menu.
2. Sight the first point and press
[MSR1] or [MSR2].
The distance from the station point to the first
point appears.
rSD Slope distance between two points
rHD Horizontal distance between two points
rVD Vertical distance between two points
rV% Percentage of grade (rVD/rHD) × 100%
rGD Vertical grade (rHD/rVD) :1
rAZ Azimuth from first point to second point
1st sighting
point
rSD
2nd sighting point
rVD
rHD
Horizontal angle 0 direction
rHA
2nd sighting point
Station point
1st sighting
point
