10
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights r
eserved.
1680classic RM-394/RM-395 1681c RH-118
P
age
(XX)
ISSUE 2
Ser
vice Manual Level 1&2

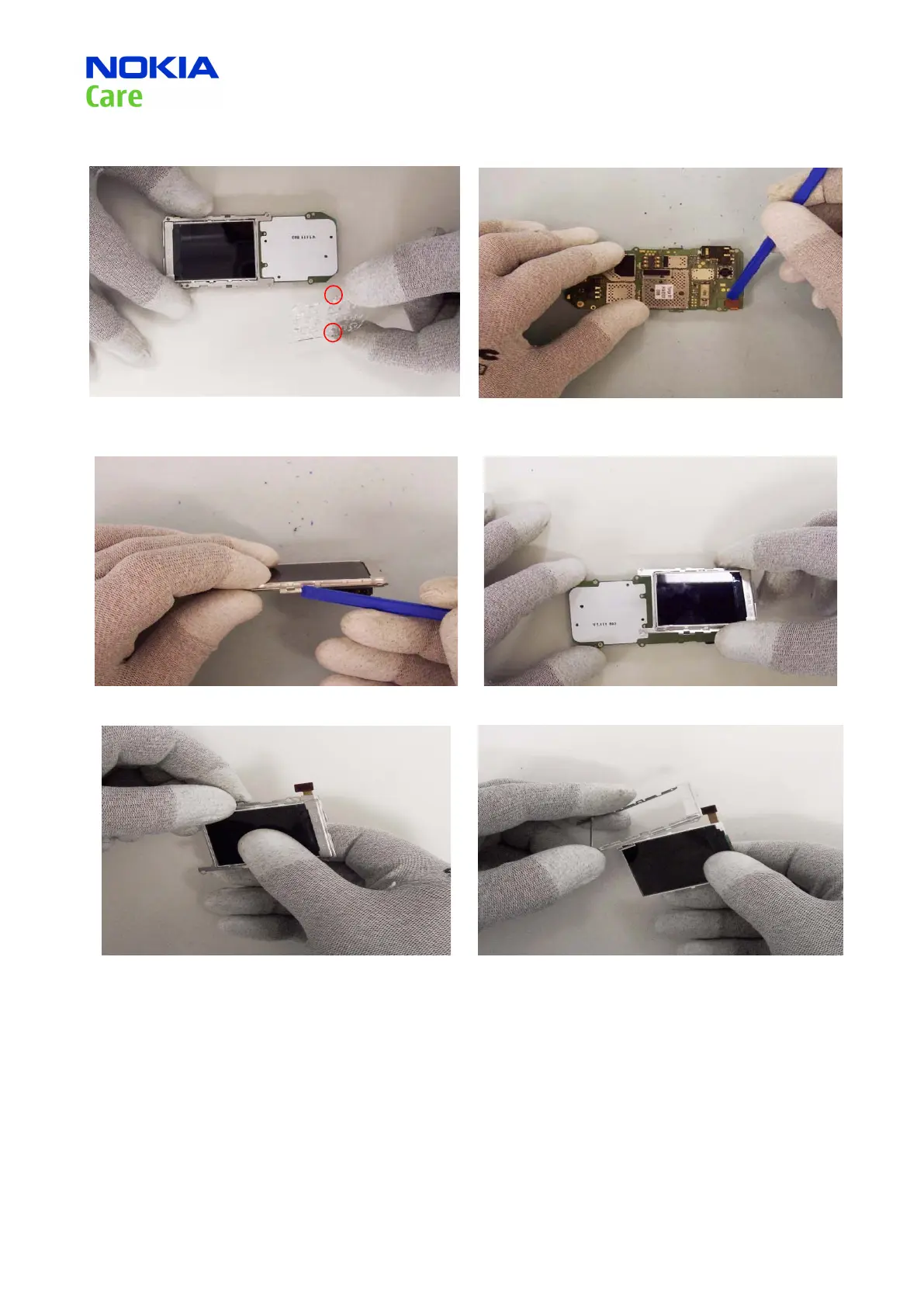

7) Gently release
tabs with fingers
and remove Keymat
Light Guide.
8) Use SS-93 Tool to release
LCD Connector.
9) Use SS-93 T
ool to release LCD tabs
10) Remove UI Sh
ielding and LCD
Module.
11) Gently pul
l UI Shielding and pus
h LCD to release.
12) Remove the UI Shiel
ding.
9
11
Table of Contents
Table of Contents
2
Change History
3
Copyright
3
Warnings and Cautions
4
Esd Protection
4
Care and Maintenance
5
Battery Information
5
Exploded View
6
Service Devices
7
Sw-Update
8
Disassembly Instruction
9
Assembly Hints
12
