15. GONOGO TEST
After the optical check a GoNoGo test has to be carried out if the unit has been unscrewed to guarantee the
functionality of the phone.
Please refer to the actual information on Nokia Online. When using delivered tester support files, take care of the
right setup according to the tester type and product type.
Please refer to “Recommended Service Equipment” on Nokia Online.

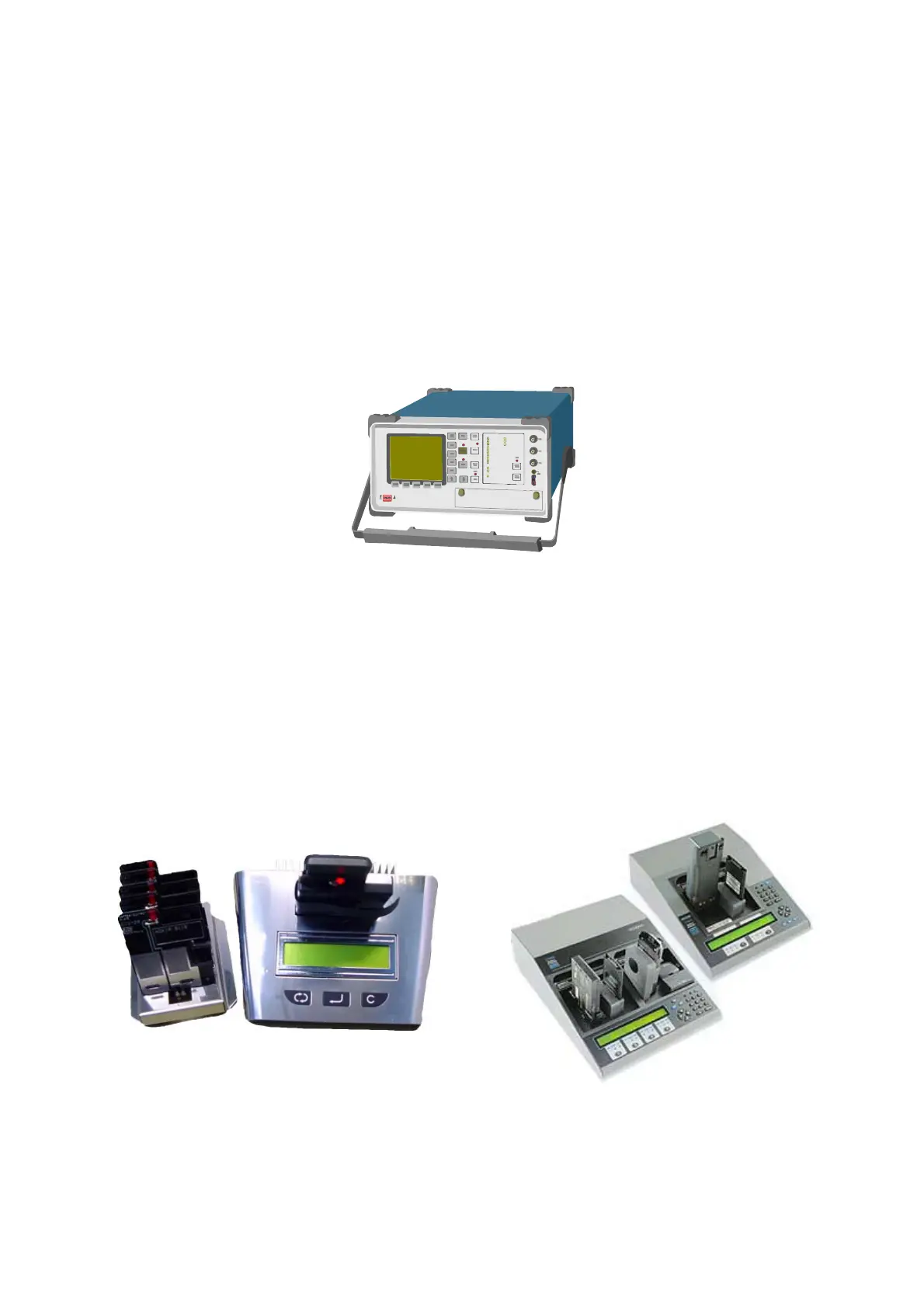

Mobile Phone Tester
16. BATTERY TEST
A battery tester lets you test the capacity of Nokia batteries.
Please refer to the actual information on Nokia Online.
http://www.astratec.co.uk/
http://www.cadex.com/
Service Manual 6230/i Level 1&2 Copyright © 2004-2005 Nokia Corporation. All rights reserved.

Nokia 6230 Specifications

General

Display Type	TFT, 65K colors
Resolution	128 x 128 pixels
Internal Memory	6 MB
Battery Type	Removable Li-Ion 850 mAh battery (BL-5C)
Stand-by	Up to 300 h
Talk time	Up to 5 h
Status	Discontinued
Network	GSM
2G bands	GSM 900 / 1800 / 1900
SIM	Mini-SIM
5-way navigation key	Yes
Downloadable wallpapers, screensavers	Yes
Video	Yes
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Infrared port	Yes
USB	Pop-Port
Messaging	SMS, MMS, Email, Instant Messaging
Browser	WAP 2.0/xHTML
Java	Yes, MIDP 2.0
Predictive text input	Yes
Organizer	Yes
Voice dial	Yes
Brand	Nokia
Weight	97 g (3.42 oz)
Display Size	1.5 inches
Card Slot	MMC
Main Camera	VGA
Announced	2003
GPRS	Class 10
Phonebook	1000 entries
Alert types	Vibration; Downloadable polyphonic ringtones
Games	Yes
Colors	Black
SAR	0.73 W/kg (head)
Dimensions	103 x 44 x 20 mm, 76 cc
Bluetooth	Yes, v1.1
Radio	FM radio
