7368 ISAM ONT E-240W-A Product Guide
Configure an E-240W-A ind
oor ONT
Issue: 01
3FE-4
6974-AAAA-TCZZA
121
Procedure 40
Voice setting
1

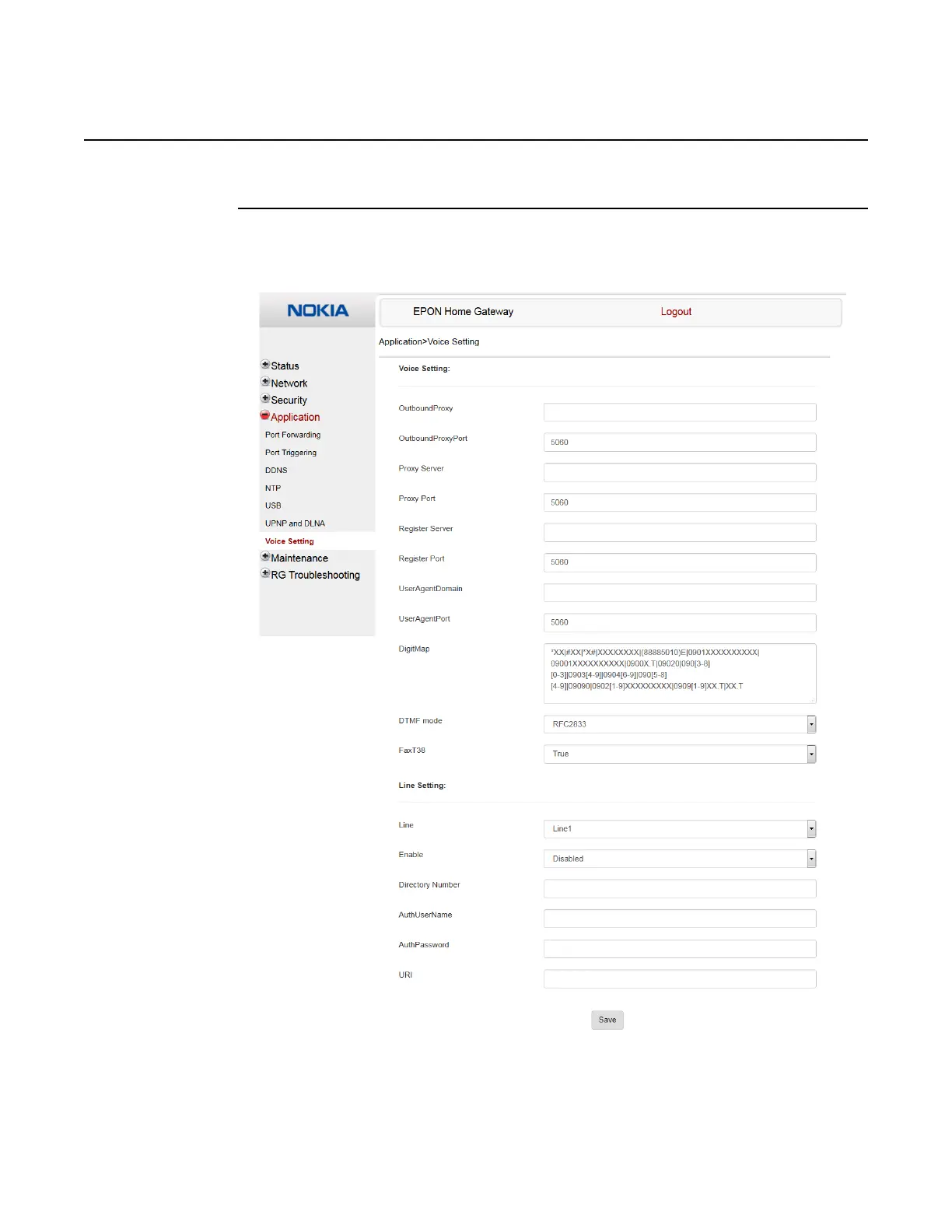

Select Application > Voice Setting from the top-level menu in the EPON Home Gateway
window, as shown in Figure
56
.
Figure 56
Voice setting window
