Nokia Lumia 925 Service Manual

Service Manual Level 1 and 2
Nokia Lumia 925
RM-892, RM-893, RM-910
Version 2.0

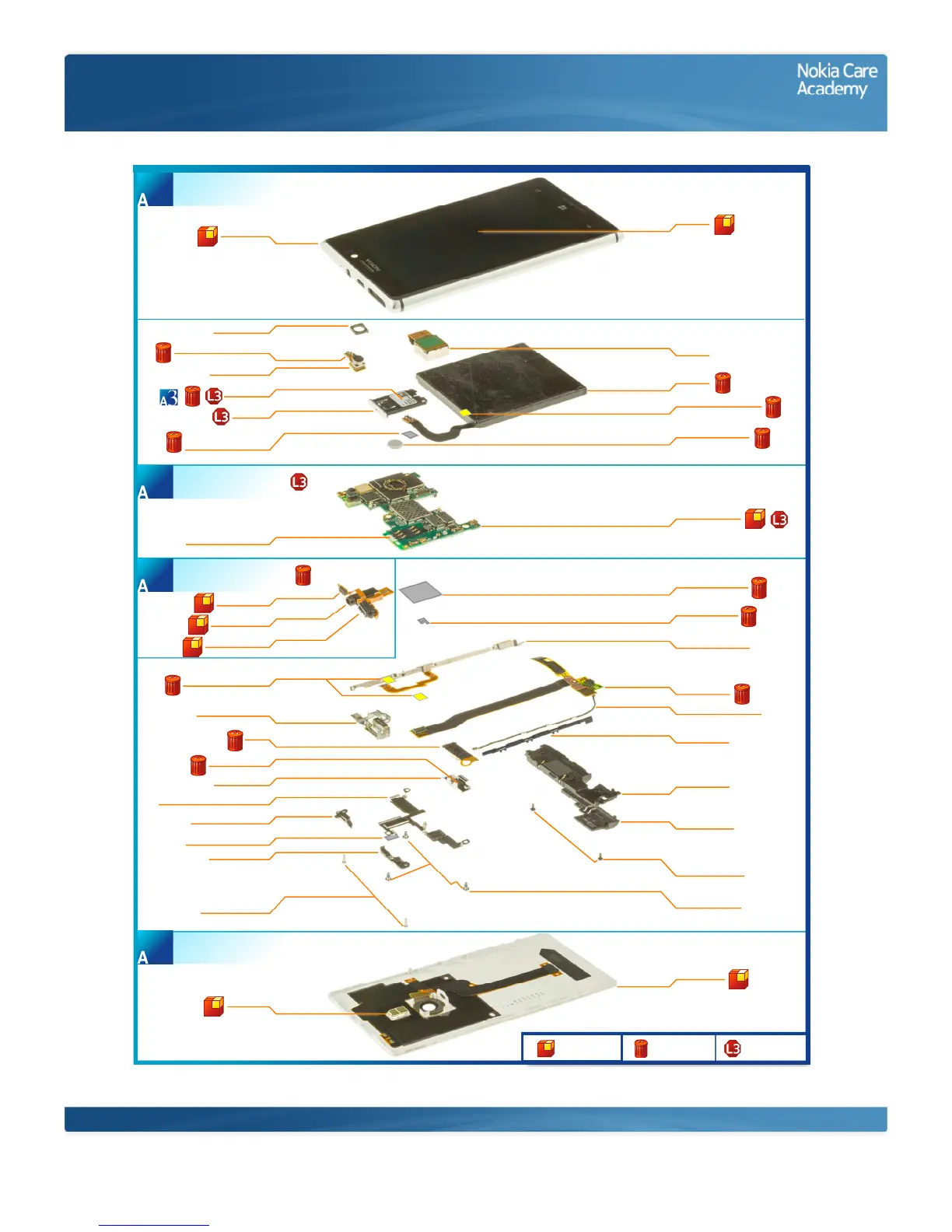

Exploded view
METAL DECO
I0001
BATTERY
CONNECTOR SUPPORT
I0004
CONNECTOR LATCH
I0007
FLEX PROTECTIVE TAPE
I0032
VIBRA
I0020
MIMO ANTENNA
I0010
WATER INGRESS LABEL
WATER INGRESS LABEL
LED FLASH
I0006
CAMERA BOOT
I0028
FRONT CAMERA SUPPORT
I0034
FRONT CAMERA
I0016
SIM TRAY
I0029
VIBRA HOLDER
I0030
VIBRA SUPPORT
I0031
MICROPHONE
I0017
AV CONNECTOR
I0018
USB CONNECTOR
I0019
CONNECTOR SUPPORT FRAME
I0022
WLAN/GPS ANTENNA
I0011
TYPE LABEL
I0009
DISPLAY
I0002
BATTERY
I0003
FLEX PROTECTIVE TAPE
I0032
PMIC THERMAL PAD
I0024
COAX MOUNT
I0035
SPEAKER BOX
I0021
BACK COVER
I0005
LIGHT SWAP PWB
I0008
MSM THERMAL PAD
I0036
FLASH SUPPORT
I0033
CAMERA
I0015
SIDE KEY ASSEMBLY
I0013
BOTTOM FLEX
I0014
ANTENNA COAX CABLE
I0023
MAIN ANTENNA
I0012
SCREW TORX+
SIZE 4 RF1.2 X 2.8
I0025
SCREW TORX+
SIZE 6 M1.6 X 3.0
I0026
SCREW TORX+
SIZE 4 RF1.2 x 4.0
I0027
LIGHT SWAP PACKAGE
(I0008, I0009)
3
CONNECTOR ASSEMBLY
(I0017 - I0019)
4
DISPLAY ASSEMBLY
(I0001, I0002)
1
BACK COVER ASSEMBLY
(I0005, I0006)
2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
