Nordson 3700 Series User Manual

2
O1EN–10–[35–37C3]–6
Issued 9/94

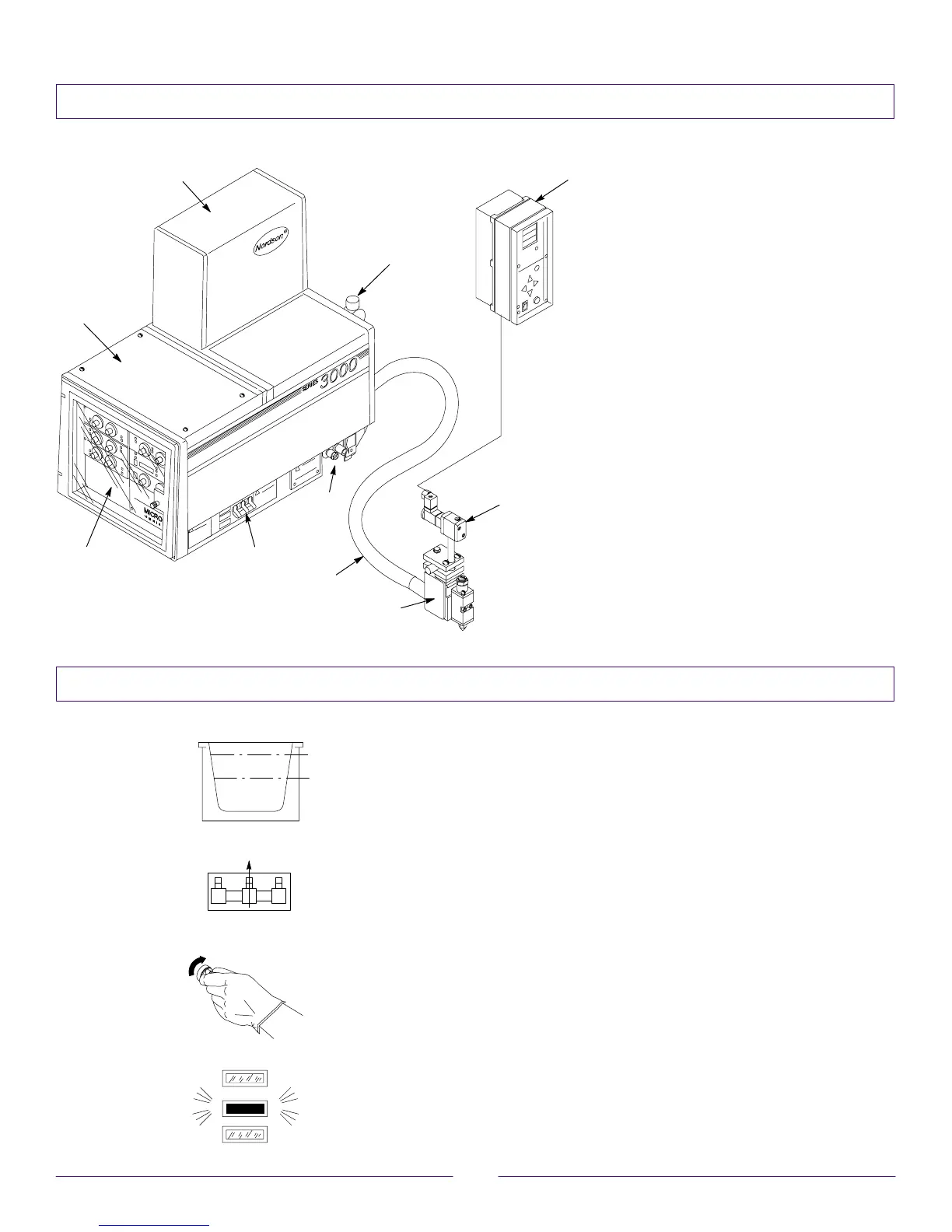

Overview of System Components
6
1
2
7
8
9
10
4
3
5
Applicator
1. Pump enclosure
2. Air regulator
3. Filter assembly
4. Circuit breaker
5. Controls
6. Electrical enclosure
Additional System Components
7. PC40 timer
8. Solenoid
9. H200 gun
10. Hose
Daily Startup/Shutdown
25 mm
50%
Startup
1. Check the adhesive level. Add adhesive to tank if
the level is below 50% of its holding capacity. Fill to
within 25 mm (1 inch) of tank top.
2. Close the lid immediately to prevent contamination
of the adhesive.
3. Set the circuit breaker to ON. Refer to “Overview of
System Components,” item 2.
4. Check the temperature settings for all zones
(channels).
5. Wait for “System Ready” indicator to become
illuminated.
