Page 2 of 2 — DN-6935 • 07/18/05
See
Duct Application Smoke Detectors Guide
, document A05-
1004, available at systemsensor.com, for details on pendant-
mount applications.
ELECTRICAL SPECIFICATIONS:
Voltage range: 15 - 32 volts DC peak.
Standby current (max. avg.): 250 µA @ 24 VDC (with no com-
munication enabled); 360 µA @ 24 VDC (one communication
every 5 seconds with LED enabled).
LED current (max.): 6.5 mA @ 24 VDC (“ON”).
BASES AVAILABLE:
B710LP: 6.1" (15.5 cm) diameter.
B501: 4.1" (10.4 cm) diameter.
B501BH or B501BHT: Sounder base assembly. Includes B501
base.
B224RB Relay Base:
Screw terminals:
up to 14 AWG (2.0
mm²).
Relay type:
Form-C.
Rating:
2.0 A @ 30 VDC resis-
tive; 0.3 A @ 110 VDC inductive; 1.0 A @ 30 VDC inductive.
Dimensions:
6.2" (15.748 cm) x 1.2" (3.048 cm).
B224BI Isolator Base:
Dimensions:
6.2" (15.748 cm) x 1.2"
(3.048 cm).
Maximum:
25 devices between isolator bases.
INSTALLATION
FSP-851 plug-in detectors use a separate base to simplify in-
stallation, service, and maintenance. A special tool allows main-
tenance personnel to plug in and remove detectors without us-
ing a ladder.
Mount base on an electrical backbox which is at least 1.5" (3.81
cm) deep. Suitable mounting base boxes include:
• 4.0" (10.16 cm) square box.
• 3.5" (8.89 cm) or 4.0" (10.16 cm) octagonal box.
• Single-gang box
(except relay or isolator base)
.
•
With B501BH or B501BHT base,
use a 4.0" (10.16 cm)
square box.
•
With B224RB or B224BI base,
use a 3.5" (8.89 cm) octago-
nal box, or a 4.0" (10.16 cm) octagonal or square box.
NOTES: 1) Because of the inherent supervision provided by the
SLC loop, end-of-line resistors are not required. Wiring “T-taps”
or branches are permitted for Style 4 (Class “B”) wiring. 2) When
using relay or sounder bases, consult data sheet DN-2243
(ISO-X) for device limitations between isolator modules and isola-
tor bases.
PRODUCT LINE INFORMATION
NOTE: “A” suffix indicates ULC Listed model.
FSP-851: Low-profile intelligent photoelectric sensor. Must be
mounted to one of the bases listed below.
FSP-851A: Same as FSP-851 but with ULC Listing.
FSP-851T: Same as FSP-851 but includes a built-in 135°F
(57°C) fixed-temperature thermal device.
FSP-851TA: Same as FSP-851T but with ULC Listing.
Bases:
4762wir1.tif

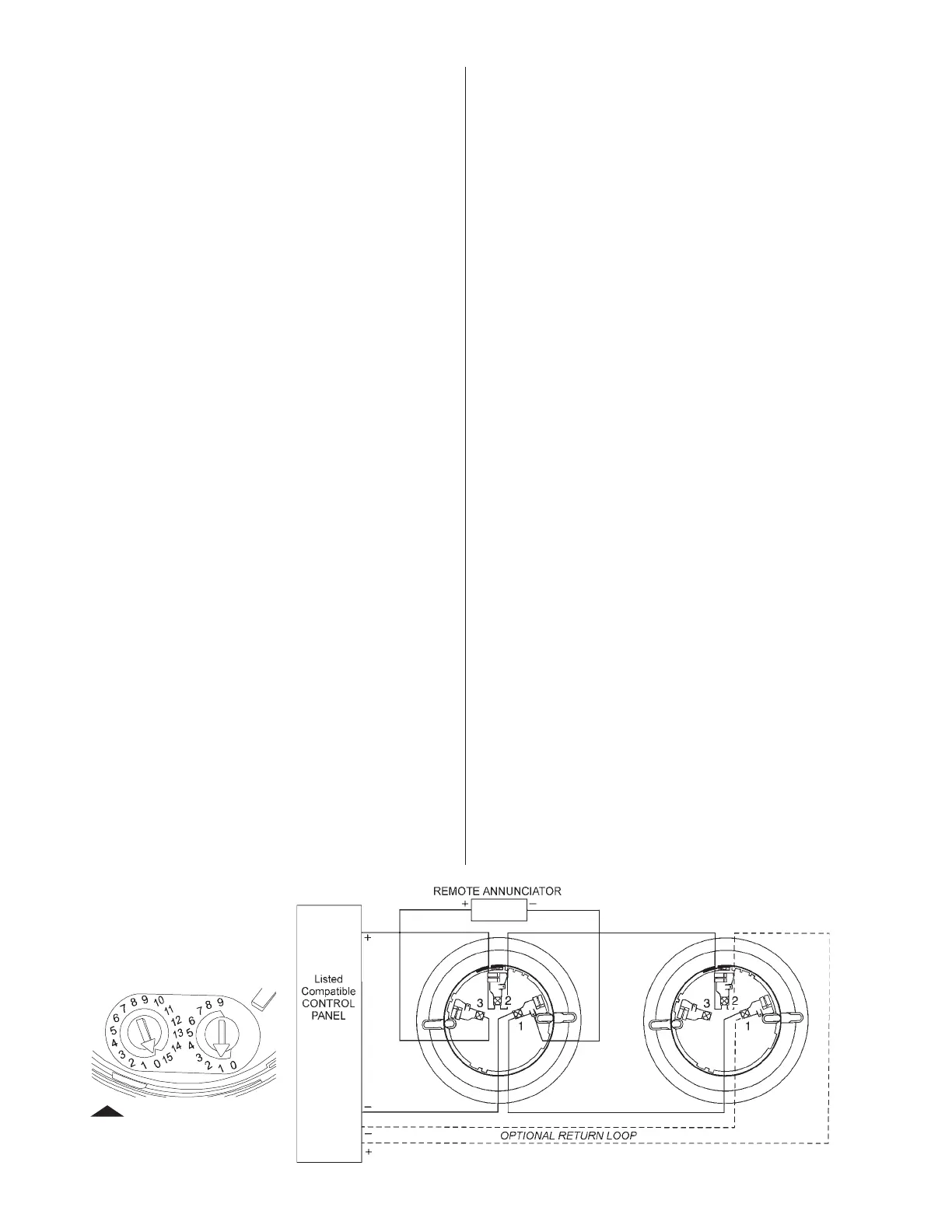

WIRING DIAGRAM
B710LPBP: Standard U.S. low-profile base, pkg. of 10.
B710LPA: Standard U.S. low-profile base, ULC Listing.
B501BP: Standard European flangeless base, pkg. of 10.
B501A: Standard European flangeless base, ULC Listing.
B501BH(A): Sounder base, includes B501(A) base above.
B501BHT(A): Same as B501BH(A), but includes temporal sounder.
B224RB(A): Intelligent relay base.
B224BI(A): Intelligent isolator base. Isolates SLC from loop shorts.
Accessories:
F110: Retrofit replacement flange for BX-501 base. Converts BX-
501 base for use with FlashScan® detectors.
RA400Z(A): Remote LED annunciator. 3 – 32 VDC. Fits U.S. single-
gang electrical box.
Supported by B710LP(A) and B501(A) bases
only.
SMK400: Surface mounting kit provides for entry of surface
wiring conduit.
For use with B501(A) base only.
RMK400: Recessed mounting kit.
For use with B501(A) base
only.
SMB600: Surface mounting kit for use with B710LP(A).
BCK-200B: Black detector covers, box of 10.
M02-04-01: Test magnet.
M02-09-00: Test magnet with telescope stick.
XR2B: Detector removal tool. Allows installation and/or removal
of FlashScan® Series detector heads from base in high ceiling
installations.
T55-127-000: Detector removal tool without pole.
XP-4: Extension pole for XR2B. Comes in three 5-ft. sections.
Detector Guards:
NOTE: Some guards listed below may not be applicable to FSP models.
SDG-773: Smoke detector guard; cover is 7.0" (17.78 cm)
square x 3.0" (7.62 cm) deep.
This guard is mechanically com-
patible with FSP-751. It is UL-compatibility listed with the FSP-
851 (file UL S5515).
STI 9601: Low-profile, flush-mount smoke detector guard, wire.*
STI 9602: Low-profile, surface-mount, smoke detector guard,
wire.*
STI 9609: High-profile, flush-mount, smoke detector guard, wire.*
STI 9605: High-profile, surface-mount, smoke detector guard,
wire.*
STI 9604: Flush-mount heat detector guard, wire.*
STI 9610: Surface-mount heat detector guard, wire.*
*For dimensions and additional information on STI Steel Web Stop-
pers, see data sheet DN-4936.
STI-8200-SS: Flush-mount stainless steel smoke detector guard
(compatibility pending)
.
STI-8230-SS: Surface-mount stainless steel smoke detector
guard
(compatibility pending)
.
address dial on
back of detector
6833addr.wmf
