DISASSEMBLY PROCEDURES

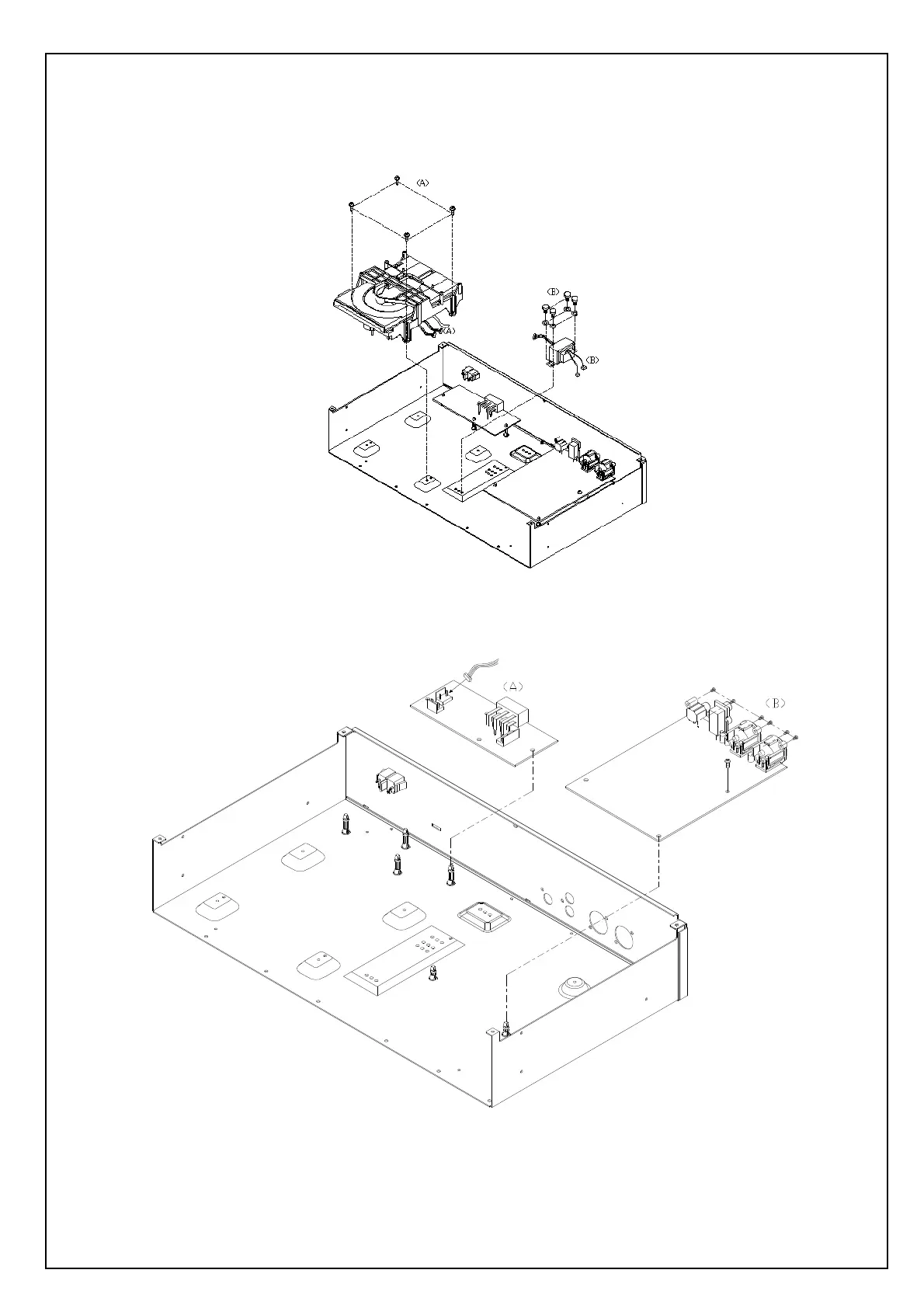

3. REMOVAL MECHA AND TRANSFORMER. (Fig.3)
(A.) REMOVAL THE 4 PCS SCREW AND 3 PCS CONNECTORS BEFORE REMOVAL THE MECHA.
(B.) REMOVE 4 PCS SCREWS AND 4PCS WASHERS AND 3 PCS CONNECTORS BEFORE REMOVAL THE
TRANSFORMER.
Fig.3
4. REMOVAL OF POWER PCB ASS'Y AND MAIN PCB ASS'Y. (Fig.4)
(A.) REMOVAL THE 4 HOLDER BEFORE REMOVAL THE POWER PCB ASS'Y.
(B.) REMOVAL THE 7 PCS SCREWS AND 2 PCS HOLDER BEFORE REMOVAL THE MAIN PCB ASS'Y.
Fig.4
