Numark NS7FX User Manual

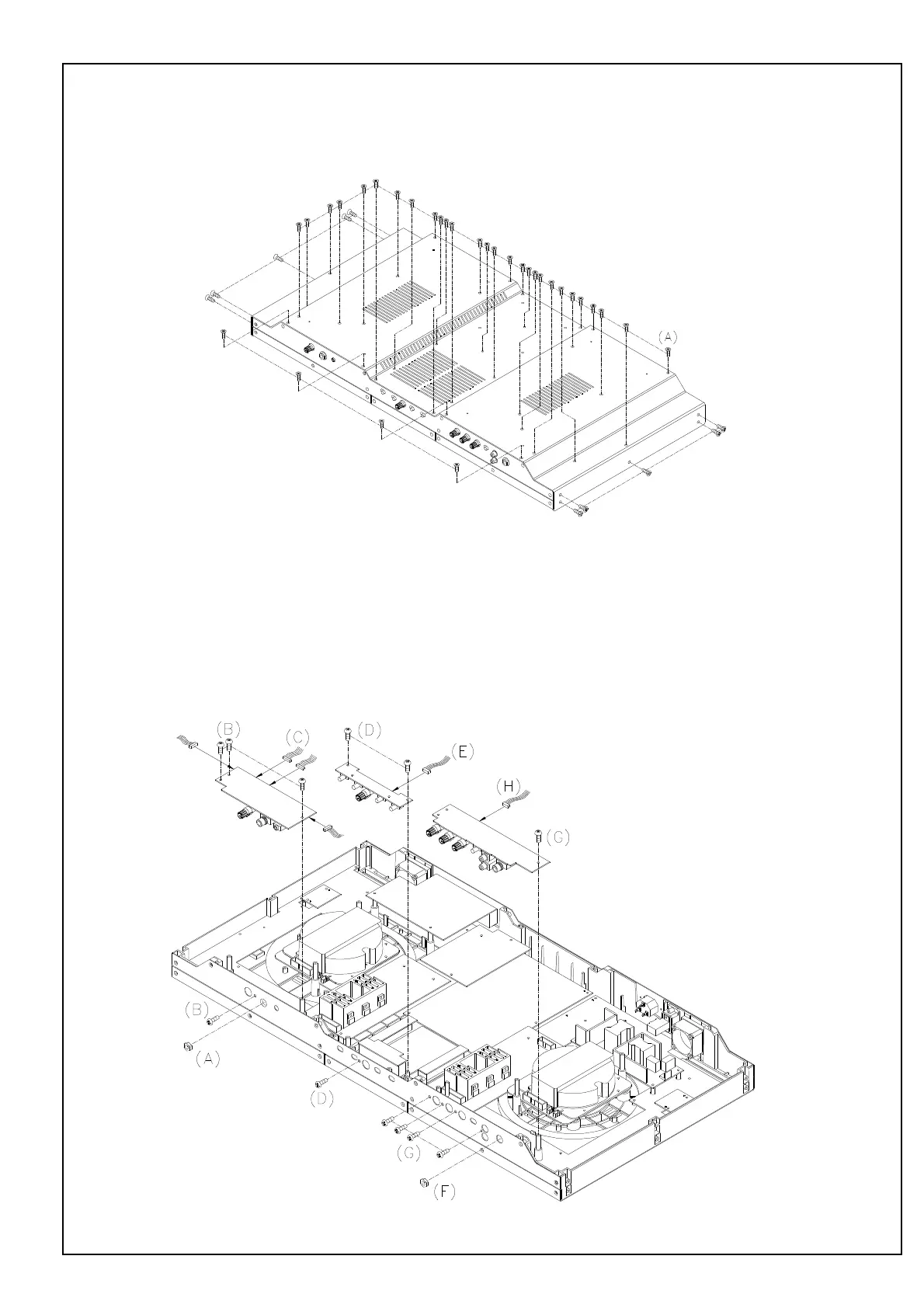

DISASSEMBLY PROCEDURES

(A) REMOVAL 42 PCS OF SCREWS BEFORE REMOVE THE BOTTOM CHASSIS.


(A) REMOVE THE 1 PC NUT.
(B) REMOVE THE 4 PCS OF SCREWS.
(C) REMOVE THE 4 PCS CONNECTORS BEFORE REMOVAL OF PHONE PCB.
(D) REMOVE THE 3 PCS OF SCREWS.
(E) REMOVE THE 1 PC CONNECTORS BEFORE REMOVAL OF XFADER PCB.
(F) REMOVE THE 1 PC NUT.
(G) REMOVE THE 5 PCS OF SCREWS.
(H) REMOVE THE 1 PC CONNECTORS BEFORE REMOVAL OF INPUT PCB.

