NuTone ALLURE WS2 SERIES User Manual

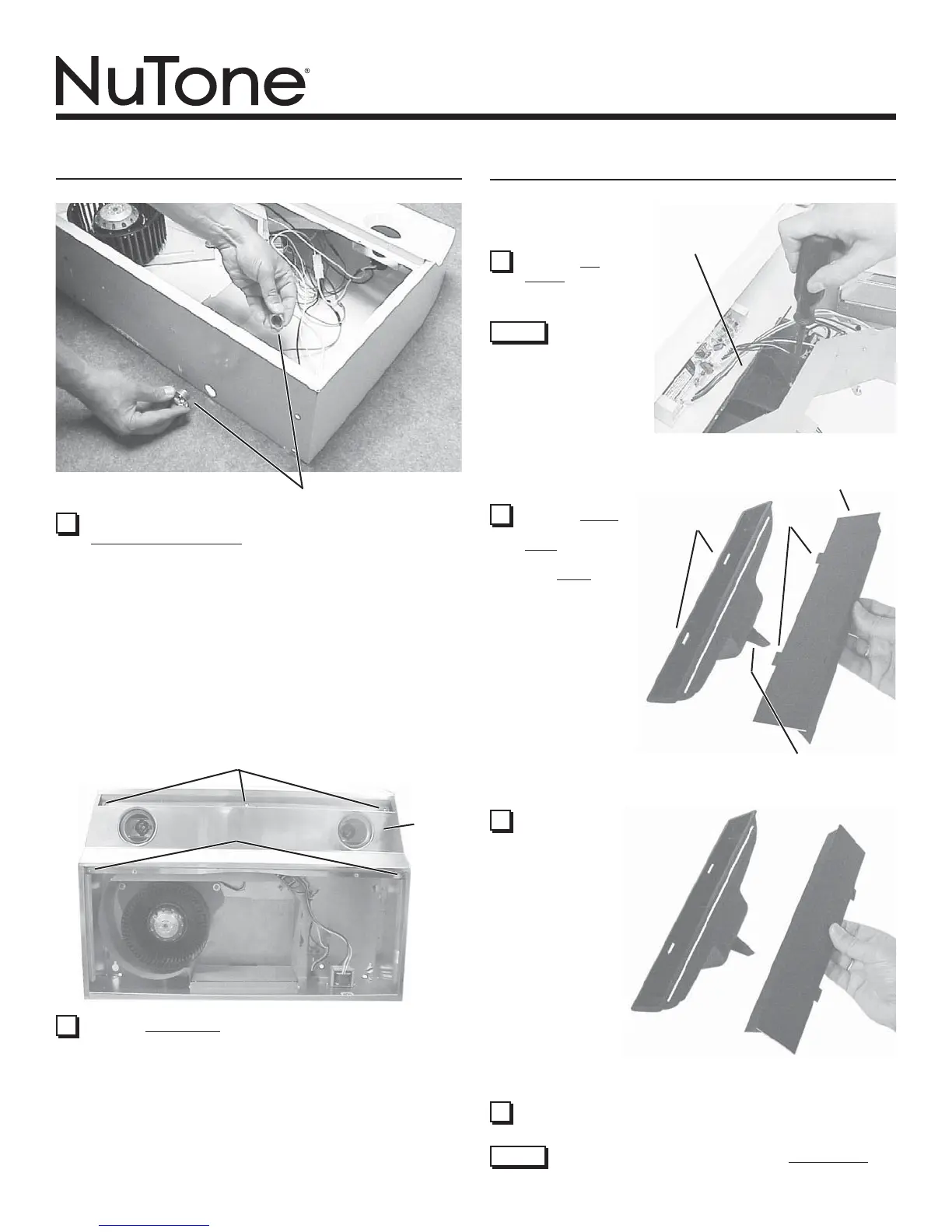

Page 3
ALLURE
®
WS2 SERIES
RANGE HOOD
PREPARE HOOD (CONT'D)
4 Remove either top or back wiring knockout and install approved
Electrical Cable Clamp.
ELECTRICAL
CABLE CLAMP
Ducted Installation - Skip to Step 11.
The following Steps (5 thru 10) are for
NON-DUCTED INSTALLATION ONLY.
PREPARE HOOD (CONT'D)
AIR CHUTE
5 Remove Light Panel - held in place with (3) no. 8 screws and
(2) no. 8 screws. Disconnect light assembly wire harness (white
connector).
(3) No. 8 SCREWS
LIGHT
PANEL
(2) No. 8 SCREWS
8 Rotate baffle.
Reinsert baffle into
air chute (as shown)
so that baffle fits
all the way into air
chute. A “click” will
be heard when fully
installed.
This will direct
air flow through
the non-ducted
slots on top
of hood.
9 Reinstall air chute and screw, reconnect wire harness, and
replace light panel.
SLOTS
7 Remove Baffle
from air chute.
Tabs will
disengage
from Slots.
SUPPORT FIN
TABS
BAFFLE
»
»
»
»
NOTE Be careful not to trap wires between Support Fin and
light panel.
6 Remove Air
Chute - held in
place with one (1)
screw.
NOTE Be careful not
to disconnect
any wires.
