Oki B410 User Manual

Appendix C Maintenance Manual for Second Tray unit
43984801TH Rev.1
148 /
Oki Data CONFIDENTIAL
3.2 Arrangement of Parts

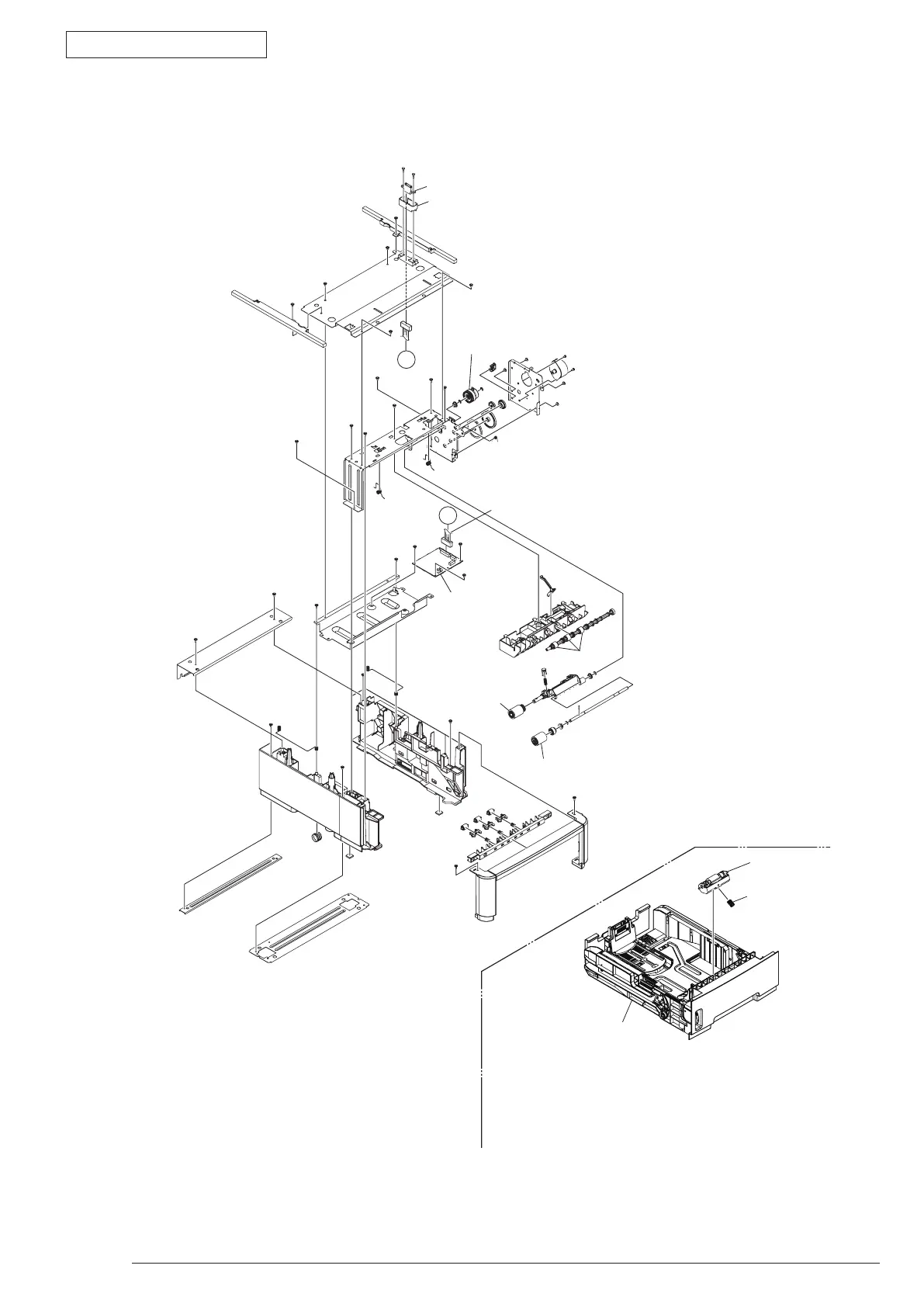

The arrangement of main parts is as shown in the following figure.
Figure 3-1
Connector(9715S-08Z02-G4C)
Guard-Connector
Gear-Assy-Clatch
Roller-Feed-Now
Roller-Pick-Up
Roller-Feed
A
A
Cassette-Assy
Frame-Assy-Retard
Spring-Retard
Board-OT7
CONN Cord-AMP8P-AHP8P

Oki B410 Specifications

General

Print Technology	LED
Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Duplex Printing	Manual
Maximum Paper Size	A4
Operating Systems Supported	Windows, Mac OS
Power Consumption	450W (average)
Output Capacity	150 sheets
