3. Parts replacement

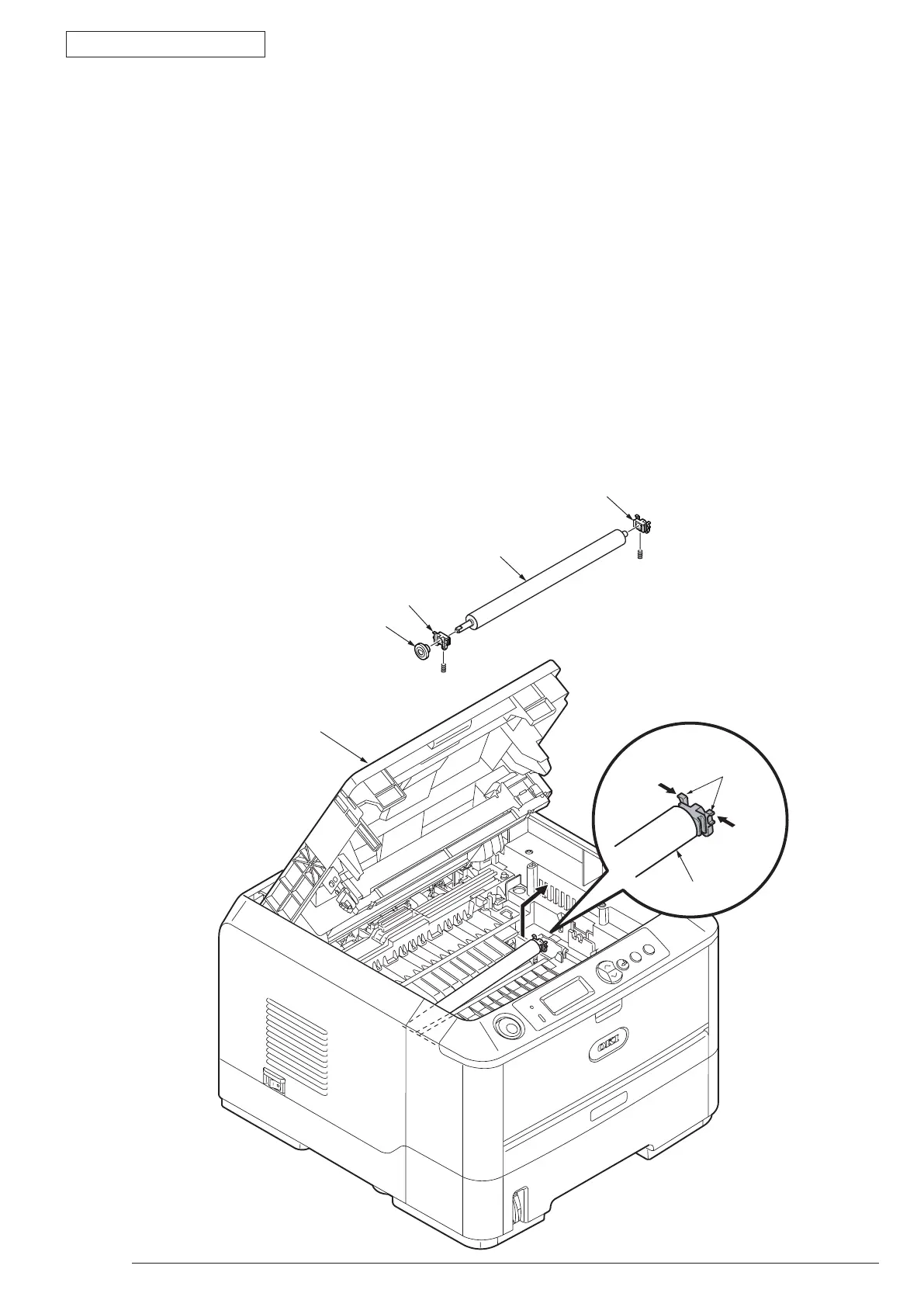

3.3.2 Roller-Transfer
(1) As the power switch shut off, unplug the AC power cord from the inlet of main unit.
(2) Open the Stack-Cover –Assy
(3) Remove latches in the 2 places of Gear-TR
③
and Bearing-TR
❶
on the conversing side. (Do not add
any unnecessary pressure while removing the latch.)
(4) S
lightly slide the Roller-transfer
❷
to the right side and remove the post on the top of gear from the
contact of Frame-Assy-Lower. Remove the latches on the 2 places of Gearing-TR
❶
of Gear.
(5) H
old the Bearing-TR
❶
on the both side, and then lift up the Roller-Transfer
❷
. (At this moment, Gear-
TR
③
is also removed.)
(6) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
2. While installing, pay attention to the up-and-down direction of Bearing-TR
❶．
3. O
perating carefully, not to touch Roller-Transfer
❷
surface.
Stacker-Cover-Assy
Latch
③
❶
②
❷
❶

Oki B410 Specifications

General

Print Technology	LED
Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Duplex Printing	Manual
Maximum Paper Size	A4
Operating Systems Supported	Windows, Mac OS
Power Consumption	450W (average)
Output Capacity	150 sheets
