Olympus CX43 User Manual

14
1

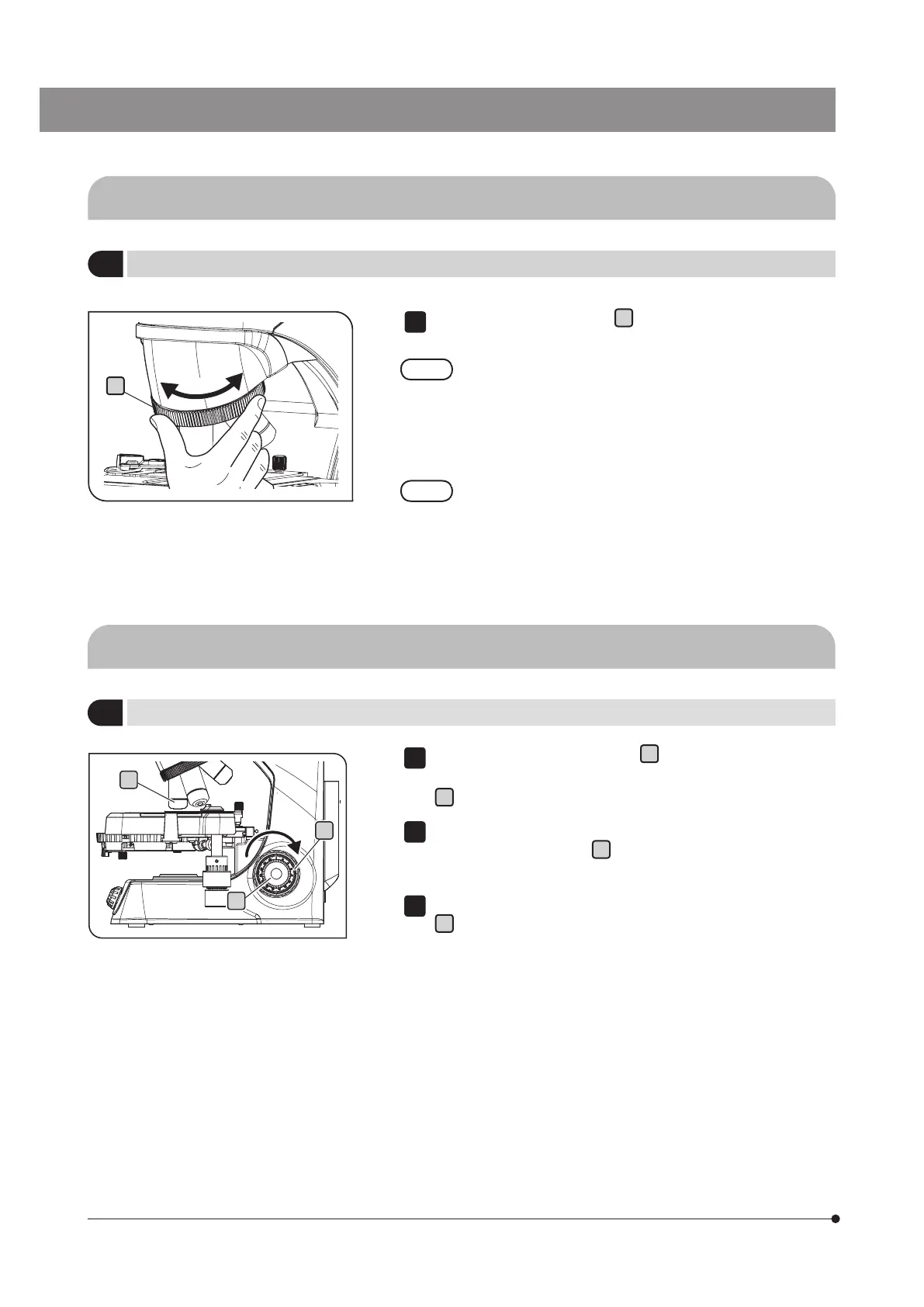

Focusing on the specimen
Rotate the coarse focusing knob
a
in clockwise direction (arrow
direction) facing the microscope from right side to move the objective
c
to the specimen as close as possible.
While observing the specimen through the eyepieces, slowly rotate
the coarse focusing knob
a
in the direction opposite to the arrow
direction to lower the stage.
When the specimen comes into view, rotate the fine focusing knob
b
to bring the specimen into focus precisely.
1
2
3
4-4 Focusing portion
4-3 Revolving nosepiece portion
1
Selecting the objective
Hold the revolving nosepiece
a
and rotate it so that the intended
objective comes exactly above the specimen.
· Do not rotate the revolving nosepiece by holding the
objective.
· Be careful if you rotate the revolving nosepiece while
observing the edge of the slide glass with the high
magnification objective (40X, etc.), the objective may
interfere with the specimen holder.
For attaching and removing the objectives, see page 40.
1
NOTE
TIP
c
a
b
a

Olympus CX43 Specifications

General

Category	Microscope
Type	Biological Microscope
Illumination	LED
Focus	Coaxial coarse and fine focus knobs
Optical System	UIS2 optical system
Power Supply	AC 100-240V, 50/60 Hz
Observation Method	Brightfield
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Condenser	Abbe condenser (N.A. 1.25)
Nosepiece	Revolving nosepiece with 4 positions
