Olympus CX43 User Manual

19
CX43

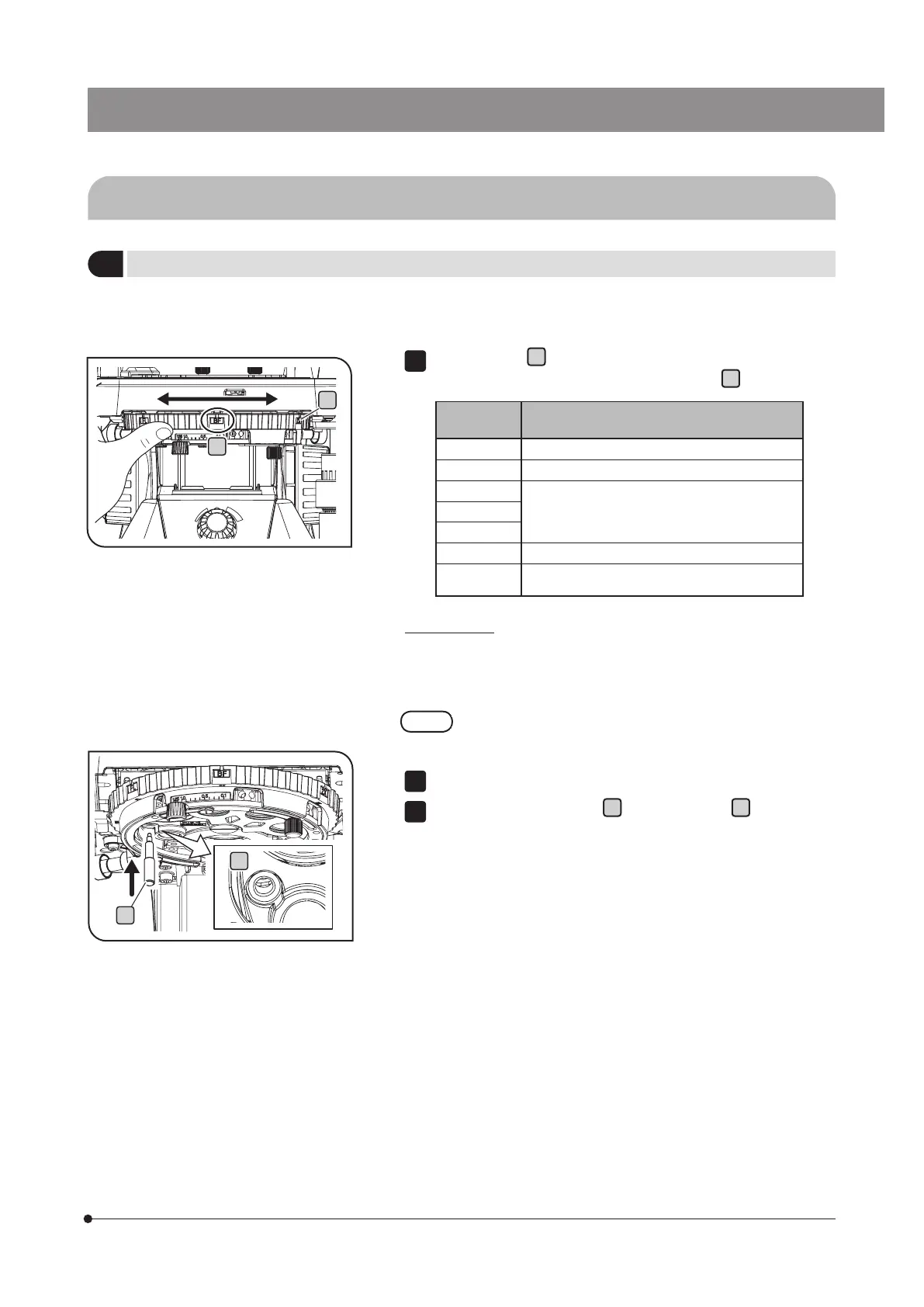

4-6 Condenser portion
1
Selecting the observation method
Rotating the turret of the condenser allows you to select the observation
method.
Rotate the turret
a
to select the observation method from the following
table (Display of turret) and display it on the front
b
.
Display of
turret
Observation method
BF Brightfield observation (see page 7)
DF Darkfield observation (see page 7)
Ph1
Phase contrast observation (see page 23)Ph2
Ph3
FL Fluorescence observation
2X
Brightfield observation
( Select when using 2X objective.).
Fixing the turret
If no observation method other than the brightfield observation is selected,
the turret can be fixed so that it does not move from the BF position
unexpectedly.
The turret can be fixed with the stage fixing knob (see
page 12). Both the stage and turret cannot be fixed at the
same time.
Rotate the turret to select BF (brightfield observation).
Screw the stage fixing knob
a
in the screw hole
b
at the back of
the condenser and fix it.
1
NOTE
1
2
a
b
a
b

Olympus CX43 Specifications

General

Category	Microscope
Type	Biological Microscope
Illumination	LED
Focus	Coaxial coarse and fine focus knobs
Optical System	UIS2 optical system
Power Supply	AC 100-240V, 50/60 Hz
Observation Method	Brightfield
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Condenser	Abbe condenser (N.A. 1.25)
Nosepiece	Revolving nosepiece with 4 positions
