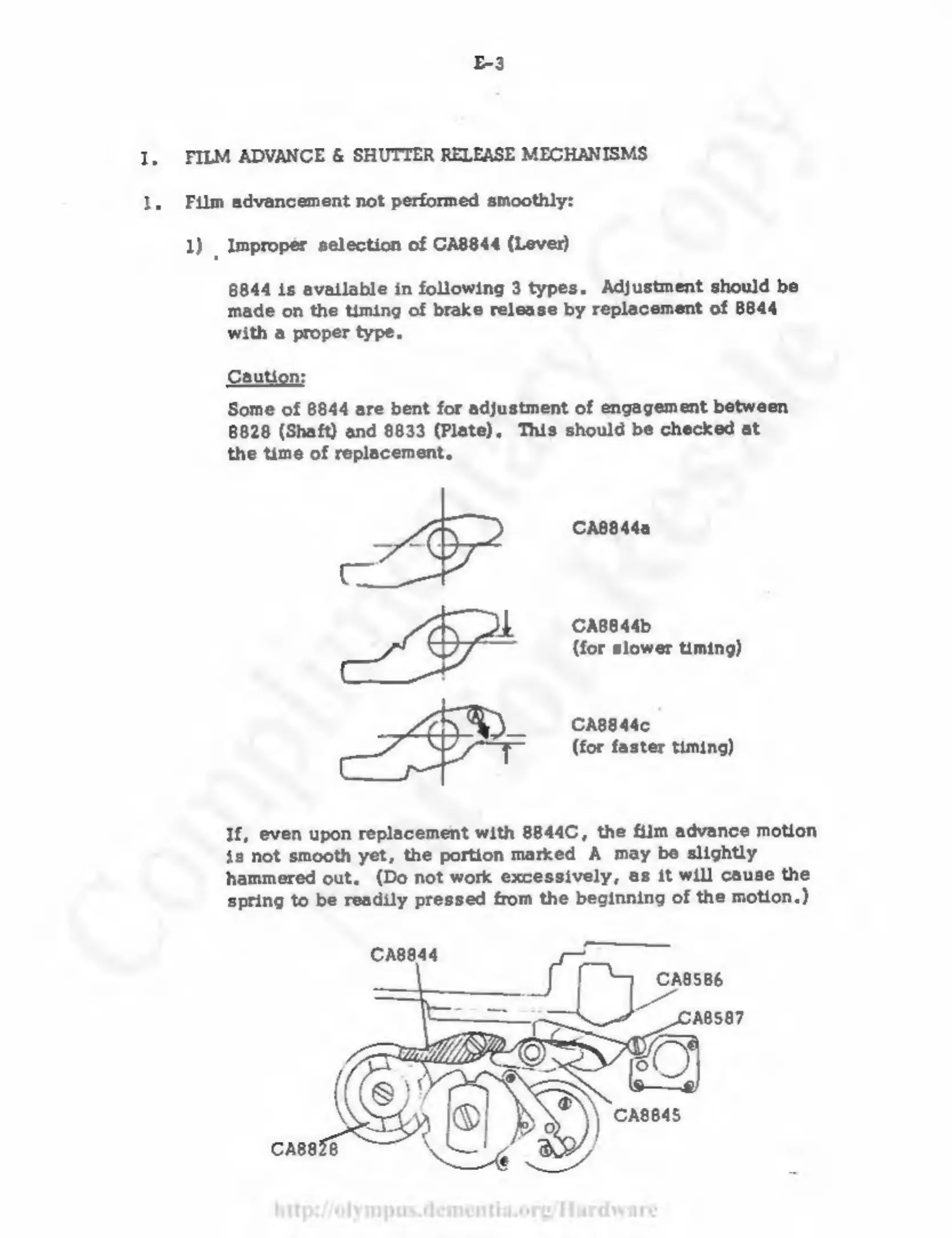

Olympus OM-1 User Manual

FILM
ADVANCE
&
SHUTTER
RELEASE
MECHANISMS
Film
advancement
not
performed
smoothly:
1)
,
Improper
selection
of
CAB844
(Lever)
8844
1s
avatlable
in
following
3
types.
Adjustment
should
be
made
on
the
timing
of
brake
release
by
replacement
of
8844
with
a
proper
type.
Caution:
Some
of
8844
are
bent
for
adjustment
of
engagement
between
8828
(Shaft)
and
8833
(Plate).
This
should
be
checked
at
the
time
of
replacement.
CA8844a
Cc
4 САВВА4Ь
(for slower timing)
CAB844c
(for faster timing)
If,
even
upon
replacement
with
8844C,
the
film
advance
motion
1s
not
smooth
yet,
the
portion
marked
A
may
be
slightly
hammered
out,
(Do
not
work
excessively,
as
it
will
cause
the
spring
to
be
readily
pressed
from
the
beginning
of
the
motion.)
