3 Remove the flat-blade screwdriver from the release hole.
3
After you make a connection, make sure that the twisted wire or the solid wire is securely connected to
the terminal block.
Precautions for Safe Use
• Make sure that all wiring is correct.
• Do not bend the cable forcibly
. Doing so may break the cable.
5-1-8

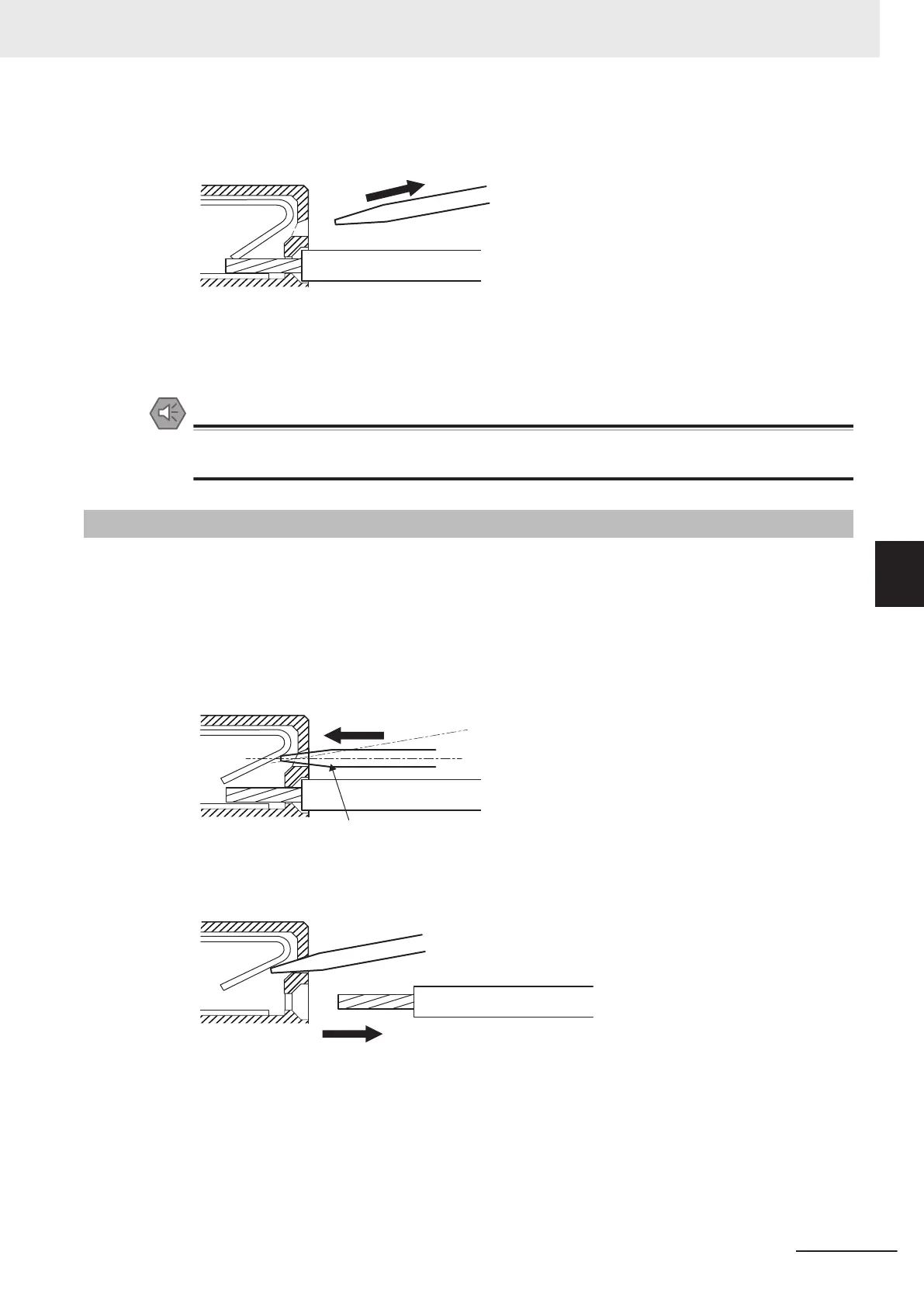

Removing Wires
Use the following procedure to remove the wires from the terminal block.
The removal method is the same for ferrules, twisted wires, and solid wires.
1 Press a flat-blade screwdriver straight into the release hole.
If you press in the screwdriver correctly, you will feel the spring in the release hole, and the
screw driver will begin to incline.
1
Wire
Flat-blade screwdriver
2 Leave the flat-blade screwdriver pressed into the release hole and pull out the wire.
2
3 Remove the flat-blade screwdriver from the release hole.
5 Wiring
5-5
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-1 Power Supply Wiring
5
5-1-8 Removing Wires
