For single-ended input
FG FG
Input 0- to 7-
AGND
Input 0+ to 7+
• If any of Input 0- to Input 7- is single ended input, apply a
short-circuit between the input and AGND.
• Use a shielded cable and ground at both ends of the ca-
ble.
Power consumption CK3W-AD3100: 5 V 0.9 W max., 24 V 2.0 W max.
CK3W-AD2100: 5 V 0.9 W max., 24 V 1.4 W max.
Dimensions (height × depth × width) 90(H)/80(D)/31.6(W)
W
eight CK3W-AD3100: 140 g max.
CK3W-AD2100: 120 g max.
*1. Differential input and single-ended input can be mixed in a Unit.
3-5-2

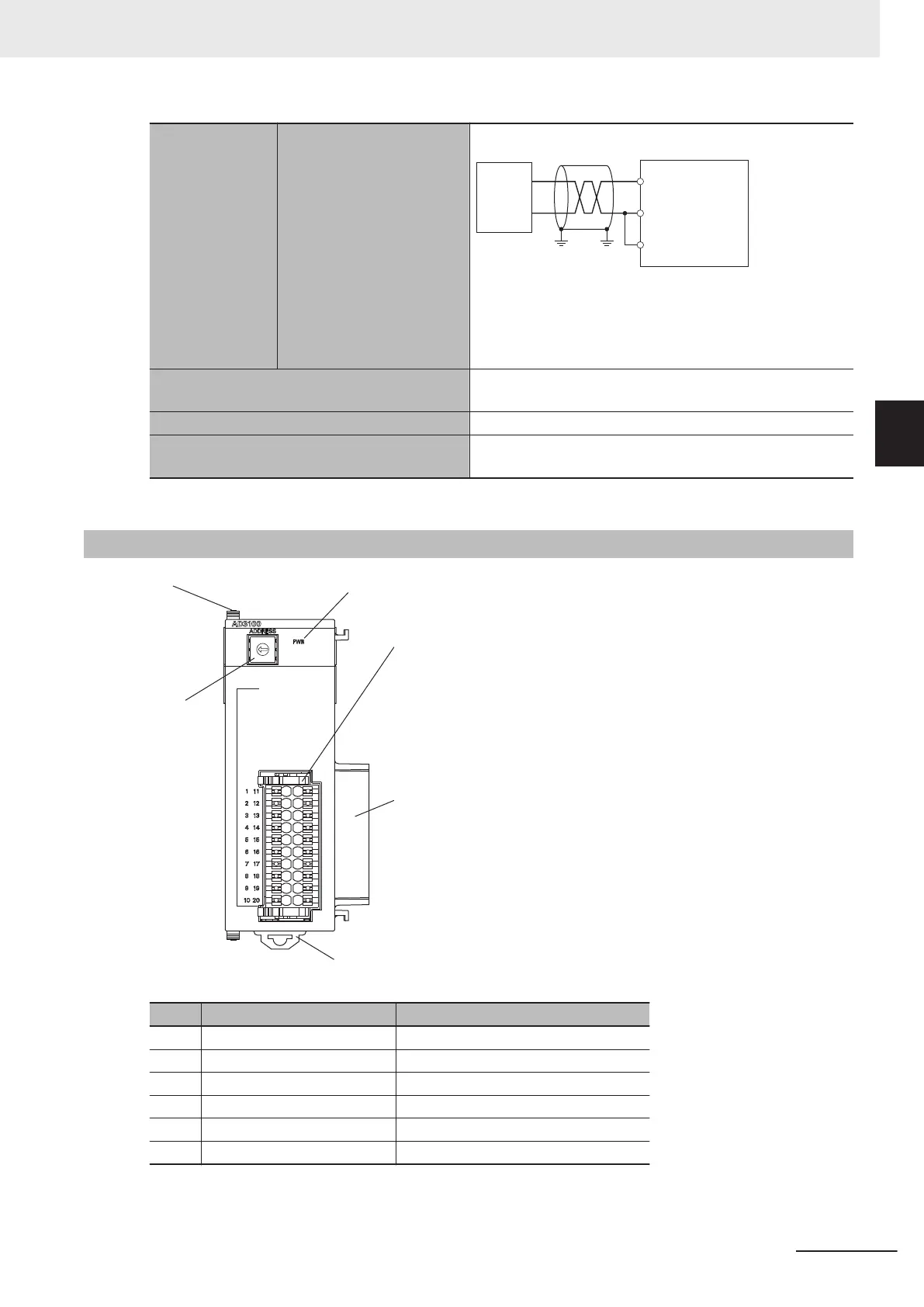

Part Names and Functions
(A)
(F)
(B)
(C)
(D)
(E)
Letter Name Function
A Slider Holds the Units together.
B Power supply status indicator Shows the power supply status.
C Terminal block Connects the analog input.
D Unit connector Connector that connects to the Unit.
E DIN Track mounting hook Used to mount the Unit to a DIN Track.
F Address switch Sets the Gate3 Index.
3 Configuration Units
3-55
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-5 Analog Input Unit
3
3-5-2 Part Names and Functions
