4
E3NC

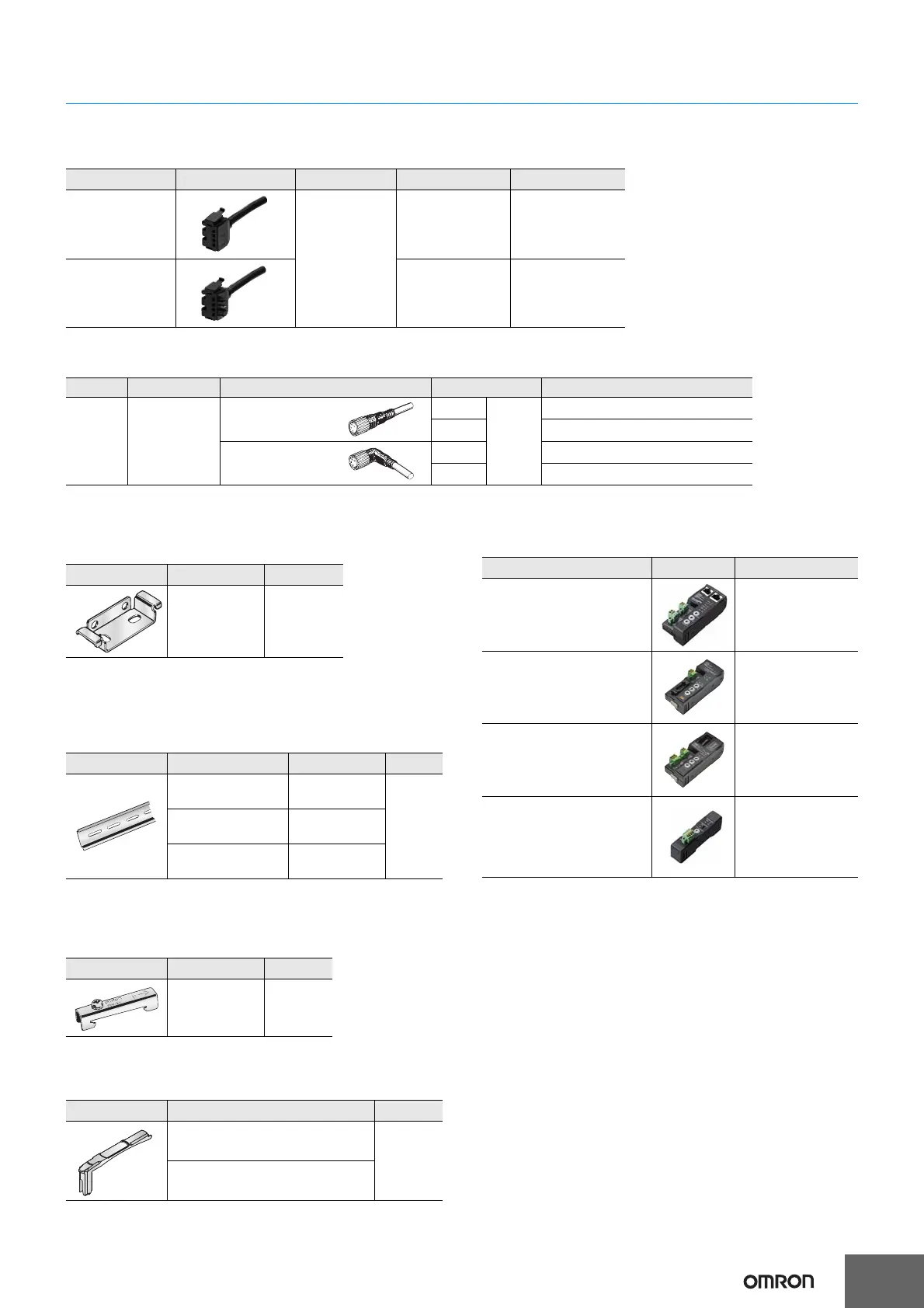

Amplifier Unit Accessories
Wire-saving Connectors (Required for models for Wire-saving Connectors.) (Dimensions ➜ page 26)
Connectors are
not provided with the Amplifier Unit and must be ordered separately. *Protective stickers are provided.
Sensor I/O Connectors (Required for models for M8 Connectors.) (Dimensions ➜ page 26)
Connectors are not provided with the Amplifier Unit and must be ordered separately.
Note: For details, refer to XS3 which can be accessed from your OMRON website.
Amplifier Unit Mounting Bracket (Dimensions ➜ page 27)
A Mounting Bracket is not provided with the Amplifier Unit. It
must be ordered separately as required.
Note: For details, refer to Mounting Brackets on E39-L/E39-S/E39-R
which can be accessed from your OMRON website.
DIN Track (Dimensions ➜ page 27)
A DIN Track is not provided with the Amplifier Unit. It must be
ordered separately as required.
End Plate (Dimensions ➜ page 27)
Two End Plates are provided with the Sensor Communications Unit.
End Plates are not provided with the Amplifier Unit. They must
be ordered separately as required.
Cover
Attach these Covers to Amplifier Units.
Order a Cover when required, e.g., if you lose the covers.
Related Products
Sensor Communications Units
Refer to your OMRON website for details.
* The Distributed Sensor Unit can be connected to any of the Sensor Commu-
nications Units.
EtherCAT
®
is a registered trademark and patented tech-
nology, licensed by Beckhoff Automation GmbH, Germa-
ny.
CompoNet is a registered trademark of the ODVA.
CC-Link is a registered trademark of Mitsubishi Electric
Corporation. The trademark is managed by the CC-Link
Partner Association.
Type Appearance Cable length No. of conductors Model
Master Connector
2 m
4 E3X-CN21
Slave Connector 2 E3X-CN22
Size Cable Appearance Cable type Model
M8 Standard cable
2 m
4-wire
XS3F-M421-402-A
5 m XS3F-M421-405-A
2 m XS3F-M422-402-A
5 m XS3F-M422-405-A
Appearance Model Quantity
E39-L143 1
Appearance Type Model
Quantity
Shallow type, total
length: 1 m
PFP-100N
1
Shallow type, total
length: 0.5m
PFP-50N
Deep type, total
length: 1 m
PFP-100N2
Appearance Model Quantity
PFP-M 1
Appearance Model Quantity
E39-G24 FOR E3NC-LA
1
E39-G21 FOR E3NC-SA
Type Appearance Model
Sensor Communications Unit
for EtherCAT
E3NW-ECT
Sensor Communications Unit
for CompoNet
E3NW-CRT
Sensor Communications Unit
for CC-Link
E3NW-CCL
Distributed Sensor Unit
* E3NW-DS
To Next Page
