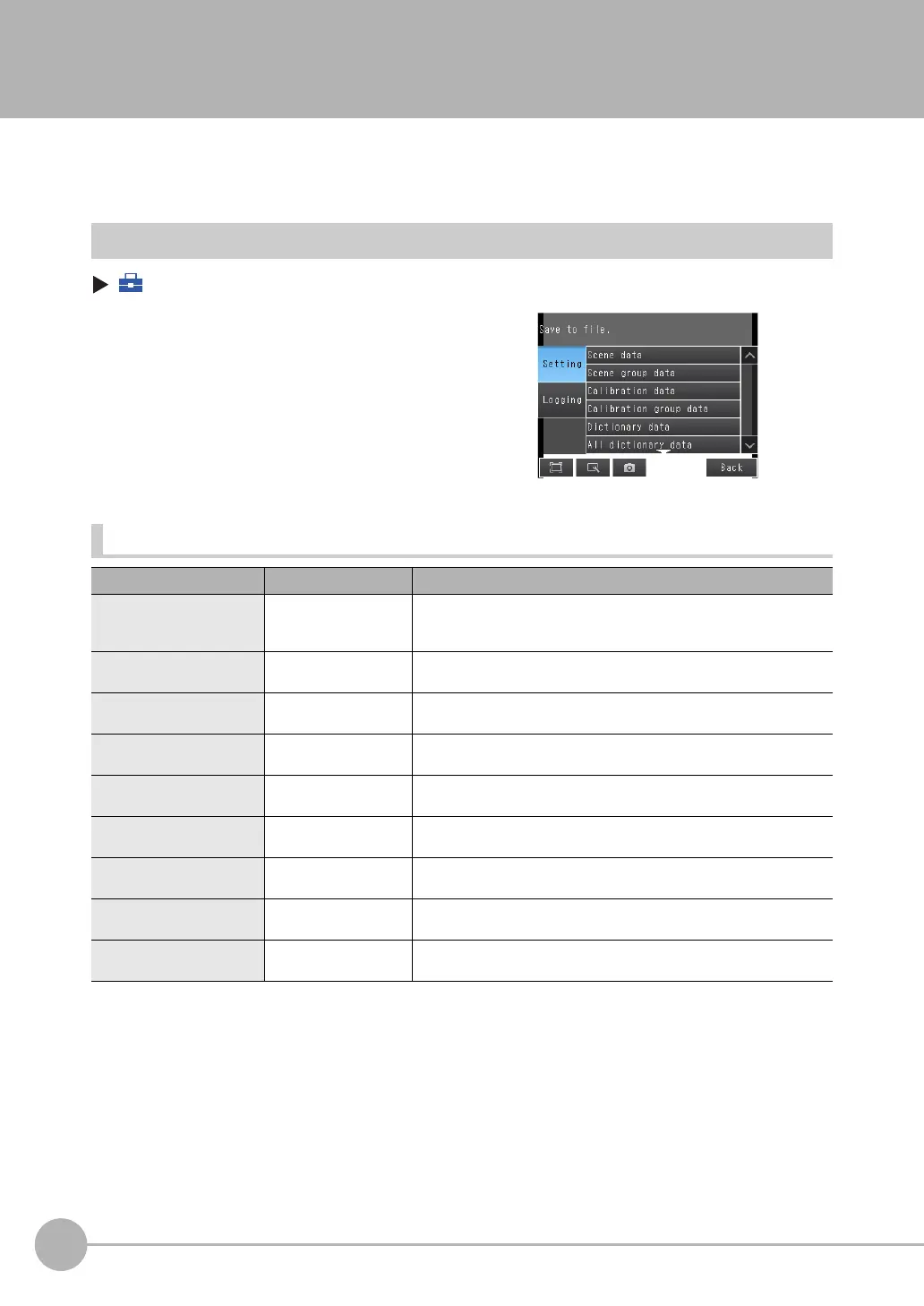

7-7 Saving Sensor Settings
The Sensor settings are saved in flash memory inside the Sensor.
This section describes how to back up the settings in and restore them from an SD card or other external
memory.
Backing Up Settings in External Memory
(Setup Mode) − [Save to file] − [Setting] Tab Page
Applicable Data
*1 For the PC Tool, data will be saved in the following folder: \\..\My Documents\OMRON FQ
1 Press the data to save.
2
Enter the file name in 15 characters or less.
After entering the file name, press [OK]. The data will be
saved and the display will return to [Save to file].
Data Storage location
*1
Description
Scene data (The file name
extension is SCN.)
\sensor_name\SCN The following data is backed up for each scene.
• Settings for all inspection items
• Order of inspection items
Scene group data (The file
name extension is SGP.)
\sensor_name\SGP All scene data is backed up.
Dictionary data (The file name
extension is DIC.)
\sensor_name\DIC Dictionary data is backed up.
All dictionary data (The file
name extension is DGP.)
\sensor_name\DGP All dictionary data is backed up.
Sensor system data (The file
name extension is SYD.)
\sensor_name\SYD All system data in the Sensor is backed up.
The system data is the same for all scenes.
All Sensor data (The file
name extension is BKD.)
\sensor_name\BKD All settings in the Sensor (all scene data, Sensor system data, and calibra-
tion group data) are backed up.
Touch Finder data (The file
name extension is MSD.)
\MSD All settings in the Touch Finder are backed up.
Calibration data (file name
extension: CLB)
--- The calibration settings for each scene are backed up.
Calibration group data (file
name extension: CGP)
--- The calibration settings for all scenes are backed up.
To Next Page
