Counters

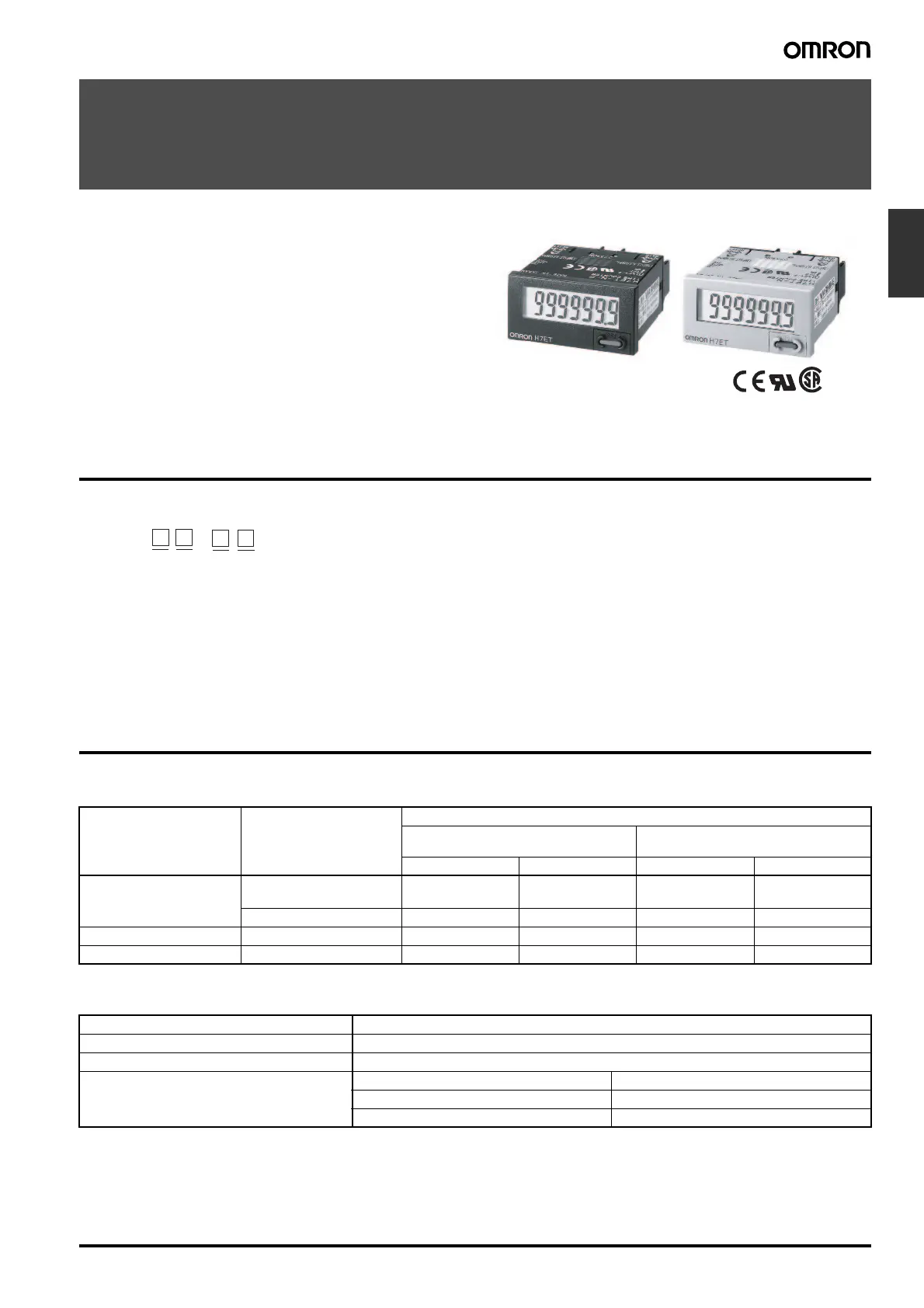

Self-powered Time Counter
H7ET
• Seven digits, time range 0 to 3999d23.9h.
• Dual time range: 999999.9
←→
3999d23.9h or
999h59m59s
←→
9999h59.9m
Model Number Structure
■
Model Number Legend
Ordering Information
■
Time Counters
■
Accessories (Order Separately)
Note:
The New H7E models are supplied with a Y92F-34 Mounting Bracket.
1 2 3 4
H7ET - N -
1. Count Input
2. Time Range
3. Case Color
4. Display
None: No-voltage input
V: PNP/NPN universal DC voltage input
FV: AC/DC multi-voltage input
None: 999999.9h/3999d23.9h
1: 999h59m59s/9999h59.9m
None: Light gray
B: Black
None: 7-segment LCD without backlight
H: 7-segment LCD with backlight
Timer input Display Time range
999999.9h
←→
3999d23.9h
(switchable)
999h59min59s
←→
9999h59.9min
(switchable)
Light-gray body Black body Light-gray body Black body
PNP/NPN universal DC volt-
age input
7-segment LCD with back-
light
H7ET-NV-H H7ET-NV-BH H7ET-NV1-H H7ET-NV1-BH
7-segment LCD H7ET-NV H7ET-NV-B H7ET-NV1 H7ET-NV1-B
AC/DC multi-voltage input 7-segment LCD H7ET-NFV H7ET-NFV-B H7ET-NFV1 H7ET-NFV1-B
No-voltage input 7-segment LCD H7ET-N H7ET-N-B H7ET-N1 H7ET-N1-B
Lithium Battery
Y92S-36
Wire-wrap Terminal (set of two terminals)
Y92S-37
Compact Flush Mounting Bracket (See note.)
Y92F-35
Flush Mounting Adapter
26 mm
×
45.3 mm Y92F-75
27.5 mm
×
52.5 mm Y92F-76
24.8 mm
×
48.8 mm Y92F-77B
