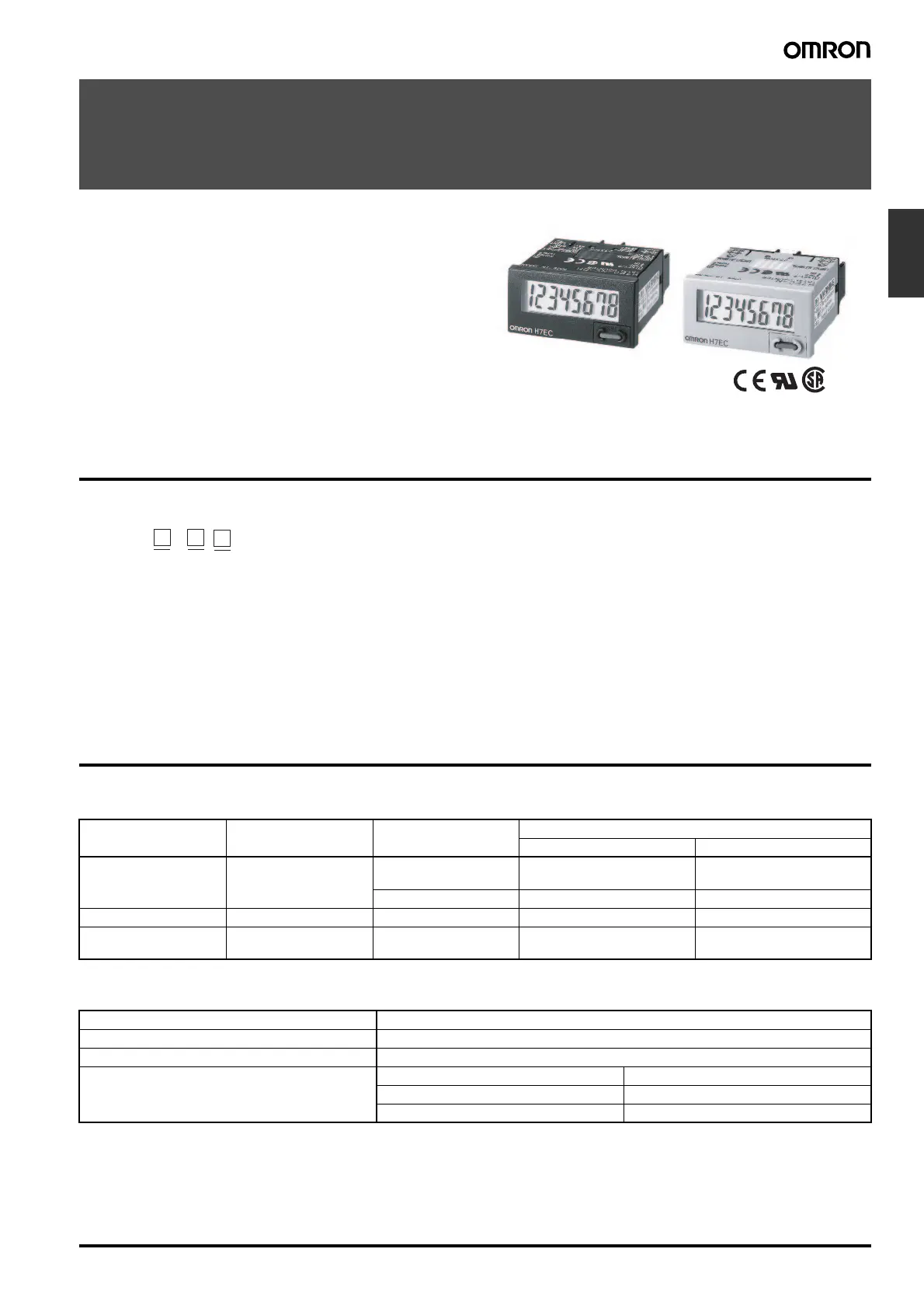

Self-powered Total Counter
H7EC
C-9
Counters
Self-powered Total Counter
H7EC
• Eight-digits, counting range 0 to 99999999.
• Dual input speed: 30 Hz
←→
1 kHz (except for AC/DC multi-
voltage input models)
Model Number Structure
■
Model Number Legend
Ordering Information
■
Total Counters
■
Accessories (Order Separately)
Note:
The New H7E models are supplied with a Y92F-34 Mounting Bracket.
1 2 3
H7EC - N -
1. Count Input
2. Case Color
3. Display
None: No-voltage input
V: PNP/NPN universal DC voltage input
FV: AC/DC multi-voltage input
None: Light gray
B: Black
None: 7-segment LCD without backlight
H: 7-segment LCD with backlight
Count input Max. counting speed Display Model
Light-gray body Black body
PNP/NPN universal DC
voltage input
30 Hz
←→
1 kHz
(switchable)
7-segment LCD with
backlight
H7EC-NV-H H7EC-NV-BH
7-segment LCD H7EC-NV H7EC-NV-B
AC/DC multi-voltage input 20 Hz 7-segment LCD H7EC-NFV H7EC-NFV-B
No-voltage 30 Hz
←→
1 kHz
(switchable)
7-segment LCD H7EC-N H7EC-N-B
Lithium Battery
Y92S-36
Wire-wrap Terminal (set of two Terminals)
Y92S-37
Compact Flush Mounting Bracket (See note.)
Y92F-35
Flush Mounting Adapter
26 mm
×
45.3 mm Y92F-75
27.5 mm
×
52.5 mm Y92F-76
24.8 mm
×
48.8 mm Y92F-77B
