Through-beam Sensor Heads: T Mode Functions Section 3-7
75
3-7 Through-beam Sensor Heads:
T Mode Functions
3-7-1 Teaching
“Teaching” is used to perform calculations in the Sensor to automatically
determine the threshold values by creating an actual operating environ-
ment and detecting objects. After teaching, the threshold values can be
precisely adjusted or teaching can be performed as many times as
required.
There are three kinds of teaching: Position teaching, two-point teaching,
and automatic teaching.
Refer to 4-4-1 Teaching Procedures.
Position Teaching
When teaching is executed, the measured value is set as a threshold.

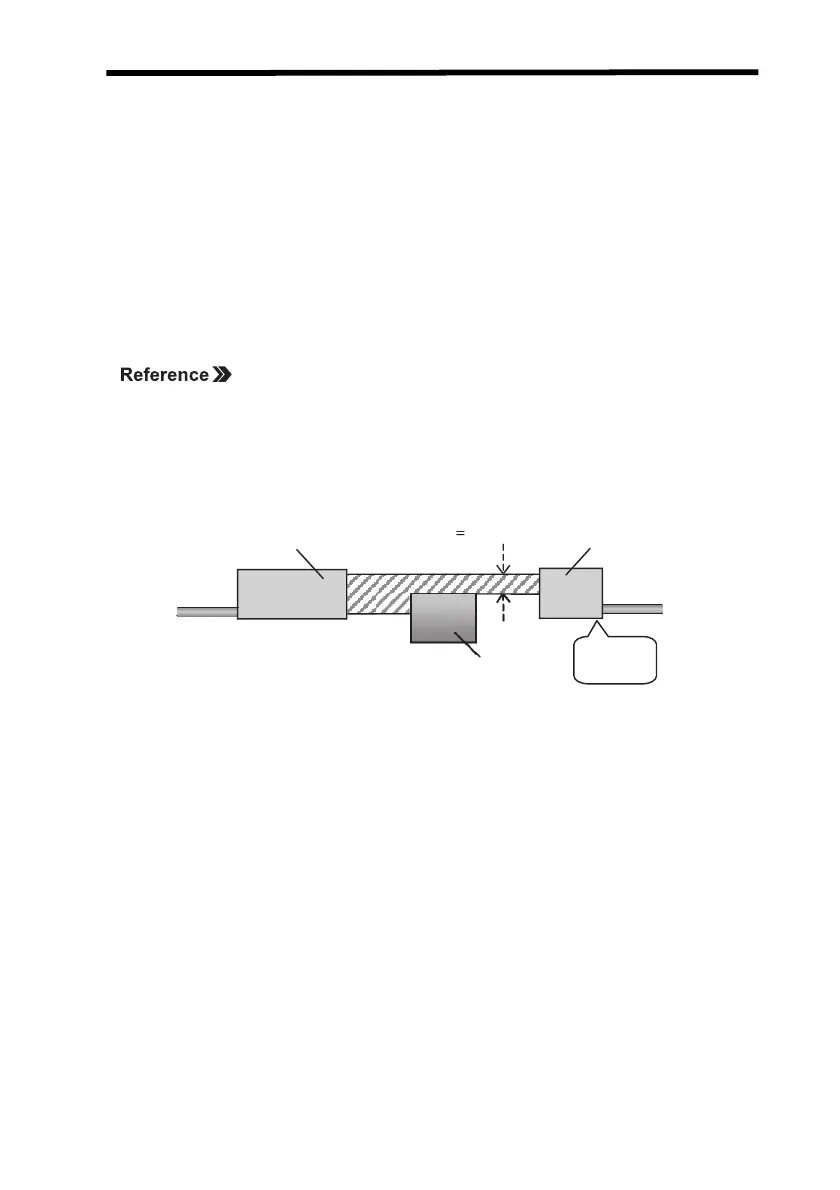

Example: Position Teaching
ensor Head Emitte
Teaching value
Press
ENT Key.
the
ensor Head Receive
Sensing object
