Omron ZX2 Series Short Manual

ZX2 Short Manual.doc Page 2 of 12
1 Safety precautions and correct use
Please refer to the full ZX2 user manual for the detailed explanations of the safety
precautions and the correct use.

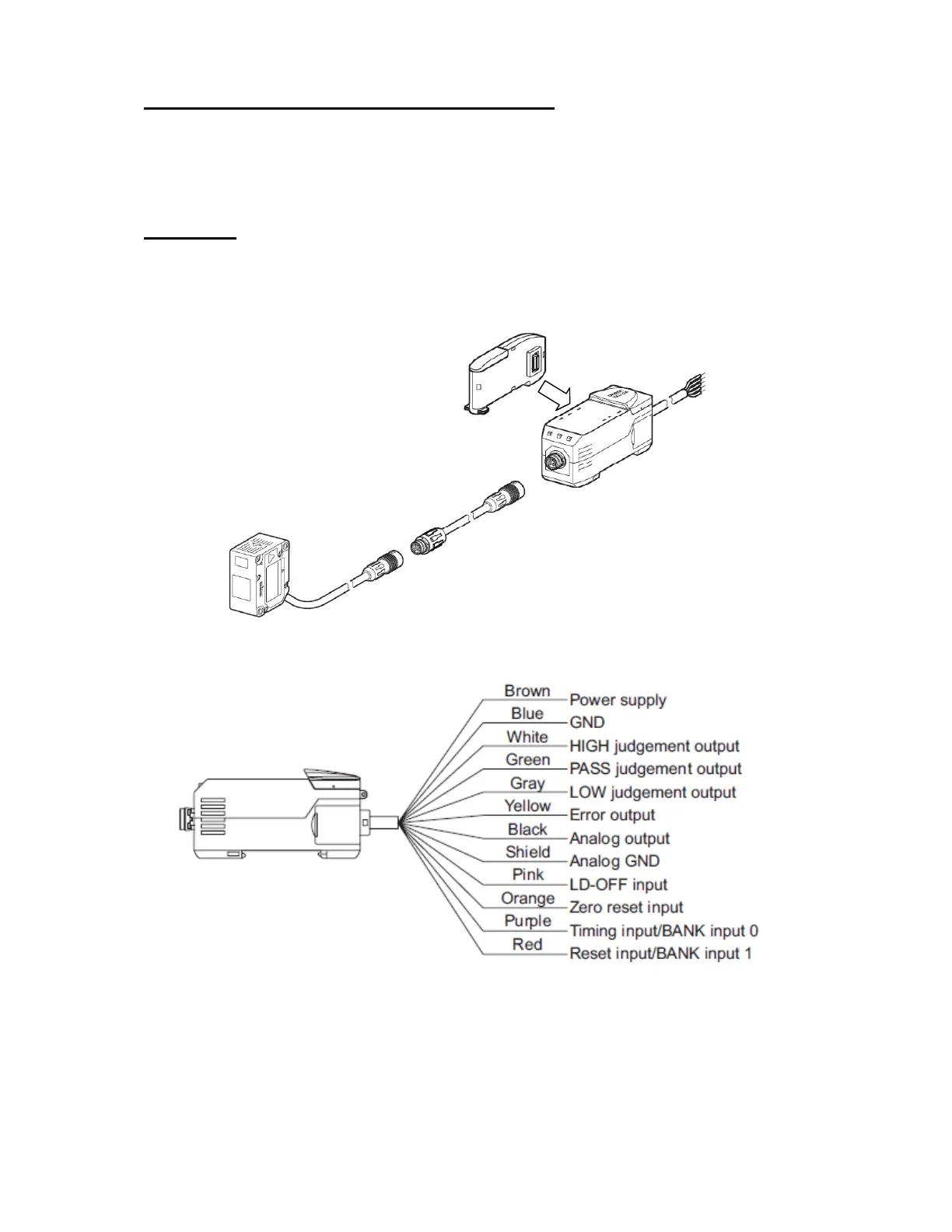

2 Wiring
Amplifier
Calculation unit (required
for systems with 2 or more
amplifiers)
Extension cable
(optional, max. 1
piece)
Sensor head
(
10V - 30
V
DC
)
 The HIGH judgement output is switched on if the measurement value is bigger
than the HIGH Threshold value.
 The LOW judgement output is switched on if the meansurement value is
smaller than the LOW Threshold value.
 The PASS judgement output is switched on if the measurement value is
between the the Low and Hi
g
h Threshold values.
