Onan CCKB User Manual

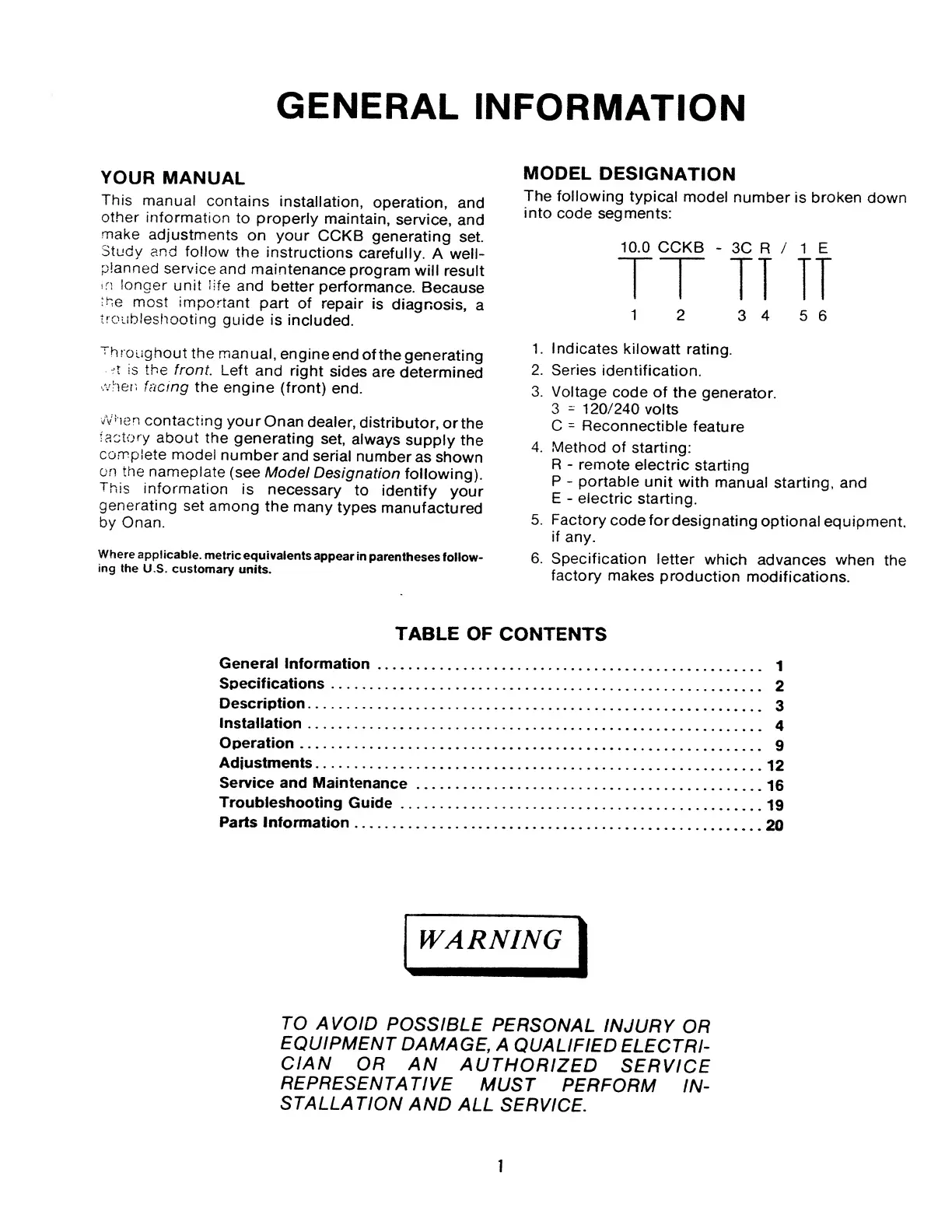

GENERAL INFORMATION
YOUR MANUAL
This manual contains installation, operation, and
other information to properly maintain, service, and
make adjustments on your CCKB generating set.
Study and follo\w the instructions carefully. A well-
planned service and maintenance program will result
in longer unit life and better performance. Because
ihe most important part of repair is diagnosis, a
troubleshooting guide is included.
MODEL DESIGNATION
The following typical model number is broken down
into code segments:
10.0 CCKB
1 2
3C R / 1 E
TI IT
3 4 5 6
throughout the manual, engine end of the generating
;t is the front. Left and right sides are determined
'.'her. facing the engine (front) end.
vVhen contacting yourOnan dealer, distributor, orthe
factory about the generating set, always supply the
complete model number and serial number as shown
on the nameplate (see Model Designation following).
This information is necessary to identify your
generating set among the many types manufactured
by Onan.
Where applicable, metric equivalents appear in parentheses follow-
ing the U S. customary units.
1. Indicates kilowatt rating.
2. Series identification.
3. Voltage code of the generator.
3 - 120/240 volts
C = Reconnectible feature
4. Method of starting:
R - remote electric starting
P - portable unit with manual starting, and
E - electric starting.
5. Factory code for designating optional equipment,
if any.
6. Specification letter which advances when the
factory makes production modifications.
TABLE OF CONTENTS
General Information. 1
Specifications. 2
Description. 3
Installation. 4
Operation. 9
Adjustments.12
Service and Maintenance.16
Troubleshooting Guide.19
Parts Information.20
WARNING
TO AVOID POSSIBLE PERSONAL INJURY OR
EQUIPMENT DAMAGE, A QUALIFIED ELECTRI¬
CIAN OR AN AUTHORIZED SERVICE
REPRESENTATIVE MUST PERFORM IN¬
STALLATION AND ALL SERVICE.
1
